OPC Studio User's Guide and Reference
UAEventData Class
Members  Example



OpcLabs.EasyOpcUA Assembly > OpcLabs.EasyOpc.UA Namespace : UAEventData Class
Contains event notification information.

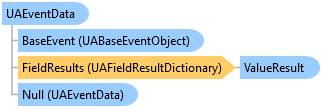

Object Model
UAEventData ClassUABaseEventObject ClassUAFieldResultDictionary ClassValueResult ClassUAEventData Class
Syntax
'Declaration


<CLSCompliantAttribute(True)>
<ComDefaultInterfaceAttribute(OpcLabs.EasyOpc.UA.ComTypes._UAEventData)>
<ComVisibleAttribute(True)>
<GuidAttribute("907185B4-264D-4838-AC2E-F68E36B01845")>
<TypeConverterAttribute(System.ComponentModel.ExpandableObjectConverter)>
<ValueControlAttribute("OpcLabs.BaseLib.Forms.Common.ObjectSerializationControl, OpcLabs.BaseLibForms, Version=5.81.455.1, Culture=neutral, PublicKeyToken=6faddca41dacb409",
   DefaultReadWrite=False,
   Export=True,
   PageId=10001)>
<SerializableAttribute()>
Public Class UAEventData
   Inherits OpcLabs.BaseLib.Info
   Implements LINQPad.ICustomMemberProvider, OpcLabs.BaseLib.ComTypes._Info, OpcLabs.BaseLib.ComTypes._Object2, OpcLabs.EasyOpc.UA.ComTypes._UAEventData, System.ICloneable, System.Runtime.Serialization.ISerializable, System.Xml.Serialization.IXmlSerializable
'Usage


Dim instance As UAEventData
[CLSCompliant(true)]
[ComDefaultInterface(OpcLabs.EasyOpc.UA.ComTypes._UAEventData)]
[ComVisible(true)]
[Guid("907185B4-264D-4838-AC2E-F68E36B01845")]
[TypeConverter(System.ComponentModel.ExpandableObjectConverter)]
[ValueControl("OpcLabs.BaseLib.Forms.Common.ObjectSerializationControl, OpcLabs.BaseLibForms, Version=5.81.455.1, Culture=neutral, PublicKeyToken=6faddca41dacb409",
   DefaultReadWrite=false,
   Export=true,
   PageId=10001)]
[Serializable()]
public class UAEventData : OpcLabs.BaseLib.Info, LINQPad.ICustomMemberProvider, OpcLabs.BaseLib.ComTypes._Info, OpcLabs.BaseLib.ComTypes._Object2, OpcLabs.EasyOpc.UA.ComTypes._UAEventData, System.ICloneable, System.Runtime.Serialization.ISerializable, System.Xml.Serialization.IXmlSerializable
[CLSCompliant(true)]
[ComDefaultInterface(OpcLabs.EasyOpc.UA.ComTypes._UAEventData)]
[ComVisible(true)]
[Guid("907185B4-264D-4838-AC2E-F68E36B01845")]
[TypeConverter(System.ComponentModel.ExpandableObjectConverter)]
[ValueControl("OpcLabs.BaseLib.Forms.Common.ObjectSerializationControl, OpcLabs.BaseLibForms, Version=5.81.455.1, Culture=neutral, PublicKeyToken=6faddca41dacb409",
   DefaultReadWrite=false,
   Export=true,
   PageId=10001)]
[Serializable()]
public ref class UAEventData : public OpcLabs.BaseLib.Info, LINQPad.ICustomMemberProvider, OpcLabs.BaseLib.ComTypes._Info, OpcLabs.BaseLib.ComTypes._Object2, OpcLabs.EasyOpc.UA.ComTypes._UAEventData, System.ICloneable, System.Runtime.Serialization.ISerializable, System.Xml.Serialization.IXmlSerializable
Remarks

When an OPC UA Alarms & Conditions server generates an event, the EasyUAClient object generates an  EventNotification event. For subscription mechanism to be useful, you should hook one or more event handlers to this event. This event is raised for every event generated by a subscribed OPC monitored item.

To be more precise, the EventNotification event is actually generated in other cases, too - if there is any significant occurrence related to the event subscription. This can be for three reasons:

  1. You receive the EventNotification when a successful connection (or re-connection) is made. In this case, the Exception and EventData properties of the event arguments are null references.
  2. You receive the EventNotification when there is a problem with the event subscription, and it is disconnected. In this case, the Exception property contains information about the error. The EventData property is a null reference.
  3. You receive one additional EventNotification when the component is about to send you notifications for condition refresh, and one additional EventNotification after the component has sent you all notifications for the condition refresh. In these cases, the RefreshInitiated or RefreshComplete property of the event arguments is set to 'true', and the Exception and EventData properties contain null references.

The notification for the EventNotification event contains an EasyUAEventNotificationEventArgs argument. You will find all kind of relevant data in this object. Some properties in this object contain valid information under all circumstances - e.g. Arguments (including Arguments.State). Other properties, such as EventData, contain null references when there is no associated information for them. When the EventData property is not a null reference, it contains a UAEventData object describing the detail of the actual OPC event received from the OPC UA Alarms & Conditions server.

Before further processing, your code should always inspect the value of Exception property of the event arguments. If this property is not a null reference, there has been an error related to the event subscription, the Exception property contains information about the problem, and the EventData property does not contain a valid object.

If the Exception property is a null reference, the notification may be informing you about the fact that a condition refresh is being initiated or is complete (in this case, the RefreshInitiated or RefreshComplete property is 'true'), or that an event subscription has been successfully connected or re-connected (in this case, the EventData property is a null reference). If none of the previous applies, the EventData property contains a valid UAEventData object with details about the actual OPC event generated by the OPC server.

Pseudo-code for the full EventNotification event handler may look similar to this:

if notificationEventArgs.Exception is not null then

        An error occurred and the subscription is disconnected, handle it (or ignore)

else if notificationEventArgs.RefreshInitiated then

        A “refresh” has been initiated; handle it

else if notificationEventArgs.RefreshComplete then

        A “refresh” is complete; handle it

else if notificationEventArgs.EventData is null then

        Subscription has been successfully connected or re-connected, handle it (or ignore)

else

        Handle the OPC event, details are in notificationEventArgs.EventData. You may use notificationEventArgs.Refresh flag for distinguishing refreshes from original notifications.

The EventNotification event handler is called on a thread determined by the EasyUAClient component. For details, please refer to “Multithreading and Synchronization” chapter under “Advanced Topics”.

The arguments of each event notification (EasyUAEventNotificationEventArgs) have an EventData property (of type UAEventData, described further below), which contains details about the OPC UA event. In addition, common information such as the copy of the input arguments to the subscription, i.e. identification of the endpoint and node (monitored item) which has generated the event, is included. The Exception property (and several related properties) indicates success (when it is a null reference), or a failure (in which case it contains an exception object describing the error).

The UAEventData object contains details about an OPC UA event, i.e. the information that the OPC UA server sends with the event notification. Primarily, it has a FieldResults property, which is a dictionary containing results for each of the fields in the select clauses of the event filter. Each field results is a ValueResult object, i.e. it can either contain the actual value, or an error indication.

.NET

// This example shows how to display all fields of incoming events, or extract specific fields.
//
// Find all latest examples here: https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .
// OPC client and subscriber examples in C# on GitHub: https://github.com/OPCLabs/Examples-QuickOPC-CSharp .
// Missing some example? Ask us for it on our Online Forums, https://www.opclabs.com/forum/index ! You do not have to own
// a commercial license in order to use Online Forums, and we reply to every post.

using System;
using System.Collections.Generic;
using OpcLabs.BaseLib.OperationModel;
using OpcLabs.EasyOpc.UA;
using OpcLabs.EasyOpc.UA.AddressSpace.Standard;
using OpcLabs.EasyOpc.UA.AlarmsAndConditions;
using OpcLabs.EasyOpc.UA.Filtering;
using OpcLabs.EasyOpc.UA.OperationModel;

namespace UADocExamples.AlarmsAndConditions
{
    class FieldResults
    {
        public static void Main1()
        {
            UAEndpointDescriptor endpointDescriptor =
                "opc.tcp://opcua.demo-this.com:62544/Quickstarts/AlarmConditionServer";

            // Instantiate the client object and hook events.
            var client = new EasyUAClient();
            client.EventNotification += client_EventNotification;

            Console.WriteLine("Subscribing...");
            client.SubscribeEvent(endpointDescriptor, UAObjectIds.Server, 1000);

            Console.WriteLine("Processing event notifications for 30 seconds...");
            System.Threading.Thread.Sleep(30 * 1000);

            Console.WriteLine("Unsubscribing...");
            client.UnsubscribeAllMonitoredItems();

            Console.WriteLine("Waiting for 5 seconds...");
            System.Threading.Thread.Sleep(5 * 1000);

            Console.WriteLine("Finished.");
        }

        static void client_EventNotification(object sender, EasyUAEventNotificationEventArgs e)
        {
            Console.WriteLine();

            // Display the event.
            if (e.EventData is null)
            {
                Console.WriteLine(e);
                return;
            }
            Console.WriteLine("All fields:");
            foreach (KeyValuePair<UAAttributeField, ValueResult> pair in e.EventData.FieldResults)
            {
                UAAttributeField attributeField = pair.Key;
                ValueResult valueResult = pair.Value;
                Console.WriteLine("  {0} -> {1}", attributeField, valueResult);
            }

            // Extracting a specific field using a standard operand symbol.
            Console.WriteLine($"Source name: {e.EventData.FieldResults[UABaseEventObject.Operands.SourceName]}");

            // Extracting a specific field using an event type ID and a simple relative path.
            Console.WriteLine(
                $"Message: {e.EventData.FieldResults[UAFilterElements.SimpleAttribute(UAObjectTypeIds.BaseEventType, "/Message")]}");
        }


        // Example output (truncated):
        //Subscribing...
        //Processing event notifications for 30 seconds...
        //
        //[] Success
        //
        //[] Success; Refresh; RefreshInitiated
        //
        //All fields:
        //  NodeId="BaseEventType", NodeId -> Success; nsu=http://opcfoundation.org/Quickstarts/AlarmCondition ;ns=2;s=1:Colours/EastTank?OnlineState {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
        //  NodeId="BaseEventType"/EventId -> Success; [16] {95, 68, 22, 205, 114, ...} {System.Byte[]}
        //  NodeId="BaseEventType"/EventType -> Success; DialogConditionType {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
        //  NodeId="BaseEventType"/SourceNode -> Success; nsu=http://opcfoundation.org/Quickstarts/AlarmCondition ;ns=2;s=1:Colours/EastTank {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
        //  NodeId="BaseEventType"/SourceName -> Success; EastTank {System.String}
        //  NodeId="BaseEventType"/Time -> Success; 9/10/2019 8:08:23 PM {System.DateTime}
        //  NodeId="BaseEventType"/ReceiveTime -> Success; 9/10/2019 8:08:23 PM {System.DateTime}
        //  NodeId="BaseEventType"/LocalTime -> Success; 00:00, DST {OpcLabs.EasyOpc.UA.UATimeZoneData}
        //  NodeId="BaseEventType"/Message -> Success; The dialog was activated {System.String}
        //  NodeId="BaseEventType"/Severity -> Success; 100 {System.Int32}
        //Source name: Success; EastTank {System.String}
        //Message: Success; The dialog was activated {System.String}
        //
        //All fields:
        //  NodeId="BaseEventType", NodeId -> Success; nsu=http://opcfoundation.org/Quickstarts/AlarmCondition ;ns=2;s=1:Colours/EastTank?Red {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
        //  NodeId="BaseEventType"/EventId -> Success; [16] {124, 156, 219, 54, 120, ...} {System.Byte[]}
        //  NodeId="BaseEventType"/EventType -> Success; ExclusiveDeviationAlarmType {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
        //  NodeId="BaseEventType"/SourceNode -> Success; nsu=http://opcfoundation.org/Quickstarts/AlarmCondition ;ns=2;s=1:Colours/EastTank {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
        //  NodeId="BaseEventType"/SourceName -> Success; EastTank {System.String}
        //  NodeId="BaseEventType"/Time -> Success; 10/14/2019 4:00:13 PM {System.DateTime}
        //  NodeId="BaseEventType"/ReceiveTime -> Success; 10/14/2019 4:00:13 PM {System.DateTime}
        //  NodeId="BaseEventType"/LocalTime -> Success; 00:00, DST {OpcLabs.EasyOpc.UA.UATimeZoneData}
        //  NodeId="BaseEventType"/Message -> Success; The alarm was acknoweledged. {System.String}
        //  NodeId="BaseEventType"/Severity -> Success; 500 {System.Int32}
        //Source name: Success; EastTank {System.String}
        //Message: Success; The alarm was acknoweledged. {System.String}
        //
        //...
    }
}

# This example shows how to display all fields of incoming events, or extract specific fields.
#
# Find all latest examples here: https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .
# OPC client and subscriber examples in PowerShell on GitHub: https://github.com/OPCLabs/Examples-QuickOPC-PowerShell .
# Missing some example? Ask us for it on our Online Forums, https://www.opclabs.com/forum/index ! You do not have to own
# a commercial license in order to use Online Forums, and we reply to every post.

#requires -Version 5.1
using namespace OpcLabs.BaseLib.OperationModel
using namespace OpcLabs.EasyOpc.UA
using namespace OpcLabs.EasyOpc.UA.AddressSpace
using namespace OpcLabs.EasyOpc.UA.AddressSpace.Standard
using namespace OpcLabs.EasyOpc.UA.AlarmsAndConditions
using namespace OpcLabs.EasyOpc.UA.Filtering

# The path below assumes that the current directory is [ProductDir]/Examples-NET/PowerShell/Windows .
Add-Type -Path "../../../Components/Opclabs.QuickOpc/net472/OpcLabs.EasyOpcUA.dll"
Add-Type -Path "../../../Components/Opclabs.QuickOpc/net472/OpcLabs.EasyOpcUAComponents.dll"

# Define which server we will work with.
[UAEndpointDescriptor]$endpointDescriptor = "opc.tcp://opcua.demo-this.com:62544/Quickstarts/AlarmConditionServer"

# Instantiate the client object.
$client = New-Object EasyUAClient

# Event notification handler
Register-ObjectEvent -InputObject $client -EventName EventNotification -Action {
    Write-Host

    # Display the event.
    if ($EventArgs.EventData -eq $null) {
        Write-Host $EventArgs
        return
    }
    Write-Host "All fields:"
    foreach ($pair in $EventArgs.EventData.FieldResults.GetEnumerator()) {
        [UAAttributeField]$attributeField = $pair.Key
        [ValueResult]$valueResult = $pair.Value
        Write-Host "  $($attributeField) -> $($valueResult)"
    }

    # Extracting a specific field using a standard operand symbol.
    Write-Host "Source name: $($EventArgs.EventData.FieldResults[[UABaseEventObject+Operands]::SourceName])"

    # Extracting a specific field using an event type ID and a simple relative path.
    Write-Host `
        "Message: $($EventArgs.EventData.FieldResults[[UAFilterElements]::SimpleAttribute([UAObjectTypeIds]::BaseEventType, "/Message")])"
}

Write-Host "Subscribing..."
[IEasyUAClientExtension]::SubscribeEvent($client, $endpointDescriptor, [UAObjectIds]::Server, 1000)

Write-Host "Processing event notifications for 30 seconds..."
$stopwatch =  [System.Diagnostics.Stopwatch]::StartNew()
while ($stopwatch.Elapsed.TotalSeconds -lt 30) {
    Start-Sleep -Seconds 1
}

Write-Host "Unsubscribing..."
$client.UnsubscribeAllMonitoredItems()

Write-Host "Waiting for 5 seconds..."
Start-Sleep -Seconds 5

Write-Host "Finished."


# Example output (truncated):
#Subscribing...
#Processing event notifications for 30 seconds...
#
#[] Success
#
#[] Success; Refresh; RefreshInitiated
#
#All fields:
#  NodeId="BaseEventType", NodeId -> Success; nsu=http:#opcfoundation.org/Quickstarts/AlarmCondition ;ns=2;s=1:Colours/EastTank?OnlineState {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
#  NodeId="BaseEventType"/EventId -> Success; [16] {95, 68, 22, 205, 114, ...} {System.Byte[]}
#  NodeId="BaseEventType"/EventType -> Success; DialogConditionType {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
#  NodeId="BaseEventType"/SourceNode -> Success; nsu=http:#opcfoundation.org/Quickstarts/AlarmCondition ;ns=2;s=1:Colours/EastTank {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
#  NodeId="BaseEventType"/SourceName -> Success; EastTank {System.String}
#  NodeId="BaseEventType"/Time -> Success; 9/10/2019 8:08:23 PM {System.DateTime}
#  NodeId="BaseEventType"/ReceiveTime -> Success; 9/10/2019 8:08:23 PM {System.DateTime}
#  NodeId="BaseEventType"/LocalTime -> Success; 00:00, DST {OpcLabs.EasyOpc.UA.UATimeZoneData}
#  NodeId="BaseEventType"/Message -> Success; The dialog was activated {System.String}
#  NodeId="BaseEventType"/Severity -> Success; 100 {System.Int32}
#Source name: Success; EastTank {System.String}
#Message: Success; The dialog was activated {System.String}
#
#All fields:
#  NodeId="BaseEventType", NodeId -> Success; nsu=http:#opcfoundation.org/Quickstarts/AlarmCondition ;ns=2;s=1:Colours/EastTank?Red {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
#  NodeId="BaseEventType"/EventId -> Success; [16] {124, 156, 219, 54, 120, ...} {System.Byte[]}
#  NodeId="BaseEventType"/EventType -> Success; ExclusiveDeviationAlarmType {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
#  NodeId="BaseEventType"/SourceNode -> Success; nsu=http:#opcfoundation.org/Quickstarts/AlarmCondition ;ns=2;s=1:Colours/EastTank {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
#  NodeId="BaseEventType"/SourceName -> Success; EastTank {System.String}
#  NodeId="BaseEventType"/Time -> Success; 10/14/2019 4:00:13 PM {System.DateTime}
#  NodeId="BaseEventType"/ReceiveTime -> Success; 10/14/2019 4:00:13 PM {System.DateTime}
#  NodeId="BaseEventType"/LocalTime -> Success; 00:00, DST {OpcLabs.EasyOpc.UA.UATimeZoneData}
#  NodeId="BaseEventType"/Message -> Success; The alarm was acknoweledged. {System.String}
#  NodeId="BaseEventType"/Severity -> Success; 500 {System.Int32}
#Source name: Success; EastTank {System.String}
#Message: Success; The alarm was acknoweledged. {System.String}
#
#...


' This example shows how to display all fields of incoming events, or extract specific fields.
'
' Find all latest examples here: https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .
' OPC client and subscriber examples in VB.NET on GitHub: https://github.com/OPCLabs/Examples-QuickOPC-VBNET .
' Missing some example? Ask us for it on our Online Forums, https://www.opclabs.com/forum/index ! You do not have to own
' a commercial license in order to use Online Forums, and we reply to every post.

Imports OpcLabs.EasyOpc.UA
Imports OpcLabs.EasyOpc.UA.AddressSpace.Standard
Imports OpcLabs.EasyOpc.UA.AlarmsAndConditions
Imports OpcLabs.EasyOpc.UA.Filtering
Imports OpcLabs.EasyOpc.UA.OperationModel

Namespace AlarmsAndConditions
    Friend Class FieldResults
        Public Shared Sub Main1()
            ' Instantiate the client object and hook events
            Dim client = New EasyUAClient()
            AddHandler client.EventNotification, AddressOf client_EventNotification

            Console.WriteLine("Subscribing...")
            client.SubscribeEvent( _
                "opc.tcp://opcua.demo-this.com:62544/Quickstarts/AlarmConditionServer", _
                UAObjectIds.Server, _
                1000)

            Console.WriteLine("Processing event notifications for 30 seconds...")
            Threading.Thread.Sleep(30 * 1000)

            Console.WriteLine("Unsubscribing...")
            client.UnsubscribeAllMonitoredItems()

            Console.WriteLine("Waiting for 5 seconds...")
            Threading.Thread.Sleep(5 * 1000)
        End Sub

        Private Shared Sub client_EventNotification(ByVal sender As Object, ByVal e As EasyUAEventNotificationEventArgs)
            Console.WriteLine()

            ' Display the event
            If e.EventData Is Nothing Then
                Console.WriteLine(e)
                Exit Sub
            End If
            Console.WriteLine("All fields:")
            For Each pair In e.EventData.FieldResults
                Dim attributeField = pair.Key
                Dim valueResult = pair.Value
                Console.WriteLine("  {0} -> {1}", attributeField, valueResult)
            Next pair
            ' Extracting a specific field using a standard operand symbol
            Console.WriteLine("Source name: {0}", _
                e.EventData.FieldResults(UABaseEventObject.Operands.SourceName))
            ' Extracting a specific field using an event type ID and a simple relative path
            Console.WriteLine("Message: {0}", _
                e.EventData.FieldResults(UAFilterElements.SimpleAttribute(UAObjectTypeIds.BaseEventType, "/Message")))
        End Sub
    End Class
End Namespace

COM

// This example shows how to display all fields of incoming events, or extract specific fields.
//
// Find all latest examples here: https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .
// OPC client and subscriber examples in Object Pascal (Delphi) on GitHub: https://github.com/OPCLabs/Examples-QuickOPC-OP .
// Missing some example? Ask us for it on our Online Forums, https://www.opclabs.com/forum/index ! You do not have to own
// a commercial license in order to use Online Forums, and we reply to every post.

type
  THelperMethods15 = class
    class function ObjectTypeIds_BaseEventType: _UANodeId; static;
    class function UAFilterElements_SimpleAttribute(TypeId: _UANodeId; simpleRelativeBrowsePathString: string): _UASimpleAttributeOperand; static;
    class function UABaseEventObject_Operands_SourceName: _UASimpleAttributeOperand; static;
    class function UABaseEventObject_Operands_Message: _UASimpleAttributeOperand; static;
  end;

type
  TClientEventHandlers15 = class
    procedure Client_EventNotification(
      ASender: TObject;
      sender: OleVariant;
      const eventArgs: _EasyUAEventNotificationEventArgs);
  end;

procedure TClientEventHandlers15.Client_EventNotification(
  ASender: TObject;
  sender: OleVariant;
  const eventArgs: _EasyUAEventNotificationEventArgs);
var
  AttributeField: OleVariant;
  Count: Cardinal;
  Element: OleVariant;
  EntryEnumerator: IEnumVARIANT;
  ValueResult: OleVariant;
begin
  WriteLn;

  // Display the event
  if eventArgs.EventData = nil then
  begin
    WriteLn(eventArgs.ToString);
    Exit;
  end;

  WriteLn('All fields:');

  EntryEnumerator := eventArgs.EventData.FieldResults.GetEnumerator;
  while (EntryEnumerator.Next(1, Element, Count) = S_OK) do
  begin
    AttributeField := IUnknown(Element.Key) as _UAAttributeField;
    ValueResult := IUnknown(Element.Value) as _ValueResult;
    WriteLn('  ', AttributeField.ToString, ' -> ', ValueResult.ToString);
  end;

  // Extracting specific fields using an event type ID and a simple relative path
  WriteLn('Source name: ', eventArgs.EventData.FieldResults.Item[THelperMethods15.UABaseEventObject_Operands_SourceName.ToUAAttributeField].ToString);
  WriteLn('Message: ', eventArgs.EventData.FieldResults.Item[THelperMethods15.UABaseEventObject_Operands_Message.ToUAAttributeField].ToString);
end;

class procedure FieldResults.Main;
const
  UAObjectIds_Server = 'nsu=http://opcfoundation.org/UA/;i=2253';
var
  Client: TEasyUAClient;
  ClientEventHandlers: TClientEventHandlers15;
  EndpointDescriptor: string;
begin
  EndpointDescriptor := 'opc.tcp://opcua.demo-this.com:62544/Quickstarts/AlarmConditionServer';

  // Instantiate the client object and hook events
  Client := TEasyUAClient.Create(nil);
  ClientEventHandlers := TClientEventHandlers15.Create;
  Client.OnEventNotification := ClientEventHandlers.Client_EventNotification;

  WriteLn('Subscribing...');
  Client.SubscribeEvent(EndpointDescriptor, UAObjectIds_Server, 1000);

  WriteLn('Processing event notifications for 30 seconds...');
  PumpSleep(30*1000);

  WriteLn('Unsubscribing...');
  Client.UnsubscribeAllMonitoredItems;

  WriteLn('Waiting for 5 seconds...');
  Sleep(5*1000);

  WriteLn('Finished.');
  FreeAndNil(Client);
  FreeAndNil(ClientEventHandlers);
end;

// Example output (truncated):
//Subscribing...
//Processing event notifications for 30 seconds...
//
//[] Success
//
///[] Success; Refresh; RefreshInitiated
//
//All fields:
//  NodeId="BaseEventType", NodeId -> Success; nsu=http://opcfoundation.org/Quickstarts/AlarmCondition ;ns=2;s=1:Colours/EastTank?OnlineState {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
//  NodeId="BaseEventType"/EventId -> Success; [16] {95, 68, 22, 205, 114, ...} {System.Byte[]}
//  NodeId="BaseEventType"/EventType -> Success; DialogConditionType {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
//  NodeId="BaseEventType"/SourceNode -> Success; nsu=http://opcfoundation.org/Quickstarts/AlarmCondition ;ns=2;s=1:Colours/EastTank {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
//  NodeId="BaseEventType"/SourceName -> Success; EastTank {System.String}
//  NodeId="BaseEventType"/Time -> Success; 9/10/2019 8:08:23 PM {System.DateTime}
//  NodeId="BaseEventType"/ReceiveTime -> Success; 9/10/2019 8:08:23 PM {System.DateTime}
//  NodeId="BaseEventType"/LocalTime -> Success; 00:00, DST {OpcLabs.EasyOpc.UA.UATimeZoneData}
//  NodeId="BaseEventType"/Message -> Success; The dialog was activated {System.String}
//  NodeId="BaseEventType"/Severity -> Success; 100 {System.Int32}
//Source name: Success; EastTank {System.String}
//Message: Success; The dialog was activated {System.String}
//
//All fields:
//  NodeId="BaseEventType", NodeId -> Success; nsu=http://opcfoundation.org/Quickstarts/AlarmCondition ;ns=2;s=1:Colours/EastTank?Red {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
//  NodeId="BaseEventType"/EventId -> Success; [16] {124, 156, 219, 54, 120, ...} {System.Byte[]}
//  NodeId="BaseEventType"/EventType -> Success; ExclusiveDeviationAlarmType {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
//  NodeId="BaseEventType"/SourceNode -> Success; nsu=http://opcfoundation.org/Quickstarts/AlarmCondition ;ns=2;s=1:Colours/EastTank {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
//  NodeId="BaseEventType"/SourceName -> Success; EastTank {System.String}
//  NodeId="BaseEventType"/Time -> Success; 10/14/2019 4:00:13 PM {System.DateTime}
//  NodeId="BaseEventType"/ReceiveTime -> Success; 10/14/2019 4:00:13 PM {System.DateTime}
//  NodeId="BaseEventType"/LocalTime -> Success; 00:00, DST {OpcLabs.EasyOpc.UA.UATimeZoneData}
//  NodeId="BaseEventType"/Message -> Success; The alarm was acknoweledged. {System.String}
//  NodeId="BaseEventType"/Severity -> Success; 500 {System.Int32}
//Source name: Success; EastTank {System.String}
//Message: Success; The alarm was acknoweledged. {System.String}
//
//...

class function THelperMethods15.ObjectTypeIds_BaseEventType: _UANodeId;
  var NodeId: _UANodeId;
  begin
    NodeId := CoUANodeId.Create;
    NodeId.StandardName := 'BaseEventType';
    Result := NodeId;
  end;

class function THelperMethods15.UAFilterElements_SimpleAttribute(TypeId: _UANodeId; simpleRelativeBrowsePathString: string): _UASimpleAttributeOperand;
var
  BrowsePathParser: _UABrowsePathParser;
  Operand: _UASimpleAttributeOperand;
begin
  BrowsePathParser := CoUABrowsePathParser.Create;
  Operand := CoUASimpleAttributeOperand.Create;
  Operand.TypeId.NodeId := TypeId;
  Operand.QualifiedNames := BrowsePathParser.ParseRelative(simpleRelativeBrowsePathString).ToUAQualifiedNameCollection;
  Result := Operand;
end;

class function THelperMethods15.UABaseEventObject_Operands_SourceName: _UASimpleAttributeOperand;
begin
  Result := UAFilterElements_SimpleAttribute(ObjectTypeIds_BaseEventType, '/SourceName');
end;

class function THelperMethods15.UABaseEventObject_Operands_Message: _UASimpleAttributeOperand;
begin
  Result := UAFilterElements_SimpleAttribute(ObjectTypeIds_BaseEventType, '/Message');
end;

// This example shows how to display all fields of incoming events, or extract specific fields.
//
// Find all latest examples here: https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .
// OPC client and subscriber examples in PHP on GitHub: https://github.com/OPCLabs/Examples-QuickOPC-PHP .
// Missing some example? Ask us for it on our Online Forums, https://www.opclabs.com/forum/index ! You do not have to own
// a commercial license in order to use Online Forums, and we reply to every post.


class ClientEvents {
    function EventNotification($Sender, $E)
    {
        printf("\n");

        // Display the event
        if (is_null($E->EventData)) {
            printf("%s\n", $E);
            return;
        }

        printf("All fields:\n");

        foreach ($E->EventData->FieldResults as $Pair)
        {
            $AttributeField = $Pair->Key;
            $ValueResult = $Pair->Value;
            printf("  %s -> %s\n", $AttributeField, $ValueResult);
        }

        // Extracting specific fields using an event type ID and a simple relative path
        printf("Source name: %s\n", $E->EventData->FieldResults->Item(UABaseEventObject_Operands_SourceName()->ToUAAttributeField()));
        printf("Message: %s\n", $E->EventData->FieldResults->Item(UABaseEventObject_Operands_Message()->ToUAAttributeField()));
    }
}

const UAObjectIds_Server = "nsu=http://opcfoundation.org/UA/;i=2253";

$EndpointDescriptor = "opc.tcp://opcua.demo-this.com:62544/Quickstarts/AlarmConditionServer";

// Instantiate the client object and hook events
$Client = new COM("OpcLabs.EasyOpc.UA.EasyUAClient");
$ClientEvents = new ClientEvents();
com_event_sink($Client, $ClientEvents, "DEasyUAClientEvents");

printf("Subscribing...\n");
$Client->SubscribeEvent($EndpointDescriptor, UAObjectIds_Server, 1000);

printf("Processing event notifications for 30 seconds...\n");
$startTime = time(); do { com_message_pump(1000); } while (time() < $startTime + 30);

printf("Unsubscribing...\n");
$Client->UnsubscribeAllMonitoredItems;

printf("Waiting for 5 seconds...\n");
$startTime = time(); do { com_message_pump(1000); } while (time() < $startTime + 5);


function ObjectTypeIds_BaseEventType() {
    $NodeId = new COM("OpcLabs.EasyOpc.UA.AddressSpace.UANodeId");
    $NodeId->StandardName = "BaseEventType";
    return $NodeId;
}

function UAFilterElements_SimpleAttribute($TypeId, $simpleRelativeBrowsePathString) {
  $BrowsePathParser = new COM("OpcLabs.EasyOpc.UA.Navigation.Parsing.UABrowsePathParser");
  $Operand = new COM("OpcLabs.EasyOpc.UA.Filtering.UASimpleAttributeOperand");
  $Operand->TypeId->NodeId = $TypeId;
  $Operand->QualifiedNames = $BrowsePathParser->ParseRelative($simpleRelativeBrowsePathString)->ToUAQualifiedNameCollection;
  return $Operand;
}

function UABaseEventObject_Operands_SourceName() {
  return UAFilterElements_SimpleAttribute(ObjectTypeIds_BaseEventType(), "/SourceName");
}

function UABaseEventObject_Operands_Message() {
  return UAFilterElements_SimpleAttribute(ObjectTypeIds_BaseEventType(), "/Message");
}

// Example output (truncated):
//Subscribing...
//Processing event notifications for 30 seconds...
//
//[] Success
//
//[] Success; Refresh; RefreshInitiated
//
//All fields:
//  NodeId="BaseEventType", NodeId -> Success; nsu=http://opcfoundation.org/Quickstarts/AlarmCondition ;ns=2;s=1:Colours/EastTank?OnlineState {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
//  NodeId="BaseEventType"/EventId -> Success; [16] {95, 68, 22, 205, 114, ...} {System.Byte[]}
//  NodeId="BaseEventType"/EventType -> Success; DialogConditionType {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
//  NodeId="BaseEventType"/SourceNode -> Success; nsu=http://opcfoundation.org/Quickstarts/AlarmCondition ;ns=2;s=1:Colours/EastTank {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
//  NodeId="BaseEventType"/SourceName -> Success; EastTank {System.String}
//  NodeId="BaseEventType"/Time -> Success; 9/10/2019 8:08:23 PM {System.DateTime}
//  NodeId="BaseEventType"/ReceiveTime -> Success; 9/10/2019 8:08:23 PM {System.DateTime}
//  NodeId="BaseEventType"/LocalTime -> Success; 00:00, DST {OpcLabs.EasyOpc.UA.UATimeZoneData}
//  NodeId="BaseEventType"/Message -> Success; The dialog was activated {System.String}
//  NodeId="BaseEventType"/Severity -> Success; 100 {System.Int32}
//Source name: Success; EastTank {System.String}
//Message: Success; The dialog was activated {System.String}
//
//All fields:
//  NodeId="BaseEventType", NodeId -> Success; nsu=http://opcfoundation.org/Quickstarts/AlarmCondition ;ns=2;s=1:Colours/EastTank?Red {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
//  NodeId="BaseEventType"/EventId -> Success; [16] {124, 156, 219, 54, 120, ...} {System.Byte[]}
//  NodeId="BaseEventType"/EventType -> Success; ExclusiveDeviationAlarmType {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
//  NodeId="BaseEventType"/SourceNode -> Success; nsu=http://opcfoundation.org/Quickstarts/AlarmCondition ;ns=2;s=1:Colours/EastTank {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
//  NodeId="BaseEventType"/SourceName -> Success; EastTank {System.String}
//  NodeId="BaseEventType"/Time -> Success; 10/14/2019 4:00:13 PM {System.DateTime}
//  NodeId="BaseEventType"/ReceiveTime -> Success; 10/14/2019 4:00:13 PM {System.DateTime}
//  NodeId="BaseEventType"/LocalTime -> Success; 00:00, DST {OpcLabs.EasyOpc.UA.UATimeZoneData}
//  NodeId="BaseEventType"/Message -> Success; The alarm was acknoweledged. {System.String}
//  NodeId="BaseEventType"/Severity -> Success; 500 {System.Int32}
//Source name: Success; EastTank {System.String}
//Message: Success; The alarm was acknoweledged. {System.String}
//
//...


Rem This example shows how to display all fields of incoming events, or extract specific fields.
Rem
Rem Find all latest examples here: https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .
Rem OPC client and subscriber examples in VBScript on GitHub: https://github.com/OPCLabs/Examples-QuickOPC-VBScript .
Rem Missing some example? Ask us for it on our Online Forums, https://www.opclabs.com/forum/index ! You do not have to own
Rem a commercial license in order to use Online Forums, and we reply to every post.

Option Explicit

Const uaObjectIds_Server = "nsu=http://opcfoundation.org/UA/;i=2253"

Dim endpointDescriptor
endpointDescriptor = "opc.tcp://opcua.demo-this.com:62544/Quickstarts/AlarmConditionServer"

' Instantiate the client object and hook events
Dim Client: Set Client = CreateObject("OpcLabs.EasyOpc.UA.EasyUAClient")
WScript.ConnectObject Client, "Client_"

WScript.Echo "Subscribing..."
Client.SubscribeEvent endpointDescriptor, uaObjectIds_Server, 1000

WScript.Echo "Processing event notifications for 30 seconds..."
WScript.Sleep 30*1000

WScript.Echo "Unsubscribing..."
Client.UnsubscribeAllMonitoredItems

WScript.Echo "Waiting for 5 seconds..."
WScript.Sleep 5*1000




Function UAFilterElements_SimpleAttribute(TypeId, simpleRelativeBrowsePathString)
    Dim BrowsePathParser: Set BrowsePathParser = CreateObject("OpcLabs.EasyOpc.UA.Navigation.Parsing.UABrowsePathParser")
    Dim QualifiedNames: Set QualifiedNames = BrowsePathParser.ParseRelative(simpleRelativeBrowsePathString).ToUAQualifiedNAmeCollection

    Dim SimpleAttributeOperand: Set SimpleAttributeOperand = CreateObject("OpcLabs.EasyOpc.UA.Filtering.UASimpleAttributeOperand")
    Set SimpleAttributeOperand.TypeId.NodeId = TypeId
    Set SimpleAttributeOperand.QualifiedNames = QualifiedNames

    Set UAFilterElements_SimpleAttribute = SimpleAttributeOperand
End Function

Function ObjectTypeIds_BaseEventType
    Dim NodeId: Set NodeId = CreateObject("OpcLabs.EasyOpc.UA.AddressSpace.UANodeId")
    NodeId.StandardName = "BaseEventType"
    Set ObjectTypeIds_BaseEventType = NodeId
End Function

Function UABaseEventObject_Operands_Message
    Set UABaseEventObject_Operands_Message = UAFilterElements_SimpleAttribute(ObjectTypeIds_BaseEventType, "/Message")
End Function

Function UABaseEventObject_Operands_SourceName
    Set UABaseEventObject_Operands_SourceName = UAFilterElements_SimpleAttribute(ObjectTypeIds_BaseEventType, "/SourceName")
End Function

Sub Client_EventNotification(Sender, e)
    WScript.Echo

    ' Display the event
    If e.EventData Is Nothing Then
        WScript.Echo e
        Exit Sub
    End If
    WScript.Echo "All fields:"
    Dim Pair: For Each Pair In e.EventData.FieldResults
        Dim AttributeField: Set AttributeField = Pair.Key
        Dim ValueResult: Set ValueResult = Pair.Value
        WScript.Echo "  " & AttributeField & " -> " & ValueResult
    Next

    ' Extracting specific fields using an event type ID and a simple relative path
    WScript.Echo "Source name: " & e.EventData.FieldResults.Item(UABaseEventObject_Operands_SourceName.ToUAAttributeField)
    WScript.Echo "Message: " & e.EventData.FieldResults.Item(UABaseEventObject_Operands_Message.ToUAAttributeField)
End Sub



' Example output (truncated):
'Subscribing...
'Processing event notifications for 30 seconds...
'
'[] Success
'
'[] Success; Refresh; RefreshInitiated
'
'All fields:
'  NodeId="BaseEventType", NodeId -> Success; nsu=http://opcfoundation.org/Quickstarts/AlarmCondition ;ns=2;s=1:Colours/EastTank?OnlineState {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
'  NodeId="BaseEventType"/EventId -> Success; [16] {95, 68, 22, 205, 114, ...} {System.Byte[]}
'  NodeId="BaseEventType"/EventType -> Success; DialogConditionType {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
'  NodeId="BaseEventType"/SourceNode -> Success; nsu=http://opcfoundation.org/Quickstarts/AlarmCondition ;ns=2;s=1:Colours/EastTank {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
'  NodeId="BaseEventType"/SourceName -> Success; EastTank {System.String}
'  NodeId="BaseEventType"/Time -> Success; 9/10/2019 8:08:23 PM {System.DateTime}
'  NodeId="BaseEventType"/ReceiveTime -> Success; 9/10/2019 8:08:23 PM {System.DateTime}
'  NodeId="BaseEventType"/LocalTime -> Success; 00:00, DST {OpcLabs.EasyOpc.UA.UATimeZoneData}
'  NodeId="BaseEventType"/Message -> Success; The dialog was activated {System.String}
'  NodeId="BaseEventType"/Severity -> Success; 100 {System.Int32}
'Source name: Success; EastTank {System.String}
'Message: Success; The dialog was activated {System.String}
'
'All fields:
'  NodeId="BaseEventType", NodeId -> Success; nsu=http://opcfoundation.org/Quickstarts/AlarmCondition ;ns=2;s=1:Colours/EastTank?Red {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
'  NodeId="BaseEventType"/EventId -> Success; [16] {124, 156, 219, 54, 120, ...} {System.Byte[]}
'  NodeId="BaseEventType"/EventType -> Success; ExclusiveDeviationAlarmType {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
'  NodeId="BaseEventType"/SourceNode -> Success; nsu=http://opcfoundation.org/Quickstarts/AlarmCondition ;ns=2;s=1:Colours/EastTank {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
'  NodeId="BaseEventType"/SourceName -> Success; EastTank {System.String}
'  NodeId="BaseEventType"/Time -> Success; 10/14/2019 4:00:13 PM {System.DateTime}
'  NodeId="BaseEventType"/ReceiveTime -> Success; 10/14/2019 4:00:13 PM {System.DateTime}
'  NodeId="BaseEventType"/LocalTime -> Success; 00:00, DST {OpcLabs.EasyOpc.UA.UATimeZoneData}
'  NodeId="BaseEventType"/Message -> Success; The alarm was acknoweledged. {System.String}
'  NodeId="BaseEventType"/Severity -> Success; 500 {System.Int32}
'Source name: Success; EastTank {System.String}
'Message: Success; The alarm was acknoweledged. {System.String}
'
'...

Python

# This example shows how to display all fields of incoming events, or extract specific fields.
#
# Find all latest examples here: https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .
# OPC client and subscriber examples in Python on GitHub: https://github.com/OPCLabs/Examples-QuickOPC-Python .
# Missing some example? Ask us for it on our Online Forums, https://www.opclabs.com/forum/index ! You do not have to own
# a commercial license in order to use Online Forums, and we reply to every post.
# The QuickOPC package is needed. Install it using "pip install opclabs_quickopc".
import opclabs_quickopc
import time

# Import .NET namespaces.
from OpcLabs.EasyOpc.UA import *
from OpcLabs.EasyOpc.UA.AddressSpace.Standard import *
from OpcLabs.EasyOpc.UA.AlarmsAndConditions import *
from OpcLabs.EasyOpc.UA.Filtering import *
from OpcLabs.EasyOpc.UA.OperationModel import *


def eventNotification(sender, eventArgs):
    print()

    # Display the event.
    if eventArgs.EventData is None:
        print(eventArgs)
        return
    print('All fields:')
    for pair in eventArgs.EventData.FieldResults:
        attributeField = pair.Key
        valueResult = pair.Value
        print('  ', attributeField, ' -> ', valueResult, sep='')

    # Extracting a specific field using a standard operand symbol.
    print('Source name: ',
          eventArgs.EventData.FieldResults.get_Item(UAAttributeField(UABaseEventObject.Operands.SourceName)),
          sep='')

    # Extracting a specific field using an event type ID and a simple relative path.
    print('Message: ',
          eventArgs.EventData.FieldResults.get_Item(UAAttributeField(
              UAFilterElements.SimpleAttribute(UANodeDescriptor(UAObjectTypeIds.BaseEventType), '/Message'))),
          sep='')


# Define which server we will work with.
endpointDescriptor = UAEndpointDescriptor('opc.tcp://opcua.demo-this.com:62544/Quickstarts/AlarmConditionServer')

# Instantiate the client object and hook events.
client = EasyUAClient()
client.EventNotification += eventNotification

print('Subscribing...')
IEasyUAClientExtension.SubscribeEvent(
    client,
    endpointDescriptor,
    UANodeDescriptor(UAObjectIds.Server),
    1000)

print('Processing event notifications for 30 seconds...')
time.sleep(30)

print()
print('Unsubscribing...')
client.UnsubscribeAllMonitoredItems()

print('Waiting for 5 seconds...')
time.sleep(5)

print('Finished.')



In order to make access to at least some of these results easier (without having to go through indexing an element in the dictionary), the UAEventData object also contains a BaseEvent property (of UABaseEventObject type). The UABaseEventObject class contains properties that directly correspond to information contained in the base event type (from which all UA events are derived), such as SourceName, Time, Message, Severity, etc. In case of an error related to a particular field, the corresponding property will contain its default value (e.g. an empty string for a Message).

.NET

// This example shows how to display specific fields of incoming events that are derived from base event type.
//
// Find all latest examples here: https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .
// OPC client and subscriber examples in C# on GitHub: https://github.com/OPCLabs/Examples-QuickOPC-CSharp .
// Missing some example? Ask us for it on our Online Forums, https://www.opclabs.com/forum/index ! You do not have to own
// a commercial license in order to use Online Forums, and we reply to every post.

using System;
using OpcLabs.EasyOpc.UA;
using OpcLabs.EasyOpc.UA.AddressSpace.Standard;
using OpcLabs.EasyOpc.UA.AlarmsAndConditions;
using OpcLabs.EasyOpc.UA.OperationModel;

namespace UADocExamples.AlarmsAndConditions
{
    class BaseEvent
    {
        public static void Main1()
        {
            UAEndpointDescriptor endpointDescriptor =
                "opc.tcp://opcua.demo-this.com:62544/Quickstarts/AlarmConditionServer";

            // Instantiate the client object and hook events.
            var client = new EasyUAClient();
            client.EventNotification += client_EventNotification;

            Console.WriteLine("Subscribing...");
            client.SubscribeEvent(endpointDescriptor, UAObjectIds.Server, 1000);

            Console.WriteLine("Processing event notifications for 30 seconds...");
            System.Threading.Thread.Sleep(30 * 1000);

            Console.WriteLine("Unsubscribing...");
            client.UnsubscribeAllMonitoredItems();

            Console.WriteLine("Waiting for 5 seconds...");
            System.Threading.Thread.Sleep(5 * 1000);

            Console.WriteLine("Finished.");
        }

        static void client_EventNotification(object sender, EasyUAEventNotificationEventArgs e)
        {
            Console.WriteLine();

            // Display the event.
            if (e.EventData is null)
            {
                Console.WriteLine(e);
                return;
            }
            UABaseEventObject baseEventObject = e.EventData.BaseEvent;
            Console.WriteLine($"Source name: {baseEventObject.SourceName}");
            Console.WriteLine($"Message: {baseEventObject.Message}");
            Console.WriteLine($"Severity: {baseEventObject.Severity}");
        }
    }
}

# This example shows how to display specific fields of incoming events that are derived from base event type.
#
# Find all latest examples here: https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .
# OPC client and subscriber examples in PowerShell on GitHub: https://github.com/OPCLabs/Examples-QuickOPC-PowerShell .
# Missing some example? Ask us for it on our Online Forums, https://www.opclabs.com/forum/index ! You do not have to own
# a commercial license in order to use Online Forums, and we reply to every post.

#requires -Version 5.1
using namespace OpcLabs.EasyOpc.UA
using namespace OpcLabs.EasyOpc.UA.AddressSpace
using namespace OpcLabs.EasyOpc.UA.AddressSpace.Standard

# The path below assumes that the current directory is [ProductDir]/Examples-NET/PowerShell/Windows .
Add-Type -Path "../../../Components/Opclabs.QuickOpc/net472/OpcLabs.EasyOpcUA.dll"
Add-Type -Path "../../../Components/Opclabs.QuickOpc/net472/OpcLabs.EasyOpcUAComponents.dll"

# Define which server we will work with.
[UAEndpointDescriptor]$endpointDescriptor = "opc.tcp://opcua.demo-this.com:62544/Quickstarts/AlarmConditionServer"

# Instantiate the client object.
$client = New-Object EasyUAClient

# Event notification handler
Register-ObjectEvent -InputObject $client -EventName EventNotification -Action {
    Write-Host

    # Display the event.
    if ($EventArgs.EventData -eq $null) {
        Write-Host $EventArgs
        return
    }
    $baseEventObject = $EventArgs.EventData.BaseEvent
    Write-Host "Source name: $($baseEventObject.SourceName)"
    Write-Host "Message: $($baseEventObject.Message)"
    Write-Host "Severity: $($baseEventObject.Severity)"
}

Write-Host "Subscribing..."
[IEasyUAClientExtension]::SubscribeEvent($client, $endpointDescriptor, [UAObjectIds]::Server, 1000)

Write-Host "Processing event notifications for 30 seconds..."
$stopwatch =  [System.Diagnostics.Stopwatch]::StartNew()
while ($stopwatch.Elapsed.TotalSeconds -lt 30) {
    Start-Sleep -Seconds 1
}

Write-Host "Unsubscribing..."
$client.UnsubscribeAllMonitoredItems()

Write-Host "Waiting for 5 seconds..."
Start-Sleep -Seconds 5

Write-Host "Finished."

' This example shows how to display specific fields of incoming events that are derived from base event type.
'
' Find all latest examples here: https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .
' OPC client and subscriber examples in VB.NET on GitHub: https://github.com/OPCLabs/Examples-QuickOPC-VBNET .
' Missing some example? Ask us for it on our Online Forums, https://www.opclabs.com/forum/index ! You do not have to own
' a commercial license in order to use Online Forums, and we reply to every post.

Imports OpcLabs.EasyOpc.UA
Imports OpcLabs.EasyOpc.UA.AddressSpace.Standard
Imports OpcLabs.EasyOpc.UA.OperationModel

Namespace AlarmsAndConditions
    Friend Class BaseEvent
        Public Shared Sub Main1()
            ' Instantiate the client object and hook events
            Dim client = New EasyUAClient()
            AddHandler client.EventNotification, AddressOf client_EventNotification

            Console.WriteLine("Subscribing...")
            client.SubscribeEvent( _
                "opc.tcp://opcua.demo-this.com:62544/Quickstarts/AlarmConditionServer", _
                UAObjectIds.Server, _
                1000)

            Console.WriteLine("Processing event notifications for 30 seconds...")
            Threading.Thread.Sleep(30 * 1000)

            Console.WriteLine("Unsubscribing...")
            client.UnsubscribeAllMonitoredItems()

            Console.WriteLine("Waiting for 5 seconds...")
            Threading.Thread.Sleep(5 * 1000)
        End Sub

        Private Shared Sub client_EventNotification(ByVal sender As Object, ByVal e As EasyUAEventNotificationEventArgs)
            Console.WriteLine()

            ' Display the event
            If e.EventData Is Nothing Then
                Console.WriteLine(e)
                Exit Sub
            End If
            Dim baseEventObject = e.EventData.BaseEvent
            Console.WriteLine("Source name: {0}", baseEventObject.SourceName)
            Console.WriteLine("Message: {0}", baseEventObject.Message)
            Console.WriteLine("Severity: {0}", baseEventObject.Severity)
        End Sub
    End Class
End Namespace

COM

// This example shows how to display specific fields of incoming events that are derived from base event type.
//
// Find all latest examples here: https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .
// OPC client and subscriber examples in Object Pascal (Delphi) on GitHub: https://github.com/OPCLabs/Examples-QuickOPC-OP .
// Missing some example? Ask us for it on our Online Forums, https://www.opclabs.com/forum/index ! You do not have to own
// a commercial license in order to use Online Forums, and we reply to every post.

type
  TClientEventHandlers12 = class
    procedure Client_EventNotification(
      ASender: TObject;
      sender: OleVariant;
      const eventArgs: _EasyUAEventNotificationEventArgs);
  end;

procedure TClientEventHandlers12.Client_EventNotification(
  ASender: TObject;
  sender: OleVariant;
  const eventArgs: _EasyUAEventNotificationEventArgs);
var
  BaseEventObject: _UABaseEventObject;
begin
  WriteLn;

  // Display the event
  if eventArgs.EventData = nil then
  begin
    WriteLn(eventArgs.ToString);
    Exit;
  end;

  BaseEventObject := eventArgs.EventData.BaseEvent;
  WriteLn('Source name: ', BaseEventObject.SourceName);
  WriteLn('Message: ', BaseEventObject.Message);
  WriteLn('Severity: ', BaseEventObject.Severity);
end;

class procedure BaseEvent.Main;
const
  UAObjectIds_Server = 'nsu=http://opcfoundation.org/UA/;i=2253';
var
  Client: TEasyUAClient;
  ClientEventHandlers: TClientEventHandlers12;
  EndpointDescriptor: string;
begin
  EndpointDescriptor := 'opc.tcp://opcua.demo-this.com:62544/Quickstarts/AlarmConditionServer';

  // Instantiate the client object and hook events
  Client := TEasyUAClient.Create(nil);
  ClientEventHandlers := TClientEventHandlers12.Create;
  Client.OnEventNotification := ClientEventHandlers.Client_EventNotification;

  WriteLn('Subscribing...');
  Client.SubscribeEvent(EndpointDescriptor, UAObjectIds_Server, 1000);

  WriteLn('Processing event notifications for 30 seconds...');
  PumpSleep(30*1000);

  WriteLn('Unsubscribing...');
  Client.UnsubscribeAllMonitoredItems;

  WriteLn('Waiting for 5 seconds...');
  Sleep(5*1000);

  WriteLn('Finished.');
  FreeAndNil(Client);
  FreeAndNil(ClientEventHandlers);
end;

// This example shows how to display specific fields of incoming events that are derived from base event type.
//
// Find all latest examples here: https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .
// OPC client and subscriber examples in PHP on GitHub: https://github.com/OPCLabs/Examples-QuickOPC-PHP .
// Missing some example? Ask us for it on our Online Forums, https://www.opclabs.com/forum/index ! You do not have to own
// a commercial license in order to use Online Forums, and we reply to every post.


class ClientEvents {
    function EventNotification($Sender, $E)
    {
        printf("\n");

        // Display the event
        if (is_null($E->EventData)) {
            printf("%s\n", $E);
            return;
        }

        $BaseEventObject = $E->EventData->BaseEvent;
        printf("Source name: %s\n", $BaseEventObject->SourceName);
        printf("Message: %s\n", $BaseEventObject->Message);
        printf("Severity: %s\n", $BaseEventObject->Severity);
    }
}

const UAObjectIds_Server = "nsu=http://opcfoundation.org/UA/;i=2253";

$EndpointDescriptor = "opc.tcp://opcua.demo-this.com:62544/Quickstarts/AlarmConditionServer";

// Instantiate the client object and hook events
$Client = new COM("OpcLabs.EasyOpc.UA.EasyUAClient");
$ClientEvents = new ClientEvents();
com_event_sink($Client, $ClientEvents, "DEasyUAClientEvents");

printf("Subscribing...\n");
$Client->SubscribeEvent($EndpointDescriptor, UAObjectIds_Server, 1000);

printf("Processing event notifications for 30 seconds...\n");
$startTime = time(); do { com_message_pump(1000); } while (time() < $startTime + 30);

printf("Unsubscribing...\n");
$Client->UnsubscribeAllMonitoredItems;

printf("Waiting for 5 seconds...\n");
$startTime = time(); do { com_message_pump(1000); } while (time() < $startTime + 5);

Python

# This example shows how to display specific fields of incoming events that are derived from base event type.
#
# Find all latest examples here: https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .
# OPC client and subscriber examples in Python on GitHub: https://github.com/OPCLabs/Examples-QuickOPC-Python .
# Missing some example? Ask us for it on our Online Forums, https://www.opclabs.com/forum/index ! You do not have to own
# a commercial license in order to use Online Forums, and we reply to every post.
# The QuickOPC package is needed. Install it using "pip install opclabs_quickopc".
import opclabs_quickopc
import time

# Import .NET namespaces.
from OpcLabs.EasyOpc.UA import *
from OpcLabs.EasyOpc.UA.AddressSpace.Standard import *
from OpcLabs.EasyOpc.UA.AlarmsAndConditions import *
from OpcLabs.EasyOpc.UA.OperationModel import *


def eventNotification(sender, eventArgs):
    print()
    # Display the event.
    if eventArgs.EventData is None:
        print(eventArgs)
        return
    baseEventObject = eventArgs.EventData.BaseEvent
    print('Source name: ', baseEventObject.SourceName, sep='')
    print('Message: ', baseEventObject.Message, sep='')
    print('Severity: ', baseEventObject.Severity, sep='')


# Define which server we will work with.
endpointDescriptor = UAEndpointDescriptor('opc.tcp://opcua.demo-this.com:62544/Quickstarts/AlarmConditionServer')

# Instantiate the client object and hook events.
client = EasyUAClient()
client.EventNotification += eventNotification

print('Subscribing...')
IEasyUAClientExtension.SubscribeEvent(
    client,
    endpointDescriptor,
    UANodeDescriptor(UAObjectIds.Server),
    1000)

print('Processing event notifications for 30 seconds...')
time.sleep(30)

print('Unsubscribing...')
client.UnsubscribeAllMonitoredItems()

print('Waiting for 5 seconds...')
time.sleep(5)

print('Finished.')



It should be noted that the FieldResults directory always contains results for the fields you have specified in Select clause of the event filter, but it can contain some additional fields as well. This happens when these fields are necessary for internal processing inside the component. Your code should be able to ignore the results that it has not requested.

Note: Some data returned use complex data types defined by OPC UA, which QuickOPC transforms to its own .NET types. For example, the UATimeZoneData class contains data returned in the UABaseEventObject.LocalTime property (defines the local time that may or may not take daylight saving time into account).







Example
// This example shows how to display specific fields of incoming events that are derived from base event type.
//
// Find all latest examples here: https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .
// OPC client and subscriber examples in C# on GitHub: https://github.com/OPCLabs/Examples-QuickOPC-CSharp .
// Missing some example? Ask us for it on our Online Forums, https://www.opclabs.com/forum/index ! You do not have to own
// a commercial license in order to use Online Forums, and we reply to every post.

using System;
using OpcLabs.EasyOpc.UA;
using OpcLabs.EasyOpc.UA.AddressSpace.Standard;
using OpcLabs.EasyOpc.UA.AlarmsAndConditions;
using OpcLabs.EasyOpc.UA.OperationModel;

namespace UADocExamples.AlarmsAndConditions
{
    class BaseEvent
    {
        public static void Main1()
        {
            UAEndpointDescriptor endpointDescriptor =
                "opc.tcp://opcua.demo-this.com:62544/Quickstarts/AlarmConditionServer";

            // Instantiate the client object and hook events.
            var client = new EasyUAClient();
            client.EventNotification += client_EventNotification;

            Console.WriteLine("Subscribing...");
            client.SubscribeEvent(endpointDescriptor, UAObjectIds.Server, 1000);

            Console.WriteLine("Processing event notifications for 30 seconds...");
            System.Threading.Thread.Sleep(30 * 1000);

            Console.WriteLine("Unsubscribing...");
            client.UnsubscribeAllMonitoredItems();

            Console.WriteLine("Waiting for 5 seconds...");
            System.Threading.Thread.Sleep(5 * 1000);

            Console.WriteLine("Finished.");
        }

        static void client_EventNotification(object sender, EasyUAEventNotificationEventArgs e)
        {
            Console.WriteLine();

            // Display the event.
            if (e.EventData is null)
            {
                Console.WriteLine(e);
                return;
            }
            UABaseEventObject baseEventObject = e.EventData.BaseEvent;
            Console.WriteLine($"Source name: {baseEventObject.SourceName}");
            Console.WriteLine($"Message: {baseEventObject.Message}");
            Console.WriteLine($"Severity: {baseEventObject.Severity}");
        }
    }
}
# This example shows how to display specific fields of incoming events that are derived from base event type.
#
# Find all latest examples here: https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .
# OPC client and subscriber examples in PowerShell on GitHub: https://github.com/OPCLabs/Examples-QuickOPC-PowerShell .
# Missing some example? Ask us for it on our Online Forums, https://www.opclabs.com/forum/index ! You do not have to own
# a commercial license in order to use Online Forums, and we reply to every post.

#requires -Version 5.1
using namespace OpcLabs.EasyOpc.UA
using namespace OpcLabs.EasyOpc.UA.AddressSpace
using namespace OpcLabs.EasyOpc.UA.AddressSpace.Standard

# The path below assumes that the current directory is [ProductDir]/Examples-NET/PowerShell/Windows .
Add-Type -Path "../../../Components/Opclabs.QuickOpc/net472/OpcLabs.EasyOpcUA.dll"
Add-Type -Path "../../../Components/Opclabs.QuickOpc/net472/OpcLabs.EasyOpcUAComponents.dll"

# Define which server we will work with.
[UAEndpointDescriptor]$endpointDescriptor = "opc.tcp://opcua.demo-this.com:62544/Quickstarts/AlarmConditionServer"

# Instantiate the client object.
$client = New-Object EasyUAClient

# Event notification handler
Register-ObjectEvent -InputObject $client -EventName EventNotification -Action {
    Write-Host

    # Display the event.
    if ($EventArgs.EventData -eq $null) {
        Write-Host $EventArgs
        return
    }
    $baseEventObject = $EventArgs.EventData.BaseEvent
    Write-Host "Source name: $($baseEventObject.SourceName)"
    Write-Host "Message: $($baseEventObject.Message)"
    Write-Host "Severity: $($baseEventObject.Severity)"
}

Write-Host "Subscribing..."
[IEasyUAClientExtension]::SubscribeEvent($client, $endpointDescriptor, [UAObjectIds]::Server, 1000)

Write-Host "Processing event notifications for 30 seconds..."
$stopwatch =  [System.Diagnostics.Stopwatch]::StartNew()
while ($stopwatch.Elapsed.TotalSeconds -lt 30) {
    Start-Sleep -Seconds 1
}

Write-Host "Unsubscribing..."
$client.UnsubscribeAllMonitoredItems()

Write-Host "Waiting for 5 seconds..."
Start-Sleep -Seconds 5

Write-Host "Finished."

' This example shows how to display specific fields of incoming events that are derived from base event type.
'
' Find all latest examples here: https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .
' OPC client and subscriber examples in VB.NET on GitHub: https://github.com/OPCLabs/Examples-QuickOPC-VBNET .
' Missing some example? Ask us for it on our Online Forums, https://www.opclabs.com/forum/index ! You do not have to own
' a commercial license in order to use Online Forums, and we reply to every post.

Imports OpcLabs.EasyOpc.UA
Imports OpcLabs.EasyOpc.UA.AddressSpace.Standard
Imports OpcLabs.EasyOpc.UA.OperationModel

Namespace AlarmsAndConditions
    Friend Class BaseEvent
        Public Shared Sub Main1()
            ' Instantiate the client object and hook events
            Dim client = New EasyUAClient()
            AddHandler client.EventNotification, AddressOf client_EventNotification

            Console.WriteLine("Subscribing...")
            client.SubscribeEvent( _
                "opc.tcp://opcua.demo-this.com:62544/Quickstarts/AlarmConditionServer", _
                UAObjectIds.Server, _
                1000)

            Console.WriteLine("Processing event notifications for 30 seconds...")
            Threading.Thread.Sleep(30 * 1000)

            Console.WriteLine("Unsubscribing...")
            client.UnsubscribeAllMonitoredItems()

            Console.WriteLine("Waiting for 5 seconds...")
            Threading.Thread.Sleep(5 * 1000)
        End Sub

        Private Shared Sub client_EventNotification(ByVal sender As Object, ByVal e As EasyUAEventNotificationEventArgs)
            Console.WriteLine()

            ' Display the event
            If e.EventData Is Nothing Then
                Console.WriteLine(e)
                Exit Sub
            End If
            Dim baseEventObject = e.EventData.BaseEvent
            Console.WriteLine("Source name: {0}", baseEventObject.SourceName)
            Console.WriteLine("Message: {0}", baseEventObject.Message)
            Console.WriteLine("Severity: {0}", baseEventObject.Severity)
        End Sub
    End Class
End Namespace

// This example shows how to display specific fields of incoming events that are derived from base event type.
//
// Find all latest examples here: https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .
// OPC client and subscriber examples in Object Pascal (Delphi) on GitHub: https://github.com/OPCLabs/Examples-QuickOPC-OP .
// Missing some example? Ask us for it on our Online Forums, https://www.opclabs.com/forum/index ! You do not have to own
// a commercial license in order to use Online Forums, and we reply to every post.

type
  TClientEventHandlers12 = class
    procedure Client_EventNotification(
      ASender: TObject;
      sender: OleVariant;
      const eventArgs: _EasyUAEventNotificationEventArgs);
  end;

procedure TClientEventHandlers12.Client_EventNotification(
  ASender: TObject;
  sender: OleVariant;
  const eventArgs: _EasyUAEventNotificationEventArgs);
var
  BaseEventObject: _UABaseEventObject;
begin
  WriteLn;

  // Display the event
  if eventArgs.EventData = nil then
  begin
    WriteLn(eventArgs.ToString);
    Exit;
  end;

  BaseEventObject := eventArgs.EventData.BaseEvent;
  WriteLn('Source name: ', BaseEventObject.SourceName);
  WriteLn('Message: ', BaseEventObject.Message);
  WriteLn('Severity: ', BaseEventObject.Severity);
end;

class procedure BaseEvent.Main;
const
  UAObjectIds_Server = 'nsu=http://opcfoundation.org/UA/;i=2253';
var
  Client: TEasyUAClient;
  ClientEventHandlers: TClientEventHandlers12;
  EndpointDescriptor: string;
begin
  EndpointDescriptor := 'opc.tcp://opcua.demo-this.com:62544/Quickstarts/AlarmConditionServer';

  // Instantiate the client object and hook events
  Client := TEasyUAClient.Create(nil);
  ClientEventHandlers := TClientEventHandlers12.Create;
  Client.OnEventNotification := ClientEventHandlers.Client_EventNotification;

  WriteLn('Subscribing...');
  Client.SubscribeEvent(EndpointDescriptor, UAObjectIds_Server, 1000);

  WriteLn('Processing event notifications for 30 seconds...');
  PumpSleep(30*1000);

  WriteLn('Unsubscribing...');
  Client.UnsubscribeAllMonitoredItems;

  WriteLn('Waiting for 5 seconds...');
  Sleep(5*1000);

  WriteLn('Finished.');
  FreeAndNil(Client);
  FreeAndNil(ClientEventHandlers);
end;
// This example shows how to display specific fields of incoming events that are derived from base event type.
//
// Find all latest examples here: https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .
// OPC client and subscriber examples in PHP on GitHub: https://github.com/OPCLabs/Examples-QuickOPC-PHP .
// Missing some example? Ask us for it on our Online Forums, https://www.opclabs.com/forum/index ! You do not have to own
// a commercial license in order to use Online Forums, and we reply to every post.


class ClientEvents {
    function EventNotification($Sender, $E)
    {
        printf("\n");

        // Display the event
        if (is_null($E->EventData)) {
            printf("%s\n", $E);
            return;
        }

        $BaseEventObject = $E->EventData->BaseEvent;
        printf("Source name: %s\n", $BaseEventObject->SourceName);
        printf("Message: %s\n", $BaseEventObject->Message);
        printf("Severity: %s\n", $BaseEventObject->Severity);
    }
}

const UAObjectIds_Server = "nsu=http://opcfoundation.org/UA/;i=2253";

$EndpointDescriptor = "opc.tcp://opcua.demo-this.com:62544/Quickstarts/AlarmConditionServer";

// Instantiate the client object and hook events
$Client = new COM("OpcLabs.EasyOpc.UA.EasyUAClient");
$ClientEvents = new ClientEvents();
com_event_sink($Client, $ClientEvents, "DEasyUAClientEvents");

printf("Subscribing...\n");
$Client->SubscribeEvent($EndpointDescriptor, UAObjectIds_Server, 1000);

printf("Processing event notifications for 30 seconds...\n");
$startTime = time(); do { com_message_pump(1000); } while (time() < $startTime + 30);

printf("Unsubscribing...\n");
$Client->UnsubscribeAllMonitoredItems;

printf("Waiting for 5 seconds...\n");
$startTime = time(); do { com_message_pump(1000); } while (time() < $startTime + 5);

# This example shows how to display specific fields of incoming events that are derived from base event type.
#
# Find all latest examples here: https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .
# OPC client and subscriber examples in Python on GitHub: https://github.com/OPCLabs/Examples-QuickOPC-Python .
# Missing some example? Ask us for it on our Online Forums, https://www.opclabs.com/forum/index ! You do not have to own
# a commercial license in order to use Online Forums, and we reply to every post.
# The QuickOPC package is needed. Install it using "pip install opclabs_quickopc".
import opclabs_quickopc
import time

# Import .NET namespaces.
from OpcLabs.EasyOpc.UA import *
from OpcLabs.EasyOpc.UA.AddressSpace.Standard import *
from OpcLabs.EasyOpc.UA.AlarmsAndConditions import *
from OpcLabs.EasyOpc.UA.OperationModel import *


def eventNotification(sender, eventArgs):
    print()
    # Display the event.
    if eventArgs.EventData is None:
        print(eventArgs)
        return
    baseEventObject = eventArgs.EventData.BaseEvent
    print('Source name: ', baseEventObject.SourceName, sep='')
    print('Message: ', baseEventObject.Message, sep='')
    print('Severity: ', baseEventObject.Severity, sep='')


# Define which server we will work with.
endpointDescriptor = UAEndpointDescriptor('opc.tcp://opcua.demo-this.com:62544/Quickstarts/AlarmConditionServer')

# Instantiate the client object and hook events.
client = EasyUAClient()
client.EventNotification += eventNotification

print('Subscribing...')
IEasyUAClientExtension.SubscribeEvent(
    client,
    endpointDescriptor,
    UANodeDescriptor(UAObjectIds.Server),
    1000)

print('Processing event notifications for 30 seconds...')
time.sleep(30)

print('Unsubscribing...')
client.UnsubscribeAllMonitoredItems()

print('Waiting for 5 seconds...')
time.sleep(5)

print('Finished.')

// This example shows how to display all fields of incoming events, or extract specific fields.
//
// Find all latest examples here: https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .
// OPC client and subscriber examples in C# on GitHub: https://github.com/OPCLabs/Examples-QuickOPC-CSharp .
// Missing some example? Ask us for it on our Online Forums, https://www.opclabs.com/forum/index ! You do not have to own
// a commercial license in order to use Online Forums, and we reply to every post.

using System;
using System.Collections.Generic;
using OpcLabs.BaseLib.OperationModel;
using OpcLabs.EasyOpc.UA;
using OpcLabs.EasyOpc.UA.AddressSpace.Standard;
using OpcLabs.EasyOpc.UA.AlarmsAndConditions;
using OpcLabs.EasyOpc.UA.Filtering;
using OpcLabs.EasyOpc.UA.OperationModel;

namespace UADocExamples.AlarmsAndConditions
{
    class FieldResults
    {
        public static void Main1()
        {
            UAEndpointDescriptor endpointDescriptor =
                "opc.tcp://opcua.demo-this.com:62544/Quickstarts/AlarmConditionServer";

            // Instantiate the client object and hook events.
            var client = new EasyUAClient();
            client.EventNotification += client_EventNotification;

            Console.WriteLine("Subscribing...");
            client.SubscribeEvent(endpointDescriptor, UAObjectIds.Server, 1000);

            Console.WriteLine("Processing event notifications for 30 seconds...");
            System.Threading.Thread.Sleep(30 * 1000);

            Console.WriteLine("Unsubscribing...");
            client.UnsubscribeAllMonitoredItems();

            Console.WriteLine("Waiting for 5 seconds...");
            System.Threading.Thread.Sleep(5 * 1000);

            Console.WriteLine("Finished.");
        }

        static void client_EventNotification(object sender, EasyUAEventNotificationEventArgs e)
        {
            Console.WriteLine();

            // Display the event.
            if (e.EventData is null)
            {
                Console.WriteLine(e);
                return;
            }
            Console.WriteLine("All fields:");
            foreach (KeyValuePair<UAAttributeField, ValueResult> pair in e.EventData.FieldResults)
            {
                UAAttributeField attributeField = pair.Key;
                ValueResult valueResult = pair.Value;
                Console.WriteLine("  {0} -> {1}", attributeField, valueResult);
            }

            // Extracting a specific field using a standard operand symbol.
            Console.WriteLine($"Source name: {e.EventData.FieldResults[UABaseEventObject.Operands.SourceName]}");

            // Extracting a specific field using an event type ID and a simple relative path.
            Console.WriteLine(
                $"Message: {e.EventData.FieldResults[UAFilterElements.SimpleAttribute(UAObjectTypeIds.BaseEventType, "/Message")]}");
        }


        // Example output (truncated):
        //Subscribing...
        //Processing event notifications for 30 seconds...
        //
        //[] Success
        //
        //[] Success; Refresh; RefreshInitiated
        //
        //All fields:
        //  NodeId="BaseEventType", NodeId -> Success; nsu=http://opcfoundation.org/Quickstarts/AlarmCondition ;ns=2;s=1:Colours/EastTank?OnlineState {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
        //  NodeId="BaseEventType"/EventId -> Success; [16] {95, 68, 22, 205, 114, ...} {System.Byte[]}
        //  NodeId="BaseEventType"/EventType -> Success; DialogConditionType {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
        //  NodeId="BaseEventType"/SourceNode -> Success; nsu=http://opcfoundation.org/Quickstarts/AlarmCondition ;ns=2;s=1:Colours/EastTank {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
        //  NodeId="BaseEventType"/SourceName -> Success; EastTank {System.String}
        //  NodeId="BaseEventType"/Time -> Success; 9/10/2019 8:08:23 PM {System.DateTime}
        //  NodeId="BaseEventType"/ReceiveTime -> Success; 9/10/2019 8:08:23 PM {System.DateTime}
        //  NodeId="BaseEventType"/LocalTime -> Success; 00:00, DST {OpcLabs.EasyOpc.UA.UATimeZoneData}
        //  NodeId="BaseEventType"/Message -> Success; The dialog was activated {System.String}
        //  NodeId="BaseEventType"/Severity -> Success; 100 {System.Int32}
        //Source name: Success; EastTank {System.String}
        //Message: Success; The dialog was activated {System.String}
        //
        //All fields:
        //  NodeId="BaseEventType", NodeId -> Success; nsu=http://opcfoundation.org/Quickstarts/AlarmCondition ;ns=2;s=1:Colours/EastTank?Red {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
        //  NodeId="BaseEventType"/EventId -> Success; [16] {124, 156, 219, 54, 120, ...} {System.Byte[]}
        //  NodeId="BaseEventType"/EventType -> Success; ExclusiveDeviationAlarmType {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
        //  NodeId="BaseEventType"/SourceNode -> Success; nsu=http://opcfoundation.org/Quickstarts/AlarmCondition ;ns=2;s=1:Colours/EastTank {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
        //  NodeId="BaseEventType"/SourceName -> Success; EastTank {System.String}
        //  NodeId="BaseEventType"/Time -> Success; 10/14/2019 4:00:13 PM {System.DateTime}
        //  NodeId="BaseEventType"/ReceiveTime -> Success; 10/14/2019 4:00:13 PM {System.DateTime}
        //  NodeId="BaseEventType"/LocalTime -> Success; 00:00, DST {OpcLabs.EasyOpc.UA.UATimeZoneData}
        //  NodeId="BaseEventType"/Message -> Success; The alarm was acknoweledged. {System.String}
        //  NodeId="BaseEventType"/Severity -> Success; 500 {System.Int32}
        //Source name: Success; EastTank {System.String}
        //Message: Success; The alarm was acknoweledged. {System.String}
        //
        //...
    }
}
# This example shows how to display all fields of incoming events, or extract specific fields.
#
# Find all latest examples here: https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .
# OPC client and subscriber examples in PowerShell on GitHub: https://github.com/OPCLabs/Examples-QuickOPC-PowerShell .
# Missing some example? Ask us for it on our Online Forums, https://www.opclabs.com/forum/index ! You do not have to own
# a commercial license in order to use Online Forums, and we reply to every post.

#requires -Version 5.1
using namespace OpcLabs.BaseLib.OperationModel
using namespace OpcLabs.EasyOpc.UA
using namespace OpcLabs.EasyOpc.UA.AddressSpace
using namespace OpcLabs.EasyOpc.UA.AddressSpace.Standard
using namespace OpcLabs.EasyOpc.UA.AlarmsAndConditions
using namespace OpcLabs.EasyOpc.UA.Filtering

# The path below assumes that the current directory is [ProductDir]/Examples-NET/PowerShell/Windows .
Add-Type -Path "../../../Components/Opclabs.QuickOpc/net472/OpcLabs.EasyOpcUA.dll"
Add-Type -Path "../../../Components/Opclabs.QuickOpc/net472/OpcLabs.EasyOpcUAComponents.dll"

# Define which server we will work with.
[UAEndpointDescriptor]$endpointDescriptor = "opc.tcp://opcua.demo-this.com:62544/Quickstarts/AlarmConditionServer"

# Instantiate the client object.
$client = New-Object EasyUAClient

# Event notification handler
Register-ObjectEvent -InputObject $client -EventName EventNotification -Action {
    Write-Host

    # Display the event.
    if ($EventArgs.EventData -eq $null) {
        Write-Host $EventArgs
        return
    }
    Write-Host "All fields:"
    foreach ($pair in $EventArgs.EventData.FieldResults.GetEnumerator()) {
        [UAAttributeField]$attributeField = $pair.Key
        [ValueResult]$valueResult = $pair.Value
        Write-Host "  $($attributeField) -> $($valueResult)"
    }

    # Extracting a specific field using a standard operand symbol.
    Write-Host "Source name: $($EventArgs.EventData.FieldResults[[UABaseEventObject+Operands]::SourceName])"

    # Extracting a specific field using an event type ID and a simple relative path.
    Write-Host `
        "Message: $($EventArgs.EventData.FieldResults[[UAFilterElements]::SimpleAttribute([UAObjectTypeIds]::BaseEventType, "/Message")])"
}

Write-Host "Subscribing..."
[IEasyUAClientExtension]::SubscribeEvent($client, $endpointDescriptor, [UAObjectIds]::Server, 1000)

Write-Host "Processing event notifications for 30 seconds..."
$stopwatch =  [System.Diagnostics.Stopwatch]::StartNew()
while ($stopwatch.Elapsed.TotalSeconds -lt 30) {
    Start-Sleep -Seconds 1
}

Write-Host "Unsubscribing..."
$client.UnsubscribeAllMonitoredItems()

Write-Host "Waiting for 5 seconds..."
Start-Sleep -Seconds 5

Write-Host "Finished."


# Example output (truncated):
#Subscribing...
#Processing event notifications for 30 seconds...
#
#[] Success
#
#[] Success; Refresh; RefreshInitiated
#
#All fields:
#  NodeId="BaseEventType", NodeId -> Success; nsu=http:#opcfoundation.org/Quickstarts/AlarmCondition ;ns=2;s=1:Colours/EastTank?OnlineState {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
#  NodeId="BaseEventType"/EventId -> Success; [16] {95, 68, 22, 205, 114, ...} {System.Byte[]}
#  NodeId="BaseEventType"/EventType -> Success; DialogConditionType {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
#  NodeId="BaseEventType"/SourceNode -> Success; nsu=http:#opcfoundation.org/Quickstarts/AlarmCondition ;ns=2;s=1:Colours/EastTank {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
#  NodeId="BaseEventType"/SourceName -> Success; EastTank {System.String}
#  NodeId="BaseEventType"/Time -> Success; 9/10/2019 8:08:23 PM {System.DateTime}
#  NodeId="BaseEventType"/ReceiveTime -> Success; 9/10/2019 8:08:23 PM {System.DateTime}
#  NodeId="BaseEventType"/LocalTime -> Success; 00:00, DST {OpcLabs.EasyOpc.UA.UATimeZoneData}
#  NodeId="BaseEventType"/Message -> Success; The dialog was activated {System.String}
#  NodeId="BaseEventType"/Severity -> Success; 100 {System.Int32}
#Source name: Success; EastTank {System.String}
#Message: Success; The dialog was activated {System.String}
#
#All fields:
#  NodeId="BaseEventType", NodeId -> Success; nsu=http:#opcfoundation.org/Quickstarts/AlarmCondition ;ns=2;s=1:Colours/EastTank?Red {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
#  NodeId="BaseEventType"/EventId -> Success; [16] {124, 156, 219, 54, 120, ...} {System.Byte[]}
#  NodeId="BaseEventType"/EventType -> Success; ExclusiveDeviationAlarmType {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
#  NodeId="BaseEventType"/SourceNode -> Success; nsu=http:#opcfoundation.org/Quickstarts/AlarmCondition ;ns=2;s=1:Colours/EastTank {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
#  NodeId="BaseEventType"/SourceName -> Success; EastTank {System.String}
#  NodeId="BaseEventType"/Time -> Success; 10/14/2019 4:00:13 PM {System.DateTime}
#  NodeId="BaseEventType"/ReceiveTime -> Success; 10/14/2019 4:00:13 PM {System.DateTime}
#  NodeId="BaseEventType"/LocalTime -> Success; 00:00, DST {OpcLabs.EasyOpc.UA.UATimeZoneData}
#  NodeId="BaseEventType"/Message -> Success; The alarm was acknoweledged. {System.String}
#  NodeId="BaseEventType"/Severity -> Success; 500 {System.Int32}
#Source name: Success; EastTank {System.String}
#Message: Success; The alarm was acknoweledged. {System.String}
#
#...

' This example shows how to display all fields of incoming events, or extract specific fields.
'
' Find all latest examples here: https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .
' OPC client and subscriber examples in VB.NET on GitHub: https://github.com/OPCLabs/Examples-QuickOPC-VBNET .
' Missing some example? Ask us for it on our Online Forums, https://www.opclabs.com/forum/index ! You do not have to own
' a commercial license in order to use Online Forums, and we reply to every post.

Imports OpcLabs.EasyOpc.UA
Imports OpcLabs.EasyOpc.UA.AddressSpace.Standard
Imports OpcLabs.EasyOpc.UA.AlarmsAndConditions
Imports OpcLabs.EasyOpc.UA.Filtering
Imports OpcLabs.EasyOpc.UA.OperationModel

Namespace AlarmsAndConditions
    Friend Class FieldResults
        Public Shared Sub Main1()
            ' Instantiate the client object and hook events
            Dim client = New EasyUAClient()
            AddHandler client.EventNotification, AddressOf client_EventNotification

            Console.WriteLine("Subscribing...")
            client.SubscribeEvent( _
                "opc.tcp://opcua.demo-this.com:62544/Quickstarts/AlarmConditionServer", _
                UAObjectIds.Server, _
                1000)

            Console.WriteLine("Processing event notifications for 30 seconds...")
            Threading.Thread.Sleep(30 * 1000)

            Console.WriteLine("Unsubscribing...")
            client.UnsubscribeAllMonitoredItems()

            Console.WriteLine("Waiting for 5 seconds...")
            Threading.Thread.Sleep(5 * 1000)
        End Sub

        Private Shared Sub client_EventNotification(ByVal sender As Object, ByVal e As EasyUAEventNotificationEventArgs)
            Console.WriteLine()

            ' Display the event
            If e.EventData Is Nothing Then
                Console.WriteLine(e)
                Exit Sub
            End If
            Console.WriteLine("All fields:")
            For Each pair In e.EventData.FieldResults
                Dim attributeField = pair.Key
                Dim valueResult = pair.Value
                Console.WriteLine("  {0} -> {1}", attributeField, valueResult)
            Next pair
            ' Extracting a specific field using a standard operand symbol
            Console.WriteLine("Source name: {0}", _
                e.EventData.FieldResults(UABaseEventObject.Operands.SourceName))
            ' Extracting a specific field using an event type ID and a simple relative path
            Console.WriteLine("Message: {0}", _
                e.EventData.FieldResults(UAFilterElements.SimpleAttribute(UAObjectTypeIds.BaseEventType, "/Message")))
        End Sub
    End Class
End Namespace

// This example shows how to display all fields of incoming events, or extract specific fields.
//
// Find all latest examples here: https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .
// OPC client and subscriber examples in Object Pascal (Delphi) on GitHub: https://github.com/OPCLabs/Examples-QuickOPC-OP .
// Missing some example? Ask us for it on our Online Forums, https://www.opclabs.com/forum/index ! You do not have to own
// a commercial license in order to use Online Forums, and we reply to every post.

type
  THelperMethods15 = class
    class function ObjectTypeIds_BaseEventType: _UANodeId; static;
    class function UAFilterElements_SimpleAttribute(TypeId: _UANodeId; simpleRelativeBrowsePathString: string): _UASimpleAttributeOperand; static;
    class function UABaseEventObject_Operands_SourceName: _UASimpleAttributeOperand; static;
    class function UABaseEventObject_Operands_Message: _UASimpleAttributeOperand; static;
  end;

type
  TClientEventHandlers15 = class
    procedure Client_EventNotification(
      ASender: TObject;
      sender: OleVariant;
      const eventArgs: _EasyUAEventNotificationEventArgs);
  end;

procedure TClientEventHandlers15.Client_EventNotification(
  ASender: TObject;
  sender: OleVariant;
  const eventArgs: _EasyUAEventNotificationEventArgs);
var
  AttributeField: OleVariant;
  Count: Cardinal;
  Element: OleVariant;
  EntryEnumerator: IEnumVARIANT;
  ValueResult: OleVariant;
begin
  WriteLn;

  // Display the event
  if eventArgs.EventData = nil then
  begin
    WriteLn(eventArgs.ToString);
    Exit;
  end;

  WriteLn('All fields:');

  EntryEnumerator := eventArgs.EventData.FieldResults.GetEnumerator;
  while (EntryEnumerator.Next(1, Element, Count) = S_OK) do
  begin
    AttributeField := IUnknown(Element.Key) as _UAAttributeField;
    ValueResult := IUnknown(Element.Value) as _ValueResult;
    WriteLn('  ', AttributeField.ToString, ' -> ', ValueResult.ToString);
  end;

  // Extracting specific fields using an event type ID and a simple relative path
  WriteLn('Source name: ', eventArgs.EventData.FieldResults.Item[THelperMethods15.UABaseEventObject_Operands_SourceName.ToUAAttributeField].ToString);
  WriteLn('Message: ', eventArgs.EventData.FieldResults.Item[THelperMethods15.UABaseEventObject_Operands_Message.ToUAAttributeField].ToString);
end;

class procedure FieldResults.Main;
const
  UAObjectIds_Server = 'nsu=http://opcfoundation.org/UA/;i=2253';
var
  Client: TEasyUAClient;
  ClientEventHandlers: TClientEventHandlers15;
  EndpointDescriptor: string;
begin
  EndpointDescriptor := 'opc.tcp://opcua.demo-this.com:62544/Quickstarts/AlarmConditionServer';

  // Instantiate the client object and hook events
  Client := TEasyUAClient.Create(nil);
  ClientEventHandlers := TClientEventHandlers15.Create;
  Client.OnEventNotification := ClientEventHandlers.Client_EventNotification;

  WriteLn('Subscribing...');
  Client.SubscribeEvent(EndpointDescriptor, UAObjectIds_Server, 1000);

  WriteLn('Processing event notifications for 30 seconds...');
  PumpSleep(30*1000);

  WriteLn('Unsubscribing...');
  Client.UnsubscribeAllMonitoredItems;

  WriteLn('Waiting for 5 seconds...');
  Sleep(5*1000);

  WriteLn('Finished.');
  FreeAndNil(Client);
  FreeAndNil(ClientEventHandlers);
end;

// Example output (truncated):
//Subscribing...
//Processing event notifications for 30 seconds...
//
//[] Success
//
///[] Success; Refresh; RefreshInitiated
//
//All fields:
//  NodeId="BaseEventType", NodeId -> Success; nsu=http://opcfoundation.org/Quickstarts/AlarmCondition ;ns=2;s=1:Colours/EastTank?OnlineState {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
//  NodeId="BaseEventType"/EventId -> Success; [16] {95, 68, 22, 205, 114, ...} {System.Byte[]}
//  NodeId="BaseEventType"/EventType -> Success; DialogConditionType {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
//  NodeId="BaseEventType"/SourceNode -> Success; nsu=http://opcfoundation.org/Quickstarts/AlarmCondition ;ns=2;s=1:Colours/EastTank {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
//  NodeId="BaseEventType"/SourceName -> Success; EastTank {System.String}
//  NodeId="BaseEventType"/Time -> Success; 9/10/2019 8:08:23 PM {System.DateTime}
//  NodeId="BaseEventType"/ReceiveTime -> Success; 9/10/2019 8:08:23 PM {System.DateTime}
//  NodeId="BaseEventType"/LocalTime -> Success; 00:00, DST {OpcLabs.EasyOpc.UA.UATimeZoneData}
//  NodeId="BaseEventType"/Message -> Success; The dialog was activated {System.String}
//  NodeId="BaseEventType"/Severity -> Success; 100 {System.Int32}
//Source name: Success; EastTank {System.String}
//Message: Success; The dialog was activated {System.String}
//
//All fields:
//  NodeId="BaseEventType", NodeId -> Success; nsu=http://opcfoundation.org/Quickstarts/AlarmCondition ;ns=2;s=1:Colours/EastTank?Red {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
//  NodeId="BaseEventType"/EventId -> Success; [16] {124, 156, 219, 54, 120, ...} {System.Byte[]}
//  NodeId="BaseEventType"/EventType -> Success; ExclusiveDeviationAlarmType {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
//  NodeId="BaseEventType"/SourceNode -> Success; nsu=http://opcfoundation.org/Quickstarts/AlarmCondition ;ns=2;s=1:Colours/EastTank {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
//  NodeId="BaseEventType"/SourceName -> Success; EastTank {System.String}
//  NodeId="BaseEventType"/Time -> Success; 10/14/2019 4:00:13 PM {System.DateTime}
//  NodeId="BaseEventType"/ReceiveTime -> Success; 10/14/2019 4:00:13 PM {System.DateTime}
//  NodeId="BaseEventType"/LocalTime -> Success; 00:00, DST {OpcLabs.EasyOpc.UA.UATimeZoneData}
//  NodeId="BaseEventType"/Message -> Success; The alarm was acknoweledged. {System.String}
//  NodeId="BaseEventType"/Severity -> Success; 500 {System.Int32}
//Source name: Success; EastTank {System.String}
//Message: Success; The alarm was acknoweledged. {System.String}
//
//...

class function THelperMethods15.ObjectTypeIds_BaseEventType: _UANodeId;
  var NodeId: _UANodeId;
  begin
    NodeId := CoUANodeId.Create;
    NodeId.StandardName := 'BaseEventType';
    Result := NodeId;
  end;

class function THelperMethods15.UAFilterElements_SimpleAttribute(TypeId: _UANodeId; simpleRelativeBrowsePathString: string): _UASimpleAttributeOperand;
var
  BrowsePathParser: _UABrowsePathParser;
  Operand: _UASimpleAttributeOperand;
begin
  BrowsePathParser := CoUABrowsePathParser.Create;
  Operand := CoUASimpleAttributeOperand.Create;
  Operand.TypeId.NodeId := TypeId;
  Operand.QualifiedNames := BrowsePathParser.ParseRelative(simpleRelativeBrowsePathString).ToUAQualifiedNameCollection;
  Result := Operand;
end;

class function THelperMethods15.UABaseEventObject_Operands_SourceName: _UASimpleAttributeOperand;
begin
  Result := UAFilterElements_SimpleAttribute(ObjectTypeIds_BaseEventType, '/SourceName');
end;

class function THelperMethods15.UABaseEventObject_Operands_Message: _UASimpleAttributeOperand;
begin
  Result := UAFilterElements_SimpleAttribute(ObjectTypeIds_BaseEventType, '/Message');
end;

// This example shows how to display all fields of incoming events, or extract specific fields.
//
// Find all latest examples here: https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .
// OPC client and subscriber examples in PHP on GitHub: https://github.com/OPCLabs/Examples-QuickOPC-PHP .
// Missing some example? Ask us for it on our Online Forums, https://www.opclabs.com/forum/index ! You do not have to own
// a commercial license in order to use Online Forums, and we reply to every post.


class ClientEvents {
    function EventNotification($Sender, $E)
    {
        printf("\n");

        // Display the event
        if (is_null($E->EventData)) {
            printf("%s\n", $E);
            return;
        }

        printf("All fields:\n");

        foreach ($E->EventData->FieldResults as $Pair)
        {
            $AttributeField = $Pair->Key;
            $ValueResult = $Pair->Value;
            printf("  %s -> %s\n", $AttributeField, $ValueResult);
        }

        // Extracting specific fields using an event type ID and a simple relative path
        printf("Source name: %s\n", $E->EventData->FieldResults->Item(UABaseEventObject_Operands_SourceName()->ToUAAttributeField()));
        printf("Message: %s\n", $E->EventData->FieldResults->Item(UABaseEventObject_Operands_Message()->ToUAAttributeField()));
    }
}

const UAObjectIds_Server = "nsu=http://opcfoundation.org/UA/;i=2253";

$EndpointDescriptor = "opc.tcp://opcua.demo-this.com:62544/Quickstarts/AlarmConditionServer";

// Instantiate the client object and hook events
$Client = new COM("OpcLabs.EasyOpc.UA.EasyUAClient");
$ClientEvents = new ClientEvents();
com_event_sink($Client, $ClientEvents, "DEasyUAClientEvents");

printf("Subscribing...\n");
$Client->SubscribeEvent($EndpointDescriptor, UAObjectIds_Server, 1000);

printf("Processing event notifications for 30 seconds...\n");
$startTime = time(); do { com_message_pump(1000); } while (time() < $startTime + 30);

printf("Unsubscribing...\n");
$Client->UnsubscribeAllMonitoredItems;

printf("Waiting for 5 seconds...\n");
$startTime = time(); do { com_message_pump(1000); } while (time() < $startTime + 5);


function ObjectTypeIds_BaseEventType() {
    $NodeId = new COM("OpcLabs.EasyOpc.UA.AddressSpace.UANodeId");
    $NodeId->StandardName = "BaseEventType";
    return $NodeId;
}

function UAFilterElements_SimpleAttribute($TypeId, $simpleRelativeBrowsePathString) {
  $BrowsePathParser = new COM("OpcLabs.EasyOpc.UA.Navigation.Parsing.UABrowsePathParser");
  $Operand = new COM("OpcLabs.EasyOpc.UA.Filtering.UASimpleAttributeOperand");
  $Operand->TypeId->NodeId = $TypeId;
  $Operand->QualifiedNames = $BrowsePathParser->ParseRelative($simpleRelativeBrowsePathString)->ToUAQualifiedNameCollection;
  return $Operand;
}

function UABaseEventObject_Operands_SourceName() {
  return UAFilterElements_SimpleAttribute(ObjectTypeIds_BaseEventType(), "/SourceName");
}

function UABaseEventObject_Operands_Message() {
  return UAFilterElements_SimpleAttribute(ObjectTypeIds_BaseEventType(), "/Message");
}

// Example output (truncated):
//Subscribing...
//Processing event notifications for 30 seconds...
//
//[] Success
//
//[] Success; Refresh; RefreshInitiated
//
//All fields:
//  NodeId="BaseEventType", NodeId -> Success; nsu=http://opcfoundation.org/Quickstarts/AlarmCondition ;ns=2;s=1:Colours/EastTank?OnlineState {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
//  NodeId="BaseEventType"/EventId -> Success; [16] {95, 68, 22, 205, 114, ...} {System.Byte[]}
//  NodeId="BaseEventType"/EventType -> Success; DialogConditionType {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
//  NodeId="BaseEventType"/SourceNode -> Success; nsu=http://opcfoundation.org/Quickstarts/AlarmCondition ;ns=2;s=1:Colours/EastTank {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
//  NodeId="BaseEventType"/SourceName -> Success; EastTank {System.String}
//  NodeId="BaseEventType"/Time -> Success; 9/10/2019 8:08:23 PM {System.DateTime}
//  NodeId="BaseEventType"/ReceiveTime -> Success; 9/10/2019 8:08:23 PM {System.DateTime}
//  NodeId="BaseEventType"/LocalTime -> Success; 00:00, DST {OpcLabs.EasyOpc.UA.UATimeZoneData}
//  NodeId="BaseEventType"/Message -> Success; The dialog was activated {System.String}
//  NodeId="BaseEventType"/Severity -> Success; 100 {System.Int32}
//Source name: Success; EastTank {System.String}
//Message: Success; The dialog was activated {System.String}
//
//All fields:
//  NodeId="BaseEventType", NodeId -> Success; nsu=http://opcfoundation.org/Quickstarts/AlarmCondition ;ns=2;s=1:Colours/EastTank?Red {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
//  NodeId="BaseEventType"/EventId -> Success; [16] {124, 156, 219, 54, 120, ...} {System.Byte[]}
//  NodeId="BaseEventType"/EventType -> Success; ExclusiveDeviationAlarmType {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
//  NodeId="BaseEventType"/SourceNode -> Success; nsu=http://opcfoundation.org/Quickstarts/AlarmCondition ;ns=2;s=1:Colours/EastTank {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
//  NodeId="BaseEventType"/SourceName -> Success; EastTank {System.String}
//  NodeId="BaseEventType"/Time -> Success; 10/14/2019 4:00:13 PM {System.DateTime}
//  NodeId="BaseEventType"/ReceiveTime -> Success; 10/14/2019 4:00:13 PM {System.DateTime}
//  NodeId="BaseEventType"/LocalTime -> Success; 00:00, DST {OpcLabs.EasyOpc.UA.UATimeZoneData}
//  NodeId="BaseEventType"/Message -> Success; The alarm was acknoweledged. {System.String}
//  NodeId="BaseEventType"/Severity -> Success; 500 {System.Int32}
//Source name: Success; EastTank {System.String}
//Message: Success; The alarm was acknoweledged. {System.String}
//
//...


Rem This example shows how to display all fields of incoming events, or extract specific fields.
Rem
Rem Find all latest examples here: https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .
Rem OPC client and subscriber examples in VBScript on GitHub: https://github.com/OPCLabs/Examples-QuickOPC-VBScript .
Rem Missing some example? Ask us for it on our Online Forums, https://www.opclabs.com/forum/index ! You do not have to own
Rem a commercial license in order to use Online Forums, and we reply to every post.

Option Explicit

Const uaObjectIds_Server = "nsu=http://opcfoundation.org/UA/;i=2253"

Dim endpointDescriptor
endpointDescriptor = "opc.tcp://opcua.demo-this.com:62544/Quickstarts/AlarmConditionServer"

' Instantiate the client object and hook events
Dim Client: Set Client = CreateObject("OpcLabs.EasyOpc.UA.EasyUAClient")
WScript.ConnectObject Client, "Client_"

WScript.Echo "Subscribing..."
Client.SubscribeEvent endpointDescriptor, uaObjectIds_Server, 1000

WScript.Echo "Processing event notifications for 30 seconds..."
WScript.Sleep 30*1000

WScript.Echo "Unsubscribing..."
Client.UnsubscribeAllMonitoredItems

WScript.Echo "Waiting for 5 seconds..."
WScript.Sleep 5*1000




Function UAFilterElements_SimpleAttribute(TypeId, simpleRelativeBrowsePathString)
    Dim BrowsePathParser: Set BrowsePathParser = CreateObject("OpcLabs.EasyOpc.UA.Navigation.Parsing.UABrowsePathParser")
    Dim QualifiedNames: Set QualifiedNames = BrowsePathParser.ParseRelative(simpleRelativeBrowsePathString).ToUAQualifiedNAmeCollection

    Dim SimpleAttributeOperand: Set SimpleAttributeOperand = CreateObject("OpcLabs.EasyOpc.UA.Filtering.UASimpleAttributeOperand")
    Set SimpleAttributeOperand.TypeId.NodeId = TypeId
    Set SimpleAttributeOperand.QualifiedNames = QualifiedNames

    Set UAFilterElements_SimpleAttribute = SimpleAttributeOperand
End Function

Function ObjectTypeIds_BaseEventType
    Dim NodeId: Set NodeId = CreateObject("OpcLabs.EasyOpc.UA.AddressSpace.UANodeId")
    NodeId.StandardName = "BaseEventType"
    Set ObjectTypeIds_BaseEventType = NodeId
End Function

Function UABaseEventObject_Operands_Message
    Set UABaseEventObject_Operands_Message = UAFilterElements_SimpleAttribute(ObjectTypeIds_BaseEventType, "/Message")
End Function

Function UABaseEventObject_Operands_SourceName
    Set UABaseEventObject_Operands_SourceName = UAFilterElements_SimpleAttribute(ObjectTypeIds_BaseEventType, "/SourceName")
End Function

Sub Client_EventNotification(Sender, e)
    WScript.Echo

    ' Display the event
    If e.EventData Is Nothing Then
        WScript.Echo e
        Exit Sub
    End If
    WScript.Echo "All fields:"
    Dim Pair: For Each Pair In e.EventData.FieldResults
        Dim AttributeField: Set AttributeField = Pair.Key
        Dim ValueResult: Set ValueResult = Pair.Value
        WScript.Echo "  " & AttributeField & " -> " & ValueResult
    Next

    ' Extracting specific fields using an event type ID and a simple relative path
    WScript.Echo "Source name: " & e.EventData.FieldResults.Item(UABaseEventObject_Operands_SourceName.ToUAAttributeField)
    WScript.Echo "Message: " & e.EventData.FieldResults.Item(UABaseEventObject_Operands_Message.ToUAAttributeField)
End Sub



' Example output (truncated):
'Subscribing...
'Processing event notifications for 30 seconds...
'
'[] Success
'
'[] Success; Refresh; RefreshInitiated
'
'All fields:
'  NodeId="BaseEventType", NodeId -> Success; nsu=http://opcfoundation.org/Quickstarts/AlarmCondition ;ns=2;s=1:Colours/EastTank?OnlineState {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
'  NodeId="BaseEventType"/EventId -> Success; [16] {95, 68, 22, 205, 114, ...} {System.Byte[]}
'  NodeId="BaseEventType"/EventType -> Success; DialogConditionType {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
'  NodeId="BaseEventType"/SourceNode -> Success; nsu=http://opcfoundation.org/Quickstarts/AlarmCondition ;ns=2;s=1:Colours/EastTank {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
'  NodeId="BaseEventType"/SourceName -> Success; EastTank {System.String}
'  NodeId="BaseEventType"/Time -> Success; 9/10/2019 8:08:23 PM {System.DateTime}
'  NodeId="BaseEventType"/ReceiveTime -> Success; 9/10/2019 8:08:23 PM {System.DateTime}
'  NodeId="BaseEventType"/LocalTime -> Success; 00:00, DST {OpcLabs.EasyOpc.UA.UATimeZoneData}
'  NodeId="BaseEventType"/Message -> Success; The dialog was activated {System.String}
'  NodeId="BaseEventType"/Severity -> Success; 100 {System.Int32}
'Source name: Success; EastTank {System.String}
'Message: Success; The dialog was activated {System.String}
'
'All fields:
'  NodeId="BaseEventType", NodeId -> Success; nsu=http://opcfoundation.org/Quickstarts/AlarmCondition ;ns=2;s=1:Colours/EastTank?Red {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
'  NodeId="BaseEventType"/EventId -> Success; [16] {124, 156, 219, 54, 120, ...} {System.Byte[]}
'  NodeId="BaseEventType"/EventType -> Success; ExclusiveDeviationAlarmType {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
'  NodeId="BaseEventType"/SourceNode -> Success; nsu=http://opcfoundation.org/Quickstarts/AlarmCondition ;ns=2;s=1:Colours/EastTank {OpcLabs.EasyOpc.UA.AddressSpace.UANodeId}
'  NodeId="BaseEventType"/SourceName -> Success; EastTank {System.String}
'  NodeId="BaseEventType"/Time -> Success; 10/14/2019 4:00:13 PM {System.DateTime}
'  NodeId="BaseEventType"/ReceiveTime -> Success; 10/14/2019 4:00:13 PM {System.DateTime}
'  NodeId="BaseEventType"/LocalTime -> Success; 00:00, DST {OpcLabs.EasyOpc.UA.UATimeZoneData}
'  NodeId="BaseEventType"/Message -> Success; The alarm was acknoweledged. {System.String}
'  NodeId="BaseEventType"/Severity -> Success; 500 {System.Int32}
'Source name: Success; EastTank {System.String}
'Message: Success; The alarm was acknoweledged. {System.String}
'
'...

# This example shows how to display all fields of incoming events, or extract specific fields.
#
# Find all latest examples here: https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .
# OPC client and subscriber examples in Python on GitHub: https://github.com/OPCLabs/Examples-QuickOPC-Python .
# Missing some example? Ask us for it on our Online Forums, https://www.opclabs.com/forum/index ! You do not have to own
# a commercial license in order to use Online Forums, and we reply to every post.
# The QuickOPC package is needed. Install it using "pip install opclabs_quickopc".
import opclabs_quickopc
import time

# Import .NET namespaces.
from OpcLabs.EasyOpc.UA import *
from OpcLabs.EasyOpc.UA.AddressSpace.Standard import *
from OpcLabs.EasyOpc.UA.AlarmsAndConditions import *
from OpcLabs.EasyOpc.UA.Filtering import *
from OpcLabs.EasyOpc.UA.OperationModel import *


def eventNotification(sender, eventArgs):
    print()

    # Display the event.
    if eventArgs.EventData is None:
        print(eventArgs)
        return
    print('All fields:')
    for pair in eventArgs.EventData.FieldResults:
        attributeField = pair.Key
        valueResult = pair.Value
        print('  ', attributeField, ' -> ', valueResult, sep='')

    # Extracting a specific field using a standard operand symbol.
    print('Source name: ',
          eventArgs.EventData.FieldResults.get_Item(UAAttributeField(UABaseEventObject.Operands.SourceName)),
          sep='')

    # Extracting a specific field using an event type ID and a simple relative path.
    print('Message: ',
          eventArgs.EventData.FieldResults.get_Item(UAAttributeField(
              UAFilterElements.SimpleAttribute(UANodeDescriptor(UAObjectTypeIds.BaseEventType), '/Message'))),
          sep='')


# Define which server we will work with.
endpointDescriptor = UAEndpointDescriptor('opc.tcp://opcua.demo-this.com:62544/Quickstarts/AlarmConditionServer')

# Instantiate the client object and hook events.
client = EasyUAClient()
client.EventNotification += eventNotification

print('Subscribing...')
IEasyUAClientExtension.SubscribeEvent(
    client,
    endpointDescriptor,
    UANodeDescriptor(UAObjectIds.Server),
    1000)

print('Processing event notifications for 30 seconds...')
time.sleep(30)

print()
print('Unsubscribing...')
client.UnsubscribeAllMonitoredItems()

print('Waiting for 5 seconds...')
time.sleep(5)

print('Finished.')

// This example shows how to subscribe to event notifications and display each incoming event.
//
// Find all latest examples here: https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .
// OPC client and subscriber examples in C# on GitHub: https://github.com/OPCLabs/Examples-QuickOPC-CSharp .
// Missing some example? Ask us for it on our Online Forums, https://www.opclabs.com/forum/index ! You do not have to own
// a commercial license in order to use Online Forums, and we reply to every post.

using System;
using OpcLabs.EasyOpc.UA;
using OpcLabs.EasyOpc.UA.AddressSpace.Standard;
using OpcLabs.EasyOpc.UA.OperationModel;

namespace UADocExamples.AlarmsAndConditions
{
    partial class SubscribeEvent
    {
        public static void Overload1()
        {
            // Define which server we will work with.
            UAEndpointDescriptor endpointDescriptor =
                "opc.tcp://opcua.demo-this.com:62544/Quickstarts/AlarmConditionServer";

            // Instantiate the client object and hook events.
            var client = new EasyUAClient();
            client.EventNotification += client_EventNotification;

            Console.WriteLine("Subscribing...");
            client.SubscribeEvent(endpointDescriptor, UAObjectIds.Server, 1000);

            Console.WriteLine("Processing event notifications for 30 seconds...");
            System.Threading.Thread.Sleep(30 * 1000);

            Console.WriteLine("Unsubscribing...");
            client.UnsubscribeAllMonitoredItems();

            Console.WriteLine("Waiting for 5 seconds...");
            System.Threading.Thread.Sleep(5 * 1000);

            Console.WriteLine("Finished.");
        }

        static void client_EventNotification(object sender, EasyUAEventNotificationEventArgs e)
        {
            // Display the event.
            Console.WriteLine(e);
        }



        // Example output (truncated):
        //Subscribing...
        //Processing event notifications for 30 seconds...
        //[] Success
        //[] Success; Refresh; RefreshInitiated
        //[] Success; Refresh; [EastTank] 100! {DialogConditionType} "The dialog was activated" @9/9/2021 2:22:18 PM (10 fields)
        //[] Success; Refresh; [EastTank] 100! {ExclusiveDeviationAlarmType} "The alarm is active." @9/9/2021 4:19:37 PM (10 fields)
        //[] Success; Refresh; [EastTank] 500! {NonExclusiveLevelAlarmType} "The alarm severity has increased." @9/9/2021 4:19:35 PM (10 fields)
        //[] Success; Refresh; [EastTank] 900! {TripAlarmType} "The alarm severity has increased." @9/9/2021 4:19:29 PM (10 fields)
        //[] Success; Refresh; [EastTank] 100! {TripAlarmType} "The alarm severity has increased." @9/9/2021 3:39:03 PM (10 fields)
        //[] Success; Refresh; [EastTank] 100! {TripAlarmType} "The alarm severity has increased." @9/9/2021 3:40:03 PM (10 fields)
        //[] Success; Refresh; [NorthMotor] 100! {DialogConditionType} "The dialog was activated" @9/9/2021 2:22:18 PM (10 fields)
        //[] Success; Refresh; [NorthMotor] 500! {ExclusiveDeviationAlarmType} "The alarm severity has increased." @9/9/2021 4:19:35 PM (10 fields)
        //[] Success; Refresh; [NorthMotor] 900! {NonExclusiveLevelAlarmType} "The alarm severity has increased." @9/9/2021 4:19:29 PM (10 fields)
        //[] Success; Refresh; [NorthMotor] 100! {TripAlarmType} "The alarm is active." @9/9/2021 4:19:32 PM (10 fields)
        //[] Success; Refresh; [NorthMotor] 100! {TripAlarmType} "The alarm severity has increased." @9/9/2021 3:39:08 PM (10 fields)
        //[] Success; Refresh; [NorthMotor] 100! {TripAlarmType} "The alarm severity has increased." @9/9/2021 3:40:14 PM (10 fields)
        //[] Success; Refresh; [WestTank] 100! {DialogConditionType} "The dialog was activated" @9/9/2021 2:22:18 PM (10 fields)
        //[] Success; Refresh; [WestTank] 900! {ExclusiveDeviationAlarmType} "The alarm severity has increased." @9/9/2021 4:19:29 PM (10 fields)
        //[] Success; Refresh; [WestTank] 100! {NonExclusiveLevelAlarmType} "The alarm is active." @9/9/2021 4:19:32 PM (10 fields)
        //[] Success; Refresh; [WestTank] 100! {TripAlarmType} "The alarm is active." @9/9/2021 4:19:37 PM (10 fields)
        //[] Success; Refresh; [WestTank] 100! {TripAlarmType} "The alarm severity has increased." @9/9/2021 3:38:55 PM (10 fields)
        //[] Success; Refresh; [WestTank] 100! {TripAlarmType} "The alarm severity has increased." @9/9/2021 3:39:43 PM (10 fields)
        //[] Success; Refresh; [SouthMotor] 100! {DialogConditionType} "The dialog was activated" @9/9/2021 2:22:18 PM (10 fields)
        //[] Success; Refresh; [SouthMotor] 100! {ExclusiveDeviationAlarmType} "The alarm is active." @9/9/2021 4:19:32 PM (10 fields)
        //[] Success; Refresh; [SouthMotor] 100! {NonExclusiveLevelAlarmType} "The alarm is active." @9/9/2021 4:19:37 PM (10 fields)
        //[] Success; Refresh; [SouthMotor] 500! {TripAlarmType} "The alarm severity has increased." @9/9/2021 4:19:35 PM (10 fields)
        //[] Success; Refresh; [SouthMotor] 100! {TripAlarmType} "The alarm severity has increased." @9/9/2021 3:39:51 PM (10 fields)
        //[] Success; Refresh; [SouthMotor] 100! {TripAlarmType} "The alarm severity has increased." @9/9/2021 3:38:57 PM (10 fields)
        //[] Success; Refresh; RefreshComplete
        //[] Success; [Internal] 500! {SystemEventType} "Raising Events" @9/9/2021 4:19:39 PM (10 fields)
        //[] Success; [Internal] 500! {AuditEventType} "Events Raised" @9/9/2021 4:19:39 PM (10 fields)
        //[] Success; [EastTank] 100! {TripAlarmType} "The alarm was deactivated by the system." @9/9/2021 4:19:39 PM (10 fields)
        //[] Success; [NorthMotor] 100! {NonExclusiveLevelAlarmType} "The alarm was deactivated by the system." @9/9/2021 4:19:39 PM (10 fields)
        //[] Success; [WestTank] 100! {ExclusiveDeviationAlarmType} "The alarm was deactivated by the system." @9/9/2021 4:19:39 PM (10 fields)
        //[] Success; [Internal] 500! {SystemEventType} "Raising Events" @9/9/2021 4:19:40 PM (10 fields)
        //[] Success; [Internal] 500! {AuditEventType} "Events Raised" @9/9/2021 4:19:40 PM (10 fields)
        //[] Success; [Internal] 500! {SystemEventType} "Raising Events" @9/9/2021 4:19:41 PM (10 fields)
        //[] Success; [Internal] 500! {AuditEventType} "Events Raised" @9/9/2021 4:19:41 PM (10 fields)
        //[] Success; [Internal] 500! {SystemEventType} "Raising Events" @9/9/2021 4:19:42 PM (10 fields)
        //[] Success; [Internal] 500! {AuditEventType} "Events Raised" @9/9/2021 4:19:42 PM (10 fields)
        //[] Success; [Internal] 500! {SystemEventType} "Raising Events" @9/9/2021 4:19:43 PM (10 fields)
        //[] Success; [NorthMotor] 300! {TripAlarmType} "The alarm severity has increased." @9/9/2021 4:19:43 PM (10 fields)
        //[] Success; [Internal] 500! {AuditEventType} "Events Raised" @9/9/2021 4:19:43 PM (10 fields)
        //[] Success; [WestTank] 300! {NonExclusiveLevelAlarmType} "The alarm severity has increased." @9/9/2021 4:19:43 PM (10 fields)
        //[] Success; [SouthMotor] 300! {ExclusiveDeviationAlarmType} "The alarm severity has increased." @9/9/2021 4:19:43 PM (10 fields)
        //[] Success; [Internal] 500! {SystemEventType} "Raising Events" @9/9/2021 4:19:44 PM (10 fields)
        //[] Success; [EastTank] 700! {NonExclusiveLevelAlarmType} "The alarm severity has increased." @9/9/2021 4:19:44 PM (10 fields)
        //[] Success; [Internal] 500! {AuditEventType} "Events Raised" @9/9/2021 4:19:44 PM (10 fields)
        //[] Success; [NorthMotor] 700! {ExclusiveDeviationAlarmType} "The alarm severity has increased." @9/9/2021 4:19:44 PM (10 fields)
        //[] Success; [SouthMotor] 700! {TripAlarmType} "The alarm severity has increased." @9/9/2021 4:19:44 PM (10 fields)
        //[] Success; [Internal] 500! {SystemEventType} "Raising Events" @9/9/2021 4:19:45 PM (10 fields)
        //[] Success; [EastTank] 300! {ExclusiveDeviationAlarmType} "The alarm severity has increased." @9/9/2021 4:19:45 PM (10 fields)
        //[] Success; [Internal] 500! {AuditEventType} "Events Raised" @9/9/2021 4:19:45 PM (10 fields)
        //...
    }
}
# This example shows how to subscribe to event notifications and display each incoming event.
#
# Find all latest examples here: https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .
# OPC client and subscriber examples in PowerShell on GitHub: https://github.com/OPCLabs/Examples-QuickOPC-PowerShell .
# Missing some example? Ask us for it on our Online Forums, https://www.opclabs.com/forum/index ! You do not have to own
# a commercial license in order to use Online Forums, and we reply to every post.

#requires -Version 5.1
using namespace OpcLabs.EasyOpc.UA
using namespace OpcLabs.EasyOpc.UA.AddressSpace
using namespace OpcLabs.EasyOpc.UA.AddressSpace.Standard

# The path below assumes that the current directory is [ProductDir]/Examples-NET/PowerShell/Windows .
Add-Type -Path "../../../Components/Opclabs.QuickOpc/net472/OpcLabs.EasyOpcUA.dll"
Add-Type -Path "../../../Components/Opclabs.QuickOpc/net472/OpcLabs.EasyOpcUAComponents.dll"

# Define which server we will work with.
[UAEndpointDescriptor]$endpointDescriptor = "opc.tcp://opcua.demo-this.com:62544/Quickstarts/AlarmConditionServer"

# Instantiate the client object.
$client = New-Object EasyUAClient

# Event notification handler
Register-ObjectEvent -InputObject $client -EventName EventNotification -Action {
    # Display the event.
    Write-Host $EventArgs
}

Write-Host "Subscribing..."
[IEasyUAClientExtension]::SubscribeEvent($client, $endpointDescriptor, [UAObjectIds]::Server, 1000)

Write-Host "Processing event notifications for 30 seconds..."
$stopwatch =  [System.Diagnostics.Stopwatch]::StartNew()
while ($stopwatch.Elapsed.TotalSeconds -lt 30) {
    Start-Sleep -Seconds 1
}

Write-Host "Unsubscribing..."
$client.UnsubscribeAllMonitoredItems()

Write-Host "Waiting for 5 seconds..."
Start-Sleep -Seconds 5

Write-Host "Finished."


# Example output (truncated):
#Subscribing...
#Processing event notifications for 30 seconds...
#[] Success
#[] Success; Refresh; RefreshInitiated
#[] Success; Refresh; [EastTank] 100! {DialogConditionType} "The dialog was activated" @9/9/2021 2:22:18 PM (10 fields)
#[] Success; Refresh; [EastTank] 100! {ExclusiveDeviationAlarmType} "The alarm is active." @9/9/2021 4:19:37 PM (10 fields)
#[] Success; Refresh; [EastTank] 500! {NonExclusiveLevelAlarmType} "The alarm severity has increased." @9/9/2021 4:19:35 PM (10 fields)
#[] Success; Refresh; [EastTank] 900! {TripAlarmType} "The alarm severity has increased." @9/9/2021 4:19:29 PM (10 fields)
#[] Success; Refresh; [EastTank] 100! {TripAlarmType} "The alarm severity has increased." @9/9/2021 3:39:03 PM (10 fields)
#[] Success; Refresh; [EastTank] 100! {TripAlarmType} "The alarm severity has increased." @9/9/2021 3:40:03 PM (10 fields)
#[] Success; Refresh; [NorthMotor] 100! {DialogConditionType} "The dialog was activated" @9/9/2021 2:22:18 PM (10 fields)
#[] Success; Refresh; [NorthMotor] 500! {ExclusiveDeviationAlarmType} "The alarm severity has increased." @9/9/2021 4:19:35 PM (10 fields)
#[] Success; Refresh; [NorthMotor] 900! {NonExclusiveLevelAlarmType} "The alarm severity has increased." @9/9/2021 4:19:29 PM (10 fields)
#[] Success; Refresh; [NorthMotor] 100! {TripAlarmType} "The alarm is active." @9/9/2021 4:19:32 PM (10 fields)
#[] Success; Refresh; [NorthMotor] 100! {TripAlarmType} "The alarm severity has increased." @9/9/2021 3:39:08 PM (10 fields)
#[] Success; Refresh; [NorthMotor] 100! {TripAlarmType} "The alarm severity has increased." @9/9/2021 3:40:14 PM (10 fields)
#[] Success; Refresh; [WestTank] 100! {DialogConditionType} "The dialog was activated" @9/9/2021 2:22:18 PM (10 fields)
#[] Success; Refresh; [WestTank] 900! {ExclusiveDeviationAlarmType} "The alarm severity has increased." @9/9/2021 4:19:29 PM (10 fields)
#[] Success; Refresh; [WestTank] 100! {NonExclusiveLevelAlarmType} "The alarm is active." @9/9/2021 4:19:32 PM (10 fields)
#[] Success; Refresh; [WestTank] 100! {TripAlarmType} "The alarm is active." @9/9/2021 4:19:37 PM (10 fields)
#[] Success; Refresh; [WestTank] 100! {TripAlarmType} "The alarm severity has increased." @9/9/2021 3:38:55 PM (10 fields)
#[] Success; Refresh; [WestTank] 100! {TripAlarmType} "The alarm severity has increased." @9/9/2021 3:39:43 PM (10 fields)
#[] Success; Refresh; [SouthMotor] 100! {DialogConditionType} "The dialog was activated" @9/9/2021 2:22:18 PM (10 fields)
#[] Success; Refresh; [SouthMotor] 100! {ExclusiveDeviationAlarmType} "The alarm is active." @9/9/2021 4:19:32 PM (10 fields)
#[] Success; Refresh; [SouthMotor] 100! {NonExclusiveLevelAlarmType} "The alarm is active." @9/9/2021 4:19:37 PM (10 fields)
#[] Success; Refresh; [SouthMotor] 500! {TripAlarmType} "The alarm severity has increased." @9/9/2021 4:19:35 PM (10 fields)
#[] Success; Refresh; [SouthMotor] 100! {TripAlarmType} "The alarm severity has increased." @9/9/2021 3:39:51 PM (10 fields)
#[] Success; Refresh; [SouthMotor] 100! {TripAlarmType} "The alarm severity has increased." @9/9/2021 3:38:57 PM (10 fields)
#[] Success; Refresh; RefreshComplete
#[] Success; [Internal] 500! {SystemEventType} "Raising Events" @9/9/2021 4:19:39 PM (10 fields)
#[] Success; [Internal] 500! {AuditEventType} "Events Raised" @9/9/2021 4:19:39 PM (10 fields)
#[] Success; [EastTank] 100! {TripAlarmType} "The alarm was deactivated by the system." @9/9/2021 4:19:39 PM (10 fields)
#[] Success; [NorthMotor] 100! {NonExclusiveLevelAlarmType} "The alarm was deactivated by the system." @9/9/2021 4:19:39 PM (10 fields)
#[] Success; [WestTank] 100! {ExclusiveDeviationAlarmType} "The alarm was deactivated by the system." @9/9/2021 4:19:39 PM (10 fields)
#[] Success; [Internal] 500! {SystemEventType} "Raising Events" @9/9/2021 4:19:40 PM (10 fields)
#[] Success; [Internal] 500! {AuditEventType} "Events Raised" @9/9/2021 4:19:40 PM (10 fields)
#[] Success; [Internal] 500! {SystemEventType} "Raising Events" @9/9/2021 4:19:41 PM (10 fields)
#[] Success; [Internal] 500! {AuditEventType} "Events Raised" @9/9/2021 4:19:41 PM (10 fields)
#[] Success; [Internal] 500! {SystemEventType} "Raising Events" @9/9/2021 4:19:42 PM (10 fields)
#[] Success; [Internal] 500! {AuditEventType} "Events Raised" @9/9/2021 4:19:42 PM (10 fields)
#[] Success; [Internal] 500! {SystemEventType} "Raising Events" @9/9/2021 4:19:43 PM (10 fields)
#[] Success; [NorthMotor] 300! {TripAlarmType} "The alarm severity has increased." @9/9/2021 4:19:43 PM (10 fields)
#[] Success; [Internal] 500! {AuditEventType} "Events Raised" @9/9/2021 4:19:43 PM (10 fields)
#[] Success; [WestTank] 300! {NonExclusiveLevelAlarmType} "The alarm severity has increased." @9/9/2021 4:19:43 PM (10 fields)
#[] Success; [SouthMotor] 300! {ExclusiveDeviationAlarmType} "The alarm severity has increased." @9/9/2021 4:19:43 PM (10 fields)
#[] Success; [Internal] 500! {SystemEventType} "Raising Events" @9/9/2021 4:19:44 PM (10 fields)
#[] Success; [EastTank] 700! {NonExclusiveLevelAlarmType} "The alarm severity has increased." @9/9/2021 4:19:44 PM (10 fields)
#[] Success; [Internal] 500! {AuditEventType} "Events Raised" @9/9/2021 4:19:44 PM (10 fields)
#[] Success; [NorthMotor] 700! {ExclusiveDeviationAlarmType} "The alarm severity has increased." @9/9/2021 4:19:44 PM (10 fields)
#[] Success; [SouthMotor] 700! {TripAlarmType} "The alarm severity has increased." @9/9/2021 4:19:44 PM (10 fields)
#[] Success; [Internal] 500! {SystemEventType} "Raising Events" @9/9/2021 4:19:45 PM (10 fields)
#[] Success; [EastTank] 300! {ExclusiveDeviationAlarmType} "The alarm severity has increased." @9/9/2021 4:19:45 PM (10 fields)
#[] Success; [Internal] 500! {AuditEventType} "Events Raised" @9/9/2021 4:19:45 PM (10 fields)
#...

' This example shows how to subscribe to event notifications and display each incoming event.
'
' Find all latest examples here: https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .
' OPC client and subscriber examples in VB.NET on GitHub: https://github.com/OPCLabs/Examples-QuickOPC-VBNET .
' Missing some example? Ask us for it on our Online Forums, https://www.opclabs.com/forum/index ! You do not have to own
' a commercial license in order to use Online Forums, and we reply to every post.

Imports OpcLabs.EasyOpc.UA
Imports OpcLabs.EasyOpc.UA.AddressSpace.Standard
Imports OpcLabs.EasyOpc.UA.OperationModel

Namespace AlarmsAndConditions
    Friend Class SubscribeEvent
        Public Shared Sub Overload1()
            ' Instantiate the client object and hook events
            Dim client = New EasyUAClient()
            AddHandler client.EventNotification, AddressOf client_EventNotification

            Console.WriteLine("Subscribing...")
            client.SubscribeEvent( _
                "opc.tcp://opcua.demo-this.com:62544/Quickstarts/AlarmConditionServer", _
                UAObjectIds.Server, _
                1000)

            Console.WriteLine("Processing event notifications for 10 seconds...")
            Threading.Thread.Sleep(10 * 1000)

            Console.WriteLine("Unsubscribing...")
            client.UnsubscribeAllMonitoredItems()

            Console.WriteLine("Waiting for 5 seconds...")
            Threading.Thread.Sleep(5 * 1000)
        End Sub

        Private Shared Sub client_EventNotification(ByVal sender As Object, ByVal e As EasyUAEventNotificationEventArgs)
            ' Display the event
            Console.WriteLine(e)
        End Sub



        ' Example output (truncated):
        'Subscribing...
        'Processing event notifications for 30 seconds...
        '[] Success
        '[] Success; Refresh; RefreshInitiated
        '[] Success; Refresh; [EastTank] 100! {DialogConditionType} "The dialog was activated" @9/9/2021 2:22:18 PM (10 fields)
        '[] Success; Refresh; [EastTank] 100! {ExclusiveDeviationAlarmType} "The alarm is active." @9/9/2021 4:19:37 PM (10 fields)
        '[] Success; Refresh; [EastTank] 500! {NonExclusiveLevelAlarmType} "The alarm severity has increased." @9/9/2021 4:19:35 PM (10 fields)
        '[] Success; Refresh; [EastTank] 900! {TripAlarmType} "The alarm severity has increased." @9/9/2021 4:19:29 PM (10 fields)
        '[] Success; Refresh; [EastTank] 100! {TripAlarmType} "The alarm severity has increased." @9/9/2021 3:39:03 PM (10 fields)
        '[] Success; Refresh; [EastTank] 100! {TripAlarmType} "The alarm severity has increased." @9/9/2021 3:40:03 PM (10 fields)
        '[] Success; Refresh; [NorthMotor] 100! {DialogConditionType} "The dialog was activated" @9/9/2021 2:22:18 PM (10 fields)
        '[] Success; Refresh; [NorthMotor] 500! {ExclusiveDeviationAlarmType} "The alarm severity has increased." @9/9/2021 4:19:35 PM (10 fields)
        '[] Success; Refresh; [NorthMotor] 900! {NonExclusiveLevelAlarmType} "The alarm severity has increased." @9/9/2021 4:19:29 PM (10 fields)
        '[] Success; Refresh; [NorthMotor] 100! {TripAlarmType} "The alarm is active." @9/9/2021 4:19:32 PM (10 fields)
        '[] Success; Refresh; [NorthMotor] 100! {TripAlarmType} "The alarm severity has increased." @9/9/2021 3:39:08 PM (10 fields)
        '[] Success; Refresh; [NorthMotor] 100! {TripAlarmType} "The alarm severity has increased." @9/9/2021 3:40:14 PM (10 fields)
        '[] Success; Refresh; [WestTank] 100! {DialogConditionType} "The dialog was activated" @9/9/2021 2:22:18 PM (10 fields)
        '[] Success; Refresh; [WestTank] 900! {ExclusiveDeviationAlarmType} "The alarm severity has increased." @9/9/2021 4:19:29 PM (10 fields)
        '[] Success; Refresh; [WestTank] 100! {NonExclusiveLevelAlarmType} "The alarm is active." @9/9/2021 4:19:32 PM (10 fields)
        '[] Success; Refresh; [WestTank] 100! {TripAlarmType} "The alarm is active." @9/9/2021 4:19:37 PM (10 fields)
        '[] Success; Refresh; [WestTank] 100! {TripAlarmType} "The alarm severity has increased." @9/9/2021 3:38:55 PM (10 fields)
        '[] Success; Refresh; [WestTank] 100! {TripAlarmType} "The alarm severity has increased." @9/9/2021 3:39:43 PM (10 fields)
        '[] Success; Refresh; [SouthMotor] 100! {DialogConditionType} "The dialog was activated" @9/9/2021 2:22:18 PM (10 fields)
        '[] Success; Refresh; [SouthMotor] 100! {ExclusiveDeviationAlarmType} "The alarm is active." @9/9/2021 4:19:32 PM (10 fields)
        '[] Success; Refresh; [SouthMotor] 100! {NonExclusiveLevelAlarmType} "The alarm is active." @9/9/2021 4:19:37 PM (10 fields)
        '[] Success; Refresh; [SouthMotor] 500! {TripAlarmType} "The alarm severity has increased." @9/9/2021 4:19:35 PM (10 fields)
        '[] Success; Refresh; [SouthMotor] 100! {TripAlarmType} "The alarm severity has increased." @9/9/2021 3:39:51 PM (10 fields)
        '[] Success; Refresh; [SouthMotor] 100! {TripAlarmType} "The alarm severity has increased." @9/9/2021 3:38:57 PM (10 fields)
        '[] Success; Refresh; RefreshComplete
        '[] Success; [Internal] 500! {SystemEventType} "Raising Events" @9/9/2021 4:19:39 PM (10 fields)
        '[] Success; [Internal] 500! {AuditEventType} "Events Raised" @9/9/2021 4:19:39 PM (10 fields)
        '[] Success; [EastTank] 100! {TripAlarmType} "The alarm was deactivated by the system." @9/9/2021 4:19:39 PM (10 fields)
        '[] Success; [NorthMotor] 100! {NonExclusiveLevelAlarmType} "The alarm was deactivated by the system." @9/9/2021 4:19:39 PM (10 fields)
        '[] Success; [WestTank] 100! {ExclusiveDeviationAlarmType} "The alarm was deactivated by the system." @9/9/2021 4:19:39 PM (10 fields)
        '[] Success; [Internal] 500! {SystemEventType} "Raising Events" @9/9/2021 4:19:40 PM (10 fields)
        '[] Success; [Internal] 500! {AuditEventType} "Events Raised" @9/9/2021 4:19:40 PM (10 fields)
        '[] Success; [Internal] 500! {SystemEventType} "Raising Events" @9/9/2021 4:19:41 PM (10 fields)
        '[] Success; [Internal] 500! {AuditEventType} "Events Raised" @9/9/2021 4:19:41 PM (10 fields)
        '[] Success; [Internal] 500! {SystemEventType} "Raising Events" @9/9/2021 4:19:42 PM (10 fields)
        '[] Success; [Internal] 500! {AuditEventType} "Events Raised" @9/9/2021 4:19:42 PM (10 fields)
        '[] Success; [Internal] 500! {SystemEventType} "Raising Events" @9/9/2021 4:19:43 PM (10 fields)
        '[] Success; [NorthMotor] 300! {TripAlarmType} "The alarm severity has increased." @9/9/2021 4:19:43 PM (10 fields)
        '[] Success; [Internal] 500! {AuditEventType} "Events Raised" @9/9/2021 4:19:43 PM (10 fields)
        '[] Success; [WestTank] 300! {NonExclusiveLevelAlarmType} "The alarm severity has increased." @9/9/2021 4:19:43 PM (10 fields)
        '[] Success; [SouthMotor] 300! {ExclusiveDeviationAlarmType} "The alarm severity has increased." @9/9/2021 4:19:43 PM (10 fields)
        '[] Success; [Internal] 500! {SystemEventType} "Raising Events" @9/9/2021 4:19:44 PM (10 fields)
        '[] Success; [EastTank] 700! {NonExclusiveLevelAlarmType} "The alarm severity has increased." @9/9/2021 4:19:44 PM (10 fields)
        '[] Success; [Internal] 500! {AuditEventType} "Events Raised" @9/9/2021 4:19:44 PM (10 fields)
        '[] Success; [NorthMotor] 700! {ExclusiveDeviationAlarmType} "The alarm severity has increased." @9/9/2021 4:19:44 PM (10 fields)
        '[] Success; [SouthMotor] 700! {TripAlarmType} "The alarm severity has increased." @9/9/2021 4:19:44 PM (10 fields)
        '[] Success; [Internal] 500! {SystemEventType} "Raising Events" @9/9/2021 4:19:45 PM (10 fields)
        '[] Success; [EastTank] 300! {ExclusiveDeviationAlarmType} "The alarm severity has increased." @9/9/2021 4:19:45 PM (10 fields)
        '[] Success; [Internal] 500! {AuditEventType} "Events Raised" @9/9/2021 4:19:45 PM (10 fields)
        '...

    End Class
End Namespace

// This example shows how to subscribe to event notifications and display each
// incoming event.
//
// Find all latest examples here: https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .
// Missing some example? Ask us for it on our Online Forums, https://www.opclabs.com/forum/index ! You do not have to own
// a commercial license in order to use Online Forums, and we reply to every post.

type
  TClientEventHandlers2 = class
    procedure OnEventNotification(
      Sender: TObject;
      sender0: OleVariant;
      eventArgs: _EasyUAEventNotificationEventArgs);
  end;

procedure TClientEventHandlers2.OnEventNotification(
  Sender: TObject;
  sender0: OleVariant;
  eventArgs: _EasyUAEventNotificationEventArgs);
begin
  // Display the event
  WriteLn(eventArgs.ToString);
end;

class procedure SubscribeEvent.Main;
var
  Client: EasyUAClient;
  EvsClient: TEvsEasyUAClient;
  ClientEventHandlers2: TClientEventHandlers2;
begin
  // Instantiate the client object and hook events
  EvsClient := TEvsEasyUAClient.Create(nil);
  Client := EvsClient.ComServer;
  ClientEventHandlers2 := TClientEventHandlers2.Create;
  EvsClient.OnEventNotification := @ClientEventHandlers2.OnEventNotification;

  WriteLn('Subscribing...');
  Client.SubscribeEvent(
    'opc.tcp://opcua.demo-this.com:62544/Quickstarts/AlarmConditionServer',
    'nsu=http://opcfoundation.org/UA/;i=2253',  // UAObjectIds.Server
    1000);

  WriteLn('Processing event notifications for 30 seconds...');
  PumpSleep(30*1000);

  WriteLn('Unsubscribing...');
  Client.UnsubscribeAllMonitoredItems;

  WriteLn('Waiting for 5 seconds...');
  PumpSleep(5*1000);
end;
// This example shows how to subscribe to event notifications and display each incoming event.
//
// Find all latest examples here: https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .
// OPC client and subscriber examples in Object Pascal (Delphi) on GitHub: https://github.com/OPCLabs/Examples-QuickOPC-OP .
// Missing some example? Ask us for it on our Online Forums, https://www.opclabs.com/forum/index ! You do not have to own
// a commercial license in order to use Online Forums, and we reply to every post.

type
  TClientEventHandlers18 = class
    procedure Client_EventNotification(
      ASender: TObject;
      sender: OleVariant;
      const eventArgs: _EasyUAEventNotificationEventArgs);
  end;

procedure TClientEventHandlers18.Client_EventNotification(
  ASender: TObject;
  sender: OleVariant;
  const eventArgs: _EasyUAEventNotificationEventArgs);
begin
  // Display the event
  if eventArgs.Succeeded then
    WriteLn(eventArgs.ToString)
  else
    WriteLn(Format('*** Failure: %s', [eventArgs.ErrorMessageBrief]));
end;

class procedure SubscribeEvent.Main;
const
  UAObjectIds_Server = 'nsu=http://opcfoundation.org/UA/;i=2253';
var
  Client: TEasyUAClient;
  ClientEventHandlers: TClientEventHandlers18;
  EndpointDescriptor: string;
begin
  EndpointDescriptor := 'opc.tcp://opcua.demo-this.com:62544/Quickstarts/AlarmConditionServer';

  // Instantiate the client object and hook events
  Client := TEasyUAClient.Create(nil);
  ClientEventHandlers := TClientEventHandlers18.Create;
  Client.OnEventNotification := ClientEventHandlers.Client_EventNotification;

  WriteLn('Subscribing...');
  Client.SubscribeEvent(EndpointDescriptor, UAObjectIds_Server, 1000);

  WriteLn('Processing event notifications for 30 seconds...');
  PumpSleep(30*1000);

  WriteLn('Unsubscribing...');
  Client.UnsubscribeAllMonitoredItems;

  WriteLn('Waiting for 5 seconds...');
  Sleep(5*1000);

  WriteLn('Finished.');
  FreeAndNil(Client);
  FreeAndNil(ClientEventHandlers);

end;



// Example output (truncated):
//Subscribing...
//Processing event notifications for 30 seconds...
//[] Success
//[] Success; Refresh; RefreshInitiated
//[] Success; Refresh; [EastTank] 100! {DialogConditionType} "The dialog was activated" @9/9/2021 2:22:18 PM (10 fields)
//[] Success; Refresh; [EastTank] 100! {ExclusiveDeviationAlarmType} "The alarm is active." @9/9/2021 4:19:37 PM (10 fields)
//[] Success; Refresh; [EastTank] 500! {NonExclusiveLevelAlarmType} "The alarm severity has increased." @9/9/2021 4:19:35 PM (10 fields)
//[] Success; Refresh; [EastTank] 900! {TripAlarmType} "The alarm severity has increased." @9/9/2021 4:19:29 PM (10 fields)
//[] Success; Refresh; [EastTank] 100! {TripAlarmType} "The alarm severity has increased." @9/9/2021 3:39:03 PM (10 fields)
//[] Success; Refresh; [EastTank] 100! {TripAlarmType} "The alarm severity has increased." @9/9/2021 3:40:03 PM (10 fields)
//[] Success; Refresh; [NorthMotor] 100! {DialogConditionType} "The dialog was activated" @9/9/2021 2:22:18 PM (10 fields)
//[] Success; Refresh; [NorthMotor] 500! {ExclusiveDeviationAlarmType} "The alarm severity has increased." @9/9/2021 4:19:35 PM (10 fields)
//[] Success; Refresh; [NorthMotor] 900! {NonExclusiveLevelAlarmType} "The alarm severity has increased." @9/9/2021 4:19:29 PM (10 fields)
//[] Success; Refresh; [NorthMotor] 100! {TripAlarmType} "The alarm is active." @9/9/2021 4:19:32 PM (10 fields)
//[] Success; Refresh; [NorthMotor] 100! {TripAlarmType} "The alarm severity has increased." @9/9/2021 3:39:08 PM (10 fields)
//[] Success; Refresh; [NorthMotor] 100! {TripAlarmType} "The alarm severity has increased." @9/9/2021 3:40:14 PM (10 fields)
//[] Success; Refresh; [WestTank] 100! {DialogConditionType} "The dialog was activated" @9/9/2021 2:22:18 PM (10 fields)
//[] Success; Refresh; [WestTank] 900! {ExclusiveDeviationAlarmType} "The alarm severity has increased." @9/9/2021 4:19:29 PM (10 fields)
//[] Success; Refresh; [WestTank] 100! {NonExclusiveLevelAlarmType} "The alarm is active." @9/9/2021 4:19:32 PM (10 fields)
//[] Success; Refresh; [WestTank] 100! {TripAlarmType} "The alarm is active." @9/9/2021 4:19:37 PM (10 fields)
//[] Success; Refresh; [WestTank] 100! {TripAlarmType} "The alarm severity has increased." @9/9/2021 3:38:55 PM (10 fields)
//[] Success; Refresh; [WestTank] 100! {TripAlarmType} "The alarm severity has increased." @9/9/2021 3:39:43 PM (10 fields)
//[] Success; Refresh; [SouthMotor] 100! {DialogConditionType} "The dialog was activated" @9/9/2021 2:22:18 PM (10 fields)
//[] Success; Refresh; [SouthMotor] 100! {ExclusiveDeviationAlarmType} "The alarm is active." @9/9/2021 4:19:32 PM (10 fields)
//[] Success; Refresh; [SouthMotor] 100! {NonExclusiveLevelAlarmType} "The alarm is active." @9/9/2021 4:19:37 PM (10 fields)
//[] Success; Refresh; [SouthMotor] 500! {TripAlarmType} "The alarm severity has increased." @9/9/2021 4:19:35 PM (10 fields)
//[] Success; Refresh; [SouthMotor] 100! {TripAlarmType} "The alarm severity has increased." @9/9/2021 3:39:51 PM (10 fields)
//[] Success; Refresh; [SouthMotor] 100! {TripAlarmType} "The alarm severity has increased." @9/9/2021 3:38:57 PM (10 fields)
//[] Success; Refresh; RefreshComplete
//[] Success; [Internal] 500! {SystemEventType} "Raising Events" @9/9/2021 4:19:39 PM (10 fields)
//[] Success; [Internal] 500! {AuditEventType} "Events Raised" @9/9/2021 4:19:39 PM (10 fields)
//[] Success; [EastTank] 100! {TripAlarmType} "The alarm was deactivated by the system." @9/9/2021 4:19:39 PM (10 fields)
//[] Success; [NorthMotor] 100! {NonExclusiveLevelAlarmType} "The alarm was deactivated by the system." @9/9/2021 4:19:39 PM (10 fields)
//[] Success; [WestTank] 100! {ExclusiveDeviationAlarmType} "The alarm was deactivated by the system." @9/9/2021 4:19:39 PM (10 fields)
//[] Success; [Internal] 500! {SystemEventType} "Raising Events" @9/9/2021 4:19:40 PM (10 fields)
//[] Success; [Internal] 500! {AuditEventType} "Events Raised" @9/9/2021 4:19:40 PM (10 fields)
//[] Success; [Internal] 500! {SystemEventType} "Raising Events" @9/9/2021 4:19:41 PM (10 fields)
//[] Success; [Internal] 500! {AuditEventType} "Events Raised" @9/9/2021 4:19:41 PM (10 fields)
//[] Success; [Internal] 500! {SystemEventType} "Raising Events" @9/9/2021 4:19:42 PM (10 fields)
//[] Success; [Internal] 500! {AuditEventType} "Events Raised" @9/9/2021 4:19:42 PM (10 fields)
//[] Success; [Internal] 500! {SystemEventType} "Raising Events" @9/9/2021 4:19:43 PM (10 fields)
//[] Success; [NorthMotor] 300! {TripAlarmType} "The alarm severity has increased." @9/9/2021 4:19:43 PM (10 fields)
//[] Success; [Internal] 500! {AuditEventType} "Events Raised" @9/9/2021 4:19:43 PM (10 fields)
//[] Success; [WestTank] 300! {NonExclusiveLevelAlarmType} "The alarm severity has increased." @9/9/2021 4:19:43 PM (10 fields)
//[] Success; [SouthMotor] 300! {ExclusiveDeviationAlarmType} "The alarm severity has increased." @9/9/2021 4:19:43 PM (10 fields)
//[] Success; [Internal] 500! {SystemEventType} "Raising Events" @9/9/2021 4:19:44 PM (10 fields)
//[] Success; [EastTank] 700! {NonExclusiveLevelAlarmType} "The alarm severity has increased." @9/9/2021 4:19:44 PM (10 fields)
//[] Success; [Internal] 500! {AuditEventType} "Events Raised" @9/9/2021 4:19:44 PM (10 fields)
//[] Success; [NorthMotor] 700! {ExclusiveDeviationAlarmType} "The alarm severity has increased." @9/9/2021 4:19:44 PM (10 fields)
//[] Success; [SouthMotor] 700! {TripAlarmType} "The alarm severity has increased." @9/9/2021 4:19:44 PM (10 fields)
//[] Success; [Internal] 500! {SystemEventType} "Raising Events" @9/9/2021 4:19:45 PM (10 fields)
//[] Success; [EastTank] 300! {ExclusiveDeviationAlarmType} "The alarm severity has increased." @9/9/2021 4:19:45 PM (10 fields)
//[] Success; [Internal] 500! {AuditEventType} "Events Raised" @9/9/2021 4:19:45 PM (10 fields)
//...


// This example shows how to subscribe to event notifications and display each incoming event.
//
// Find all latest examples here: https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .
// OPC client and subscriber examples in PHP on GitHub: https://github.com/OPCLabs/Examples-QuickOPC-PHP .
// Missing some example? Ask us for it on our Online Forums, https://www.opclabs.com/forum/index ! You do not have to own
// a commercial license in order to use Online Forums, and we reply to every post.


class ClientEvents {
    function EventNotification($Sender, $E)
    {
        // Display the event
        if ($E->Succeeded) {
            printf("%s\n", $E);
        }
        else {
            printf(" *** Failure: %s\n", $E->ErrorMessageBrief);
        }
    }
}

const UAObjectIds_Server = "nsu=http://opcfoundation.org/UA/;i=2253";

$EndpointDescriptor = "opc.tcp://opcua.demo-this.com:62544/Quickstarts/AlarmConditionServer";

// Instantiate the client object and hook events
$Client = new COM("OpcLabs.EasyOpc.UA.EasyUAClient");
$ClientEvents = new ClientEvents();
com_event_sink($Client, $ClientEvents, "DEasyUAClientEvents");

printf("Subscribing...\n");
$Client->SubscribeEvent($EndpointDescriptor, UAObjectIds_Server, 1000);

printf("Processing event notifications for 30 seconds...\n");
$startTime = time(); do { com_message_pump(1000); } while (time() < $startTime + 30);

printf("Unsubscribing...\n");
$Client->UnsubscribeAllMonitoredItems;

printf("Waiting for 5 seconds...\n");
$startTime = time(); do { com_message_pump(1000); } while (time() < $startTime + 5);



// Example output (truncated):
//Subscribing...
//Processing event notifications for 30 seconds...
//[] Success
//[] Success; Refresh; RefreshInitiated
//[] Success; Refresh; [EastTank] 100! {DialogConditionType} "The dialog was activated" @9/9/2021 2:22:18 PM (10 fields)
//[] Success; Refresh; [EastTank] 100! {ExclusiveDeviationAlarmType} "The alarm is active." @9/9/2021 4:19:37 PM (10 fields)
//[] Success; Refresh; [EastTank] 500! {NonExclusiveLevelAlarmType} "The alarm severity has increased." @9/9/2021 4:19:35 PM (10 fields)
//[] Success; Refresh; [EastTank] 900! {TripAlarmType} "The alarm severity has increased." @9/9/2021 4:19:29 PM (10 fields)
//[] Success; Refresh; [EastTank] 100! {TripAlarmType} "The alarm severity has increased." @9/9/2021 3:39:03 PM (10 fields)
//[] Success; Refresh; [EastTank] 100! {TripAlarmType} "The alarm severity has increased." @9/9/2021 3:40:03 PM (10 fields)
//[] Success; Refresh; [NorthMotor] 100! {DialogConditionType} "The dialog was activated" @9/9/2021 2:22:18 PM (10 fields)
//[] Success; Refresh; [NorthMotor] 500! {ExclusiveDeviationAlarmType} "The alarm severity has increased." @9/9/2021 4:19:35 PM (10 fields)
//[] Success; Refresh; [NorthMotor] 900! {NonExclusiveLevelAlarmType} "The alarm severity has increased." @9/9/2021 4:19:29 PM (10 fields)
//[] Success; Refresh; [NorthMotor] 100! {TripAlarmType} "The alarm is active." @9/9/2021 4:19:32 PM (10 fields)
//[] Success; Refresh; [NorthMotor] 100! {TripAlarmType} "The alarm severity has increased." @9/9/2021 3:39:08 PM (10 fields)
//[] Success; Refresh; [NorthMotor] 100! {TripAlarmType} "The alarm severity has increased." @9/9/2021 3:40:14 PM (10 fields)
//[] Success; Refresh; [WestTank] 100! {DialogConditionType} "The dialog was activated" @9/9/2021 2:22:18 PM (10 fields)
//[] Success; Refresh; [WestTank] 900! {ExclusiveDeviationAlarmType} "The alarm severity has increased." @9/9/2021 4:19:29 PM (10 fields)
//[] Success; Refresh; [WestTank] 100! {NonExclusiveLevelAlarmType} "The alarm is active." @9/9/2021 4:19:32 PM (10 fields)
//[] Success; Refresh; [WestTank] 100! {TripAlarmType} "The alarm is active." @9/9/2021 4:19:37 PM (10 fields)
//[] Success; Refresh; [WestTank] 100! {TripAlarmType} "The alarm severity has increased." @9/9/2021 3:38:55 PM (10 fields)
//[] Success; Refresh; [WestTank] 100! {TripAlarmType} "The alarm severity has increased." @9/9/2021 3:39:43 PM (10 fields)
//[] Success; Refresh; [SouthMotor] 100! {DialogConditionType} "The dialog was activated" @9/9/2021 2:22:18 PM (10 fields)
//[] Success; Refresh; [SouthMotor] 100! {ExclusiveDeviationAlarmType} "The alarm is active." @9/9/2021 4:19:32 PM (10 fields)
//[] Success; Refresh; [SouthMotor] 100! {NonExclusiveLevelAlarmType} "The alarm is active." @9/9/2021 4:19:37 PM (10 fields)
//[] Success; Refresh; [SouthMotor] 500! {TripAlarmType} "The alarm severity has increased." @9/9/2021 4:19:35 PM (10 fields)
//[] Success; Refresh; [SouthMotor] 100! {TripAlarmType} "The alarm severity has increased." @9/9/2021 3:39:51 PM (10 fields)
//[] Success; Refresh; [SouthMotor] 100! {TripAlarmType} "The alarm severity has increased." @9/9/2021 3:38:57 PM (10 fields)
//[] Success; Refresh; RefreshComplete
//[] Success; [Internal] 500! {SystemEventType} "Raising Events" @9/9/2021 4:19:39 PM (10 fields)
//[] Success; [Internal] 500! {AuditEventType} "Events Raised" @9/9/2021 4:19:39 PM (10 fields)
//[] Success; [EastTank] 100! {TripAlarmType} "The alarm was deactivated by the system." @9/9/2021 4:19:39 PM (10 fields)
//[] Success; [NorthMotor] 100! {NonExclusiveLevelAlarmType} "The alarm was deactivated by the system." @9/9/2021 4:19:39 PM (10 fields)
//[] Success; [WestTank] 100! {ExclusiveDeviationAlarmType} "The alarm was deactivated by the system." @9/9/2021 4:19:39 PM (10 fields)
//[] Success; [Internal] 500! {SystemEventType} "Raising Events" @9/9/2021 4:19:40 PM (10 fields)
//[] Success; [Internal] 500! {AuditEventType} "Events Raised" @9/9/2021 4:19:40 PM (10 fields)
//[] Success; [Internal] 500! {SystemEventType} "Raising Events" @9/9/2021 4:19:41 PM (10 fields)
//[] Success; [Internal] 500! {AuditEventType} "Events Raised" @9/9/2021 4:19:41 PM (10 fields)
//[] Success; [Internal] 500! {SystemEventType} "Raising Events" @9/9/2021 4:19:42 PM (10 fields)
//[] Success; [Internal] 500! {AuditEventType} "Events Raised" @9/9/2021 4:19:42 PM (10 fields)
//[] Success; [Internal] 500! {SystemEventType} "Raising Events" @9/9/2021 4:19:43 PM (10 fields)
//[] Success; [NorthMotor] 300! {TripAlarmType} "The alarm severity has increased." @9/9/2021 4:19:43 PM (10 fields)
//[] Success; [Internal] 500! {AuditEventType} "Events Raised" @9/9/2021 4:19:43 PM (10 fields)
//[] Success; [WestTank] 300! {NonExclusiveLevelAlarmType} "The alarm severity has increased." @9/9/2021 4:19:43 PM (10 fields)
//[] Success; [SouthMotor] 300! {ExclusiveDeviationAlarmType} "The alarm severity has increased." @9/9/2021 4:19:43 PM (10 fields)
//[] Success; [Internal] 500! {SystemEventType} "Raising Events" @9/9/2021 4:19:44 PM (10 fields)
//[] Success; [EastTank] 700! {NonExclusiveLevelAlarmType} "The alarm severity has increased." @9/9/2021 4:19:44 PM (10 fields)
//[] Success; [Internal] 500! {AuditEventType} "Events Raised" @9/9/2021 4:19:44 PM (10 fields)
//[] Success; [NorthMotor] 700! {ExclusiveDeviationAlarmType} "The alarm severity has increased." @9/9/2021 4:19:44 PM (10 fields)
//[] Success; [SouthMotor] 700! {TripAlarmType} "The alarm severity has increased." @9/9/2021 4:19:44 PM (10 fields)
//[] Success; [Internal] 500! {SystemEventType} "Raising Events" @9/9/2021 4:19:45 PM (10 fields)
//[] Success; [EastTank] 300! {ExclusiveDeviationAlarmType} "The alarm severity has increased." @9/9/2021 4:19:45 PM (10 fields)
//[] Success; [Internal] 500! {AuditEventType} "Events Raised" @9/9/2021 4:19:45 PM (10 fields)
//...


# This example shows how to subscribe to event notifications and display each incoming event.
#
# Find all latest examples here: https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .
# OPC client and subscriber examples in Python on GitHub: https://github.com/OPCLabs/Examples-QuickOPC-Python .
# Missing some example? Ask us for it on our Online Forums, https://www.opclabs.com/forum/index ! You do not have to own
# a commercial license in order to use Online Forums, and we reply to every post.
# The QuickOPC package is needed. Install it using "pip install opclabs_quickopc".
import opclabs_quickopc
import time

# Import .NET namespaces.
from OpcLabs.EasyOpc.UA import *
from OpcLabs.EasyOpc.UA.AddressSpace.Standard import *
from OpcLabs.EasyOpc.UA.OperationModel import *


def eventNotification(sender, eventArgs):
    # Display the event.
    print(eventArgs)


# Define which server we will work with.
endpointDescriptor = UAEndpointDescriptor('opc.tcp://opcua.demo-this.com:62544/Quickstarts/AlarmConditionServer')

# Instantiate the client object and hook events.
client = EasyUAClient()
client.EventNotification += eventNotification

print('Subscribing...')
IEasyUAClientExtension.SubscribeEvent(
    client,
    endpointDescriptor,
    UANodeDescriptor(UAObjectIds.Server),
    1000)

print('Processing event notifications for 30 seconds...')
time.sleep(30)

print('Unsubscribing...')
client.UnsubscribeAllMonitoredItems()

print('Waiting for 5 seconds...')
time.sleep(5)

print('Finished.')
Inheritance Hierarchy

System.Object
   OpcLabs.BaseLib.Object2
      OpcLabs.BaseLib.Info
         OpcLabs.EasyOpc.UA.UAEventData

Requirements

Target Platforms: .NET Framework: Windows 10 (selected versions), Windows 11 (selected versions), Windows Server 2016, Windows Server 2022; .NET: Linux, macOS, Microsoft Windows

See Also

Reference

UAEventData Members
OpcLabs.EasyOpc.UA Namespace





Copyright © 2004-2024 CODE Consulting and Development, s.r.o., Plzen. All rights reserved. Web page: www.opclabs.com

Documentation Home, Send Feedback. Resources: Knowledge Base, Product Downloads. Technical support: Online Forums, FAQ.

Missing some example? Ask us for it on our Online Forums! You do not have to own a commercial license in order to use Online Forums, and we reply to every post.
