UAPubSubConnectionElement Class

Represents a PubSub connection element in the PubSub configuration.

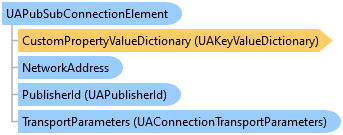

Object Model

Syntax

Visual Basic
C#
C++/CLI

'Declaration

<CLSCompliantAttribute(True)>
<ComDefaultInterfaceAttribute(OpcLabs.EasyOpc.UA.PubSub.Configuration.ComTypes._UAPubSubConnectionElement)>
<ComVisibleAttribute(True)>
<GuidAttribute("BCDB627F-658A-4888-9AC6-5D44D84F7894")>
<TypeConverterAttribute(System.ComponentModel.ExpandableObjectConverter)>
<ValueControlAttribute("OpcLabs.BaseLib.Forms.Common.ObjectSerializationControl, OpcLabs.BaseLibForms, Version=5.81.455.1, Culture=neutral, PublicKeyToken=6faddca41dacb409",
   DefaultReadWrite=False,
   Export=True,
   PageId=10001)>
<SerializableAttribute()>
Public Class UAPubSubConnectionElement
   Inherits UAPubSubComponentElement
   Implements LINQPad.ICustomMemberProvider, OpcLabs.BaseLib.ComTypes._Info, OpcLabs.BaseLib.ComTypes._Object2, OpcLabs.EasyOpc.UA.PubSub.Configuration.ComTypes._UAPubSubComponentElement, OpcLabs.EasyOpc.UA.PubSub.Configuration.ComTypes._UAPubSubConnectionElement, OpcLabs.EasyOpc.UA.PubSub.Configuration.ComTypes._UAPubSubObjectElement, System.ICloneable, System.IFormattable, System.Runtime.Serialization.ISerializable, System.Xml.Serialization.IXmlSerializable

'Usage

Dim instance As UAPubSubConnectionElement

[CLSCompliant(true)]
[ComDefaultInterface(OpcLabs.EasyOpc.UA.PubSub.Configuration.ComTypes._UAPubSubConnectionElement)]
[ComVisible(true)]
[Guid("BCDB627F-658A-4888-9AC6-5D44D84F7894")]
[TypeConverter(System.ComponentModel.ExpandableObjectConverter)]
[ValueControl("OpcLabs.BaseLib.Forms.Common.ObjectSerializationControl, OpcLabs.BaseLibForms, Version=5.81.455.1, Culture=neutral, PublicKeyToken=6faddca41dacb409",
   DefaultReadWrite=false,
   Export=true,
   PageId=10001)]
[Serializable()]
public class UAPubSubConnectionElement : UAPubSubComponentElement, LINQPad.ICustomMemberProvider, OpcLabs.BaseLib.ComTypes._Info, OpcLabs.BaseLib.ComTypes._Object2, OpcLabs.EasyOpc.UA.PubSub.Configuration.ComTypes._UAPubSubComponentElement, OpcLabs.EasyOpc.UA.PubSub.Configuration.ComTypes._UAPubSubConnectionElement, OpcLabs.EasyOpc.UA.PubSub.Configuration.ComTypes._UAPubSubObjectElement, System.ICloneable, System.IFormattable, System.Runtime.Serialization.ISerializable, System.Xml.Serialization.IXmlSerializable

[CLSCompliant(true)]
[ComDefaultInterface(OpcLabs.EasyOpc.UA.PubSub.Configuration.ComTypes._UAPubSubConnectionElement)]
[ComVisible(true)]
[Guid("BCDB627F-658A-4888-9AC6-5D44D84F7894")]
[TypeConverter(System.ComponentModel.ExpandableObjectConverter)]
[ValueControl("OpcLabs.BaseLib.Forms.Common.ObjectSerializationControl, OpcLabs.BaseLibForms, Version=5.81.455.1, Culture=neutral, PublicKeyToken=6faddca41dacb409",
   DefaultReadWrite=false,
   Export=true,
   PageId=10001)]
[Serializable()]
public ref class UAPubSubConnectionElement : public UAPubSubComponentElement, LINQPad.ICustomMemberProvider, OpcLabs.BaseLib.ComTypes._Info, OpcLabs.BaseLib.ComTypes._Object2, OpcLabs.EasyOpc.UA.PubSub.Configuration.ComTypes._UAPubSubComponentElement, OpcLabs.EasyOpc.UA.PubSub.Configuration.ComTypes._UAPubSubConnectionElement, OpcLabs.EasyOpc.UA.PubSub.Configuration.ComTypes._UAPubSubObjectElement, System.ICloneable, System.IFormattable, System.Runtime.Serialization.ISerializable, System.Xml.Serialization.IXmlSerializable

Remarks

There are implicit conversions from this type to:

OpcLabs.EasyOpc.UA.PubSub.UAPubSubConnectionDescriptor.

Inheritance Hierarchy

System.Object
   OpcLabs.BaseLib.Object2
      OpcLabs.BaseLib.Info
         OpcLabs.EasyOpc.UA.PubSub.Configuration.UAPubSubObjectElement
            OpcLabs.EasyOpc.UA.PubSub.Configuration.UAPubSubComponentElement
               OpcLabs.EasyOpc.UA.PubSub.Configuration.UAPubSubConnectionElement
                  OpcLabs.EasyOpc.UA.PubSub.Configuration.UAPubSubConnectionData

Requirements

Target Platforms: .NET Framework: Windows 10 (selected versions), Windows 11 (selected versions), Windows Server 2016, Windows Server 2022; .NET: Linux, macOS, Microsoft Windows

Reference

UAPubSubConnectionElement Members
OpcLabs.EasyOpc.UA.PubSub.Configuration Namespace
