OPC Studio User's Guide and Reference
OPC-DA Property Dialog
Concepts > QuickOPC Concepts > QuickOPC Features > QuickOPC User Interface Features > OPC Common Dialogs > OPC-DA Common Dialogs > OPC-DA Property Dialog
In This Topic

General

Icon:

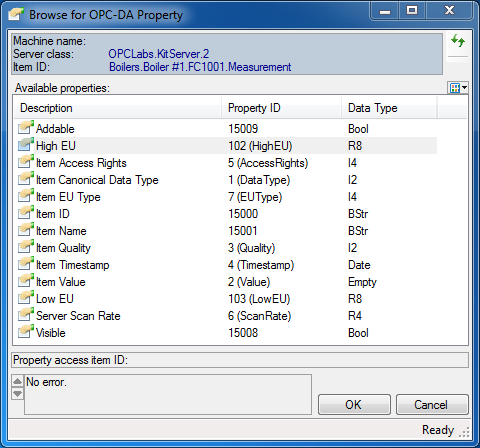

The OPC-DA Property Dialog (DAPropertyDialog class) allows the user to interactively select the OPC property on a specific OPC item.

Use the ServerDescriptor property to specify the OPC Data Access server whose items are to be browsed, set the NodeDescriptor property to the OPC Item Id needed, and then call the ShowDialog method. If the result is equal to DialogResult.OK, the user has selected the OPC property, and information about it can be retrieved from the PropertyElement property.

Advanced

If you want to change the parameters of the client object the component uses to perform its OPC operations, you can use the ClientSelector Property.
