OPC Studio User's Guide and Reference
EasyUASubscriptionChangeArguments Class
Members



OpcLabs.EasyOpcUA Assembly > OpcLabs.EasyOpc.UA.OperationModel Namespace : EasyUASubscriptionChangeArguments Class
Contains arguments describing how the OPC-UA monitoring item subscription should be changed.

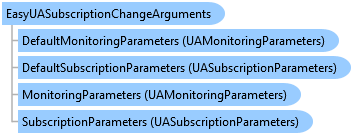

Object Model
EasyUASubscriptionChangeArguments ClassUAMonitoringParameters ClassUASubscriptionParameters ClassUAMonitoringParameters ClassUASubscriptionParameters Class
Syntax
'Declaration

<CLSCompliantAttribute(True)>
<ComDefaultInterfaceAttribute(OpcLabs.EasyOpc.UA.OperationModel.ComTypes._EasyUASubscriptionChangeArguments)>
<ComVisibleAttribute(True)>
<GuidAttribute("91D1A440-91E9-4776-8902-E36547A07083")>
<TypeConverterAttribute(System.ComponentModel.ExpandableObjectConverter)>
<ValueControlAttribute("OpcLabs.BaseLib.Forms.Common.ObjectSerializationControl, OpcLabs.BaseLibForms, Version=5.80.82.1, Culture=neutral, PublicKeyToken=6faddca41dacb409",
   DefaultReadWrite=False,
   Export=True,
   PageId=10001)>
<SerializableAttribute()>
Public NotInheritable Class EasyUASubscriptionChangeArguments
   Inherits OpcLabs.BaseLib.OperationModel.HandleArguments
   Implements LINQPad.ICustomMemberProvider, OpcLabs.BaseLib.ComTypes._Info, OpcLabs.BaseLib.ComTypes._Object2, OpcLabs.BaseLib.OperationModel.ComTypes._HandleArguments, OpcLabs.BaseLib.OperationModel.ComTypes._OperationArguments, OpcLabs.EasyOpc.UA.OperationModel.ComTypes._EasyUASubscriptionChangeArguments, System.ICloneable, System.Runtime.Serialization.ISerializable, System.Xml.Serialization.IXmlSerializable
'Usage

Dim instance As EasyUASubscriptionChangeArguments
[CLSCompliant(true)]
[ComDefaultInterface(OpcLabs.EasyOpc.UA.OperationModel.ComTypes._EasyUASubscriptionChangeArguments)]
[ComVisible(true)]
[Guid("91D1A440-91E9-4776-8902-E36547A07083")]
[TypeConverter(System.ComponentModel.ExpandableObjectConverter)]
[ValueControl("OpcLabs.BaseLib.Forms.Common.ObjectSerializationControl, OpcLabs.BaseLibForms, Version=5.80.82.1, Culture=neutral, PublicKeyToken=6faddca41dacb409",
   DefaultReadWrite=false,
   Export=true,
   PageId=10001)]
[Serializable()]
public sealed class EasyUASubscriptionChangeArguments : OpcLabs.BaseLib.OperationModel.HandleArguments, LINQPad.ICustomMemberProvider, OpcLabs.BaseLib.ComTypes._Info, OpcLabs.BaseLib.ComTypes._Object2, OpcLabs.BaseLib.OperationModel.ComTypes._HandleArguments, OpcLabs.BaseLib.OperationModel.ComTypes._OperationArguments, OpcLabs.EasyOpc.UA.OperationModel.ComTypes._EasyUASubscriptionChangeArguments, System.ICloneable, System.Runtime.Serialization.ISerializable, System.Xml.Serialization.IXmlSerializable
[CLSCompliant(true)]
[ComDefaultInterface(OpcLabs.EasyOpc.UA.OperationModel.ComTypes._EasyUASubscriptionChangeArguments)]
[ComVisible(true)]
[Guid("91D1A440-91E9-4776-8902-E36547A07083")]
[TypeConverter(System.ComponentModel.ExpandableObjectConverter)]
[ValueControl("OpcLabs.BaseLib.Forms.Common.ObjectSerializationControl, OpcLabs.BaseLibForms, Version=5.80.82.1, Culture=neutral, PublicKeyToken=6faddca41dacb409",
   DefaultReadWrite=false,
   Export=true,
   PageId=10001)]
[Serializable()]
public ref class EasyUASubscriptionChangeArguments sealed : public OpcLabs.BaseLib.OperationModel.HandleArguments, LINQPad.ICustomMemberProvider, OpcLabs.BaseLib.ComTypes._Info, OpcLabs.BaseLib.ComTypes._Object2, OpcLabs.BaseLib.OperationModel.ComTypes._HandleArguments, OpcLabs.BaseLib.OperationModel.ComTypes._OperationArguments, OpcLabs.EasyOpc.UA.OperationModel.ComTypes._EasyUASubscriptionChangeArguments, System.ICloneable, System.Runtime.Serialization.ISerializable, System.Xml.Serialization.IXmlSerializable
Remarks

Data

It is not necessary to unsubscribe and then subscribe again if you want to change parameters of existing subscription, such as its update rate (OPC Classic) or sampling interval (OPC UA).

A single subscription

Instead of unsubscribing and subscribing again, change the parameters by calling the ChangeItemSubscription (OPC Classic) or ChangeDataChangeSubscription or ChangeMonitoredItemSubscription  (OPC UA) method, passing it the subscription handle, and the new parameters in form of DAGroupParameters object (in QuickOPC.NET), EasyUASubscriptionChangeArguments (in QuickOPC-UA) or individually a requested update rate or sampling interval, and optionally a deadband value (this is the only way in QuickOPC-COM).

Examples for OPC Classic:

.NET

// This example shows how change the update rate of an existing subscription.
//
// Find all latest examples here: https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .

using System;
using System.Threading;
using OpcLabs.EasyOpc.DataAccess;
using OpcLabs.EasyOpc.DataAccess.OperationModel;

namespace DocExamples.DataAccess._EasyDAClient
{
    partial class ChangeItemSubscription
    {
        public static void Main1()
        {
            // Instantiate the client object.
            using (var client = new EasyDAClient())
            {
                client.ItemChanged += client_ItemChanged;

                Console.WriteLine("Subscribing...");
                int handle = client.SubscribeItem("", "OPCLabs.KitServer.2", "Simulation.Random", 1000);

                Console.WriteLine("Waiting for 10 seconds...");
                Thread.Sleep(10 * 1000);

                Console.WriteLine("Changing subscription...");
                client.ChangeItemSubscription(handle, new DAGroupParameters(100));

                Console.WriteLine("Waiting for 10 seconds...");
                Thread.Sleep(10 * 1000);

                Console.WriteLine("Unsubscribing...");
                client.UnsubscribeAllItems();

                Console.WriteLine("Waiting for 10 seconds...");
                Thread.Sleep(10 * 1000);
            }
        }

        // Item changed event handler
        static void client_ItemChanged(object sender, EasyDAItemChangedEventArgs e)
        {
            if (e.Succeeded)
                Console.WriteLine(e.Vtq);
            else
                Console.WriteLine("*** Failure: {0}", e.ErrorMessageBrief);
        }
    }
}
# This example shows how change the update rate of an existing subscription.
#
# Find all latest examples here: https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .
# OPC client and subscriber examples in Python on GitHub: https://github.com/OPCLabs/Examples-QuickOPC-Python .
# The QuickOPC package is needed. Install it using "pip install opclabs_quickopc".
import opclabs_quickopc
import time

# Import .NET namespaces.
from OpcLabs.EasyOpc.DataAccess import *


# Item changed event handler
def itemChanged(sender, e):
    if e.Succeeded:
        print(e.Vtq)
    else:
        print('*** Failure: ', e.ErrorMessageBrief, sep='')


# Instantiate the client object.
client = EasyDAClient()

client.ItemChanged += itemChanged

print('Subscribing item...')
handle = IEasyDAClientExtension.SubscribeItem(client, '', 'OPCLabs.KitServer.2', 'Simulation.Random', 1000)

print('Processing item change notifications for 10 seconds...')
time.sleep(10)

print('Changing item subscription...')
IEasyDAClientExtension.ChangeItemSubscription(client, handle, DAGroupParameters(100))

print('Processing item change notifications for 10 seconds...')
time.sleep(10)

print('Unsubscribing item...')
IEasyDAClientExtension.UnsubscribeItem(client, handle)

print('Waiting for 10 seconds...')
time.sleep(10)

client.ItemChanged -= itemChanged

print('Finished.')
' This example shows how change the update rate of an existing subscription.
'
' Find all latest examples here: https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .

Imports System.Threading
Imports OpcLabs.EasyOpc.DataAccess
Imports OpcLabs.EasyOpc.DataAccess.OperationModel

Namespace DataAccess._EasyDAClient

    Partial Friend Class ChangeItemSubscription
        Public Shared Sub Main1()
            Using client = New EasyDAClient()
                AddHandler client.ItemChanged, AddressOf client_ItemChanged

                Console.WriteLine("Subscribing...")
                Dim handle As Integer = client.SubscribeItem("", "OPCLabs.KitServer.2", "Simulation.Random", 1000)

                Console.WriteLine("Waiting for 10 seconds...")
                Thread.Sleep(10 * 1000)

                Console.WriteLine("Changing subscription...")
                client.ChangeItemSubscription(handle, New DAGroupParameters(100))

                Console.WriteLine("Waiting for 10 seconds...")
                Thread.Sleep(10 * 1000)

                Console.WriteLine("Unsubscribing...")
                client.UnsubscribeAllItems()

                Console.WriteLine("Waiting for 10 seconds...")
                Thread.Sleep(10 * 1000)
            End Using
        End Sub

        ' Item changed event handler
        Private Shared Sub client_ItemChanged(ByVal sender As Object, ByVal e As EasyDAItemChangedEventArgs)
            If e.Succeeded Then
                Console.WriteLine(e.Vtq)
            Else
                Console.WriteLine("*** Failure: {0}", e.ErrorMessageBrief)
            End If
        End Sub
    End Class
End Namespace

COM

Rem This example shows how change the update rate of an existing subscription.
Rem
Rem Find all latest examples here : https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .

Option Explicit

Dim Client: Set Client = CreateObject("OpcLabs.EasyOpc.DataAccess.EasyDAClient")
WScript.ConnectObject Client, "Client_"

WScript.Echo "Subscribing..."
Dim handle: handle = Client.SubscribeItem("", "OPCLabs.KitServer.2", "Simulation.Random", 1000)

WScript.Echo "Waiting for 10 seconds..."
WScript.Sleep 10*1000

WScript.Echo "Changing subscription..."
Client.ChangeItemSubscription handle, 100

WScript.Echo "Waiting for 10 seconds..."
WScript.Sleep 10*1000

WScript.Echo "Unsubscribing..."
Client.UnsubscribeAllItems

WScript.Echo "Waiting for 10 seconds..."
WScript.Sleep 10*1000

WScript.DisconnectObject Client
Set Client = Nothing



Sub Client_ItemChanged(Sender, e)
    If Not (e.Succeeded) Then
        WScript.Echo "*** Failure: " & e.ErrorMessageBrief
        Exit Sub
    End If

    WScript.Echo e.Vtq
End Sub

Examples for OPC XML-DA:

.NET

// This example shows how change the update rate of an existing OPC XML-DA subscription.
//
// Find all latest examples here: https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .

using System;
using System.Threading;
using OpcLabs.EasyOpc.DataAccess;
using OpcLabs.EasyOpc.DataAccess.OperationModel;

namespace DocExamples.DataAccess.Xml
{
    class ChangeItemSubscription
    {
        public static void Main1Xml()
        {
            // Instantiate the client object.
            using (var client = new EasyDAClient())
            {
                client.ItemChanged += client_ItemChanged;

                Console.WriteLine("Subscribing...");
                int handle = client.SubscribeItem(
                    "http://opcxml.demo-this.com/XmlDaSampleServer/Service.asmx",
                    "Dynamic/Analog Types/Int",
                    2000,
                    state: null);

                Console.WriteLine("Waiting for 20 seconds...");
                Thread.Sleep(20 * 1000);

                Console.WriteLine("Changing subscription...");
                client.ChangeItemSubscription(handle, new DAGroupParameters(500));

                Console.WriteLine("Waiting for 10 seconds...");
                Thread.Sleep(10 * 1000);

                Console.WriteLine("Unsubscribing...");
                client.UnsubscribeAllItems();

                Console.WriteLine("Waiting for 10 seconds...");
                Thread.Sleep(10 * 1000);
            }
        }

        // Item changed event handler
        static void client_ItemChanged(object sender, EasyDAItemChangedEventArgs e)
        {
            if (e.Succeeded)
                Console.WriteLine(e.Vtq);
            else
                Console.WriteLine("*** Failure: {0}", e.ErrorMessageBrief);
        }
    }
}
# This example shows how change the update rate of an existing OPC XML-DA subscription.
#
# Find all latest examples here: https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .
# OPC client and subscriber examples in Python on GitHub: https://github.com/OPCLabs/Examples-QuickOPC-Python .
# The QuickOPC package is needed. Install it using "pip install opclabs_quickopc".
import opclabs_quickopc
import time

# Import .NET namespaces.
from OpcLabs.EasyOpc import *
from OpcLabs.EasyOpc.DataAccess import *


# Item changed event handler
def itemChanged(sender, e):
    if e.Succeeded:
        print(e.Vtq)
    else:
        print('*** Failure: ', e.ErrorMessageBrief, sep='')


# Instantiate the client object.
client = EasyDAClient()

client.ItemChanged += itemChanged

print('Subscribing item...')
handle = IEasyDAClientExtension.SubscribeItem(client,
    ServerDescriptor('http://opcxml.demo-this.com/XmlDaSampleServer/Service.asmx'),
    DAItemDescriptor('Dynamic/Analog Types/Int'),
    DAGroupParameters(2000),
    None) # state

print('Processing item change notifications for 20 seconds...')
time.sleep(20)

print('Changing item subscription...')
IEasyDAClientExtension.ChangeItemSubscription(client, handle, DAGroupParameters(500))

print('Processing item change notifications for 10 seconds...')
time.sleep(10)

print('Unsubscribing item...')
IEasyDAClientExtension.UnsubscribeItem(client, handle)

print('Waiting for 10 seconds...')
time.sleep(10)

client.ItemChanged -= itemChanged

print('Finished.')
' This example shows how change the update rate of an existing OPC XML-DA subscription.
'
' Find all latest examples here: https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .

Imports System.Threading
Imports OpcLabs.EasyOpc.DataAccess
Imports OpcLabs.EasyOpc.DataAccess.OperationModel

Namespace DataAccess.Xml

    Partial Friend Class ChangeItemSubscription
        Public Shared Sub Main1Xml()
            Using client = New EasyDAClient()
                AddHandler client.ItemChanged, AddressOf client_ItemChanged

                Console.WriteLine("Subscribing...")
                Dim handle As Integer = client.SubscribeItem(
                        "http://opcxml.demo-this.com/XmlDaSampleServer/Service.asmx",
                        "Dynamic/Analog Types/Int",
                        2000,
                        state:=Nothing)

                Console.WriteLine("Waiting for 20 seconds...")
                Thread.Sleep(20 * 1000)

                Console.WriteLine("Changing subscription...")
                client.ChangeItemSubscription(handle, New DAGroupParameters(500))

                Console.WriteLine("Waiting for 10 seconds...")
                Thread.Sleep(10 * 1000)

                Console.WriteLine("Unsubscribing...")
                client.UnsubscribeAllItems()

                Console.WriteLine("Waiting for 10 seconds...")
                Thread.Sleep(10 * 1000)
            End Using
        End Sub

        ' Item changed event handler
        Private Shared Sub client_ItemChanged(ByVal sender As Object, ByVal e As EasyDAItemChangedEventArgs)
            If e.Succeeded Then
                Console.WriteLine(e.Vtq)
            Else
                Console.WriteLine("*** Failure: {0}", e.ErrorMessageBrief)
            End If
        End Sub
    End Class
End Namespace

COM

// This example shows how change the update rate of an existing OPC XML-DA subscription.
//
// Find all latest examples here : https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .

type
  TChangeItemSubscription_ClientEventHandlers = class
    // Item changed event handler
    procedure OnItemChanged(
      ASender: TObject;
      sender: OleVariant;
      const eventArgs: _EasyDAItemChangedEventArgs);
  end;

procedure TChangeItemSubscription_ClientEventHandlers.OnItemChanged(
  ASender: TObject;
  sender: OleVariant;
  const eventArgs: _EasyDAItemChangedEventArgs);
begin
  if Not eventArgs.Succeeded then
  begin
    WriteLn('*** Failure: ', eventArgs.ErrorMessageBrief);
    Exit;
  end;

  WriteLn(eventArgs.Vtq.ToString)
end;

class procedure ChangeItemSubscription.MainXml;
var
  Arguments: OleVariant;
  Client: TEasyDAClient;
  ClientEventHandlers: TChangeItemSubscription_ClientEventHandlers;
  HandleArray: OleVariant;
  ItemSubscriptionArguments1: _EasyDAItemSubscriptionArguments;
begin
  ItemSubscriptionArguments1 := CoEasyDAItemSubscriptionArguments.Create;
  ItemSubscriptionArguments1.ServerDescriptor.UrlString := 'http://opcxml.demo-this.com/XmlDaSampleServer/Service.asmx';
  ItemSubscriptionArguments1.ItemDescriptor.ItemID := 'Dynamic/Analog Types/Int';
  ItemSubscriptionArguments1.GroupParameters.RequestedUpdateRate := 2000;

  Arguments := VarArrayCreate([0, 0], varVariant);
  Arguments[0] := ItemSubscriptionArguments1;

  // Instantiate the client object and hook events
  Client := TEasyDAClient.Create(nil);
  ClientEventHandlers := TChangeItemSubscription_ClientEventHandlers.Create;
  Client.OnItemChanged := ClientEventHandlers.OnItemChanged;

  WriteLn('Subscribing...');
  TVarData(HandleArray).VType := varArray or varVariant;
  TVarData(HandleArray).VArray := PVarArray(
    Client.SubscribeMultipleItems(Arguments));

  WriteLn('Waiting for 20 seconds...');
  PumpSleep(20*1000);

  WriteLn('Changing subscription...');
  Client.ChangeItemSubscription(HandleArray[0], 500);

  WriteLn('Waiting for 10 seconds...');
  PumpSleep(10*1000);

  WriteLn('Unsubscribing...');
  Client.UnsubscribeAllItems;

  WriteLn('Waiting for 10 seconds...');
  PumpSleep(10*1000);

  VarClear(HandleArray);
  VarClear(Arguments);
  FreeAndNil(Client);
  FreeAndNil(ClientEventHandlers);
end;
// This example shows how change the update rate of an existing OPC XML-DA subscription.
//
// Some related documentation: http://php.net/manual/en/function.com-event-sink.php . Pay attention to the comment that says
// "Be careful how you use this feature; if you are doing something similar to the example below, then it doesn't really make
// sense to run it in a web server context.". What they are trying to say is that processing a web request should be
// a short-lived code, which does not fit well with the idea of being subscribed to events and received them over longer time.
// It is possible to write such code, but it is only useful when processing the request is allowed to take relatively long. Or,
// when you are using PHP from command-line, or otherwise - not to serve a web page directly.
//
// Subscribing to QuickOPC-COM events in the context of PHP Web application, while not imposing the limitations to the request
// processing time, has to be "worked around", e.g. using the "event pull" mechanism.
//
// Find all latest examples here : https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .

class DEasyDAClientEvents {
    function ItemChanged($varSender, $varE)
    {
        if ($varE->Succeeded)
        {
        print $varE->Vtq->ToString();
            print "\n";
        }
        else
        {
            printf("*** Failure: %s\n", $varE->ErrorMessageBrief);
        }
    }
}

$ItemSubscriptionArguments1 = new COM("OpcLabs.EasyOpc.DataAccess.OperationModel.EasyDAItemSubscriptionArguments");
$ItemSubscriptionArguments1->ServerDescriptor->UrlString = "http://opcxml.demo-this.com/XmlDaSampleServer/Service.asmx";
$ItemSubscriptionArguments1->ItemDescriptor->ItemID = "Dynamic/Analog Types/Int";
$ItemSubscriptionArguments1->GroupParameters->RequestedUpdateRate = 2000;

$arguments[0] = $ItemSubscriptionArguments1;

// Instantiate the client object.
$Client = new COM("OpcLabs.EasyOpc.DataAccess.EasyDAClient");
$Events = new DEasyDAClientEvents();
com_event_sink($Client, $Events, "DEasyDAClientEvents");

print "Subscribing...\n";
$handles = $Client->SubscribeMultipleItems($arguments);

print "Waiting for 20 seconds...\n";
$startTime = time(); do { com_message_pump(1000); } while (time() < $startTime + 20);

print "Changing subscription...";
$Client->ChangeItemSubscription($handles[0], 500);

print "Waiting for 10 seconds...\n";
$startTime = time(); do { com_message_pump(1000); } while (time() < $startTime + 10);

print "Unsubscribing...\n";
$Client->UnsubscribeAllItems;

print "Waiting for 10 seconds...\n";
$startTime = time(); do { com_message_pump(1000); } while (time() < $startTime + 10);
Rem This example shows how change the update rate of an existing OPC XML-DA subscription.
Rem
Rem Find all latest examples here : https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .

' The client object, with events
'Public WithEvents Client1 As EasyDAClient

Private Sub ChangeItemSubscription_MainXml_Command_Click()
    OutputText = ""

    Dim ItemSubscriptionArguments1 As New EasyDAItemSubscriptionArguments
    ItemSubscriptionArguments1.serverDescriptor.UrlString = "http://opcxml.demo-this.com/XmlDaSampleServer/Service.asmx"
    ItemSubscriptionArguments1.ItemDescriptor.ItemId = "Dynamic/Analog Types/Int"
    ItemSubscriptionArguments1.GroupParameters.RequestedUpdateRate = 2000

    Dim arguments(0) As Variant
    Set arguments(0) = ItemSubscriptionArguments1

    ' Instantiate the client object and hook events
    Set Client1 = New EasyDAClient

    OutputText = OutputText & "Subscribing..." & vbCrLf
    Dim handles() As Variant
    handles = Client1.SubscribeMultipleItems(arguments)

    OutputText = OutputText & "Waiting for 20 seconds..." & vbCrLf
    Pause 20000

    OutputText = OutputText & "Changing subscription..." & vbCrLf
    Call Client1.ChangeItemSubscription(handles(0), 500)

    OutputText = OutputText & "Waiting for 10 seconds..." & vbCrLf
    Pause 10000

    OutputText = OutputText & "Unsubscribing..." & vbCrLf
    Client1.UnsubscribeAllItems

    OutputText = OutputText & "Waiting for 10 seconds..." & vbCrLf
    Pause 10000

    Set Client1 = Nothing
End Sub

Public Sub Client1_ItemChanged(ByVal sender As Variant, ByVal eventArgs As EasyDAItemChangedEventArgs)
    If Not eventArgs.Succeeded Then
        OutputText = OutputText & "*** Failure: " & eventArgs.ErrorMessageBrief & vbCrLf
        Exit Sub
    End If
    OutputText = OutputText & eventArgs.vtq & vbCrLf
End Sub
Rem This example shows how change the update rate of an existing OPC XML-DA subscription.
Rem
Rem Find all latest examples here : https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .

Option Explicit

Dim ItemSubscriptionArguments1: Set ItemSubscriptionArguments1 = CreateObject("OpcLabs.EasyOpc.DataAccess.OperationModel.EasyDAItemSubscriptionArguments")
ItemSubscriptionArguments1.ServerDescriptor.UrlString = "http://opcxml.demo-this.com/XmlDaSampleServer/Service.asmx"
ItemSubscriptionArguments1.ItemDescriptor.ItemID = "Dynamic/Analog Types/Int"
ItemSubscriptionArguments1.GroupParameters.RequestedUpdateRate = 2000

Dim arguments(0)
Set arguments(0) = ItemSubscriptionArguments1

Dim Client: Set Client = CreateObject("OpcLabs.EasyOpc.DataAccess.EasyDAClient")
WScript.ConnectObject Client, "Client_"

WScript.Echo "Subscribing..."
Dim handles: handles = Client.SubscribeMultipleItems(arguments)


WScript.Echo "Waiting for 20 seconds..."
WScript.Sleep 20*1000

WScript.Echo "Changing subscription..."
Client.ChangeItemSubscription handles(0), 500

WScript.Echo "Waiting for 10 seconds..."
WScript.Sleep 10*1000

WScript.Echo "Unsubscribing..."
Client.UnsubscribeAllItems

WScript.Echo "Waiting for 10 seconds..."
WScript.Sleep 10*1000

WScript.DisconnectObject Client
Set Client = Nothing


' Item changed event handler
Sub Client_ItemChanged(Sender, e)
    If Not (e.Succeeded) Then
        WScript.Echo "*** Failure: " & e.ErrorMessageBrief
        Exit Sub
    End If

    WScript.Echo e.Vtq
End Sub



QuickOPC supports OPC XML-DA also on Linux and macOS.

Examples for OPC UA:

.NET

// This example shows how to change the sampling rate of an existing monitored item subscription.
//
// Find all latest examples here: https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .

using System;
using OpcLabs.EasyOpc.UA;
using OpcLabs.EasyOpc.UA.OperationModel;

namespace UADocExamples._EasyUAClient
{
    class ChangeMonitoredItemSubscription
    {
        public static void Overload1()
        {
            UAEndpointDescriptor endpointDescriptor =
                "opc.tcp://opcua.demo-this.com:51210/UA/SampleServer";
            // or "http://opcua.demo-this.com:51211/UA/SampleServer" (currently not supported)
            // or "https://opcua.demo-this.com:51212/UA/SampleServer/"

            // Instantiate the client object.
            var client = new EasyUAClient();
            client.DataChangeNotification += client_DataChangeNotification;

            Console.WriteLine("Subscribing...");
            int handle = client.SubscribeDataChange(endpointDescriptor, "nsu=http://test.org/UA/Data/ ;i=10853", 1000);

            Console.WriteLine("Processing monitored item changed events for 10 seconds...");
            System.Threading.Thread.Sleep(10 * 1000);

            Console.WriteLine("Changing subscription...");
            client.ChangeMonitoredItemSubscription(handle, 100);

            Console.WriteLine("Processing monitored item changed events for 10 seconds...");
            System.Threading.Thread.Sleep(10 * 1000);

            Console.WriteLine("Unsubscribing...");
            client.UnsubscribeAllMonitoredItems();

            Console.WriteLine("Waiting for 5 seconds...");
            System.Threading.Thread.Sleep(5 * 1000);

            Console.WriteLine("Finished.");
        }

        static void client_DataChangeNotification(object sender, EasyUADataChangeNotificationEventArgs e)
        {
            if (e.Succeeded)
                Console.WriteLine(e.AttributeData.Value);
            else
                Console.WriteLine($"*** Failure: {e.ErrorMessageBrief}");
        }
    }
}
# This example shows how to change the sampling rate of an existing monitored item subscription.
#
# Find all latest examples here: https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .

#requires -Version 5.1
using namespace OpcLabs.EasyOpc.UA
using namespace OpcLabs.EasyOpc.UA.OperationModel

# The path below assumes that the current directory is [ProductDir]/Examples-NET/PowerShell/Windows .
Add-Type -Path "../../../Components/Opclabs.QuickOpc/net472/OpcLabs.EasyOpcUA.dll"
Add-Type -Path "../../../Components/Opclabs.QuickOpc/net472/OpcLabs.EasyOpcUAComponents.dll"

[UAEndpointDescriptor]$endpointDescriptor =
    "opc.tcp://opcua.demo-this.com:51210/UA/SampleServer"
# or "http://opcua.demo-this.com:51211/UA/SampleServer" (currently not supported)
# or "https://opcua.demo-this.com:51212/UA/SampleServer/"

# Instantiate the client object.
$client = New-Object EasyUAClient

# Data change notification handler
Register-ObjectEvent -InputObject $client -EventName DataChangeNotification -Action {
    if ($EventArgs.Succeeded) {
        Write-Host "Value: $($EventArgs.AttributeData.Value)"
    }
    else {
        Write-Host "*** Failure: $($EventArgs.ErrorMessageBrief)"
    }
}

Write-Host "Subscribing..."
$handle = $client.SubscribeDataChange($endpointDescriptor, "nsu=http://test.org/UA/Data/ ;i=10853", 1000)

Write-Host "Processing data change events for 10 seconds..."
$stopwatch =  [System.Diagnostics.Stopwatch]::StartNew()
while ($stopwatch.Elapsed.TotalSeconds -lt 10) {
    Start-Sleep -Seconds 1
}

Write-Host "Changing subscription..."
$client.ChangeMonitoredItemSubscription($handle, 100)

Write-Host "Processing data change events for 10 seconds..."
$stopwatch =  [System.Diagnostics.Stopwatch]::StartNew()
while ($stopwatch.Elapsed.TotalSeconds -lt 10) {
    Start-Sleep -Seconds 1
}

Write-Host "Unsubscribing..."
$client.UnsubscribeAllMonitoredItems()

Write-Host "Waiting for 5 seconds..."
Start-Sleep -Seconds 5

Write-Host "Finished."
# This example shows how to change the sampling rate of an existing monitored item subscription.
#
# Find all latest examples here: https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .
# OPC client and subscriber examples in Python on GitHub: https://github.com/OPCLabs/Examples-QuickOPC-Python .
# The QuickOPC package is needed. Install it using "pip install opclabs_quickopc".
import opclabs_quickopc
import time

# Import .NET namespaces.
from OpcLabs.EasyOpc.UA import *
from OpcLabs.EasyOpc.UA.OperationModel import *


def dataChangeNotification(sender, e):
    # Display value
    if e.Succeeded:
        print('Value: ', e.AttributeData.Value, sep='')
    else:
        print('*** Failure: ', e.ErrorMessageBrief, sep='')


endpointDescriptor = UAEndpointDescriptor('opc.tcp://opcua.demo-this.com:51210/UA/SampleServer')
# or 'http://opcua.demo-this.com:51211/UA/SampleServer' (currently not supported)
# or 'https://opcua.demo-this.com:51212/UA/SampleServer/'

# Instantiate the client object and hook events.
client = EasyUAClient()
client.DataChangeNotification += dataChangeNotification

print('Subscribing...')
handle = IEasyUAClientExtension.SubscribeDataChange(client,
    endpointDescriptor,
    UANodeDescriptor('nsu=http://test.org/UA/Data/ ;i=10853'),
    1000)

print('Processing data change events for 10 seconds...')
time.sleep(10)

print('Changing subscription...')
IEasyUAClientExtension.ChangeMonitoredItemSubscription(client, handle, 100)

print('Processing data change events for 10 seconds...')
time.sleep(10)

print('Unsubscribing...')
client.UnsubscribeAllMonitoredItems()

print('Waiting for 5 seconds...')
time.sleep(5)

print('Finished.')
' This example shows how to change the sampling rate of an existing monitored item subscription.
'
' Find all latest examples here: https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .

Imports OpcLabs.EasyOpc.UA
Imports OpcLabs.EasyOpc.UA.OperationModel

Namespace _EasyUAClient
    Friend Class ChangeMonitoredItemSubscription
        Public Shared Sub Overload1()

            ' Define which server we will work with.
            Dim endpointDescriptor As UAEndpointDescriptor =
                    "opc.tcp://opcua.demo-this.com:51210/UA/SampleServer"
            ' or "http://opcua.demo-this.com:51211/UA/SampleServer" (currently not supported)
            ' or "https://opcua.demo-this.com:51212/UA/SampleServer/"

            Dim client = New EasyUAClient()
            AddHandler client.DataChangeNotification, AddressOf client_DataChangeNotification

            Console.WriteLine("Subscribing...")
            Dim handle As Integer = _
                client.SubscribeDataChange(endpointDescriptor, "nsu=http://test.org/UA/Data/ ;i=10853", 1000)

            Console.WriteLine("Processing monitored item changed events for 10 seconds...")
            Threading.Thread.Sleep(10 * 1000)

            Console.WriteLine("Changing subscription...")
            client.ChangeMonitoredItemSubscription(handle, 100)

            Console.WriteLine("Processing monitored item changed events for 10 seconds...")
            Threading.Thread.Sleep(10 * 1000)

            Console.WriteLine("Unsubscribing...")
            client.UnsubscribeAllMonitoredItems()

            Console.WriteLine("Waiting for 5 seconds...")
            Threading.Thread.Sleep(5 * 1000)
        End Sub

        Private Shared Sub client_DataChangeNotification(ByVal sender As Object, ByVal e As EasyUADataChangeNotificationEventArgs)
            If e.Succeeded Then
                Console.WriteLine(e.AttributeData.Value)
            Else
                Console.WriteLine("*** Failure: {0}", e.ErrorMessageBrief)
            End If
        End Sub
    End Class
End Namespace

COM

// This example shows how to change the sampling rate of an existing monitored
// item subscription.
//
// Find all latest examples here : https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .

type
  TClientEventHandlers110 = class
    procedure OnDataChangeNotification(
      ASender: TObject;
      sender: OleVariant;
      const eventArgs: _EasyUADataChangeNotificationEventArgs);
  end;

procedure TClientEventHandlers110.OnDataChangeNotification(
  ASender: TObject;
  sender: OleVariant;
  const eventArgs: _EasyUADataChangeNotificationEventArgs);
begin
  // Display the data
  if eventArgs.Succeeded then
      WriteLn(eventArgs.AttributeData.ToString)
  else
      WriteLn('*** Failure: ',
      eventArgs.ErrorMessageBrief);
end;

class procedure ChangeMonitoredItemSubscription.Main;
var
  Client: TEasyUAClient;
  ClientEventHandlers: TClientEventHandlers110;
  Handle: Cardinal;
begin
  // Instantiate the client object and hook events
  Client := TEasyUAClient.Create(nil);
  ClientEventHandlers := TClientEventHandlers110.Create;
  Client.OnDataChangeNotification := ClientEventHandlers.OnDataChangeNotification;

  WriteLn('Subscribing...');
  Handle := Client.SubscribeDataChange(
    //'http://opcua.demo-this.com:51211/UA/SampleServer',
    //'https://opcua.demo-this.com:51212/UA/SampleServer/',
    'opc.tcp://opcua.demo-this.com:51210/UA/SampleServer',
    'nsu=http://test.org/UA/Data/ ;i=10853',
    1000);

  WriteLn('Processing monitored item changed events for 10 seconds...');
  PumpSleep(10*1000);

  Client.ChangeMonitoredItemSubscription(Handle, 100);

  WriteLn('Processing monitored item changed events for 10 seconds...');
  PumpSleep(10*1000);

  WriteLn('Unsubscribing...');
  Client.UnsubscribeAllMonitoredItems;

  WriteLn('Waiting for 5 seconds...');
  PumpSleep(5*1000);

  WriteLn('Finished.');
  FreeAndNil(Client);
  FreeAndNil(ClientEventHandlers);
end;
REM This example shows how to change the sampling rate of an existing monitored
REM item subscription.
REM
REM Find all latest examples here : https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .

' The client object, with events
'Public WithEvents Client5 As EasyUAClient

Public Sub ChangeMonitoredItemSubscription_Main_Command_Click()
    OutputText = ""

    Set Client5 = New EasyUAClient

    OutputText = OutputText & "Subscribing..." & vbCrLf
    Dim Handle As Long
    Handle = Client5.SubscribeDataChange("opc.tcp://opcua.demo-this.com:51210/UA/SampleServer", "nsu=http://test.org/UA/Data/ ;i=10853", 1000)

    OutputText = OutputText & "Processing monitored item changed events for 10 seconds..." & vbCrLf
    Pause 10000

    Call Client5.ChangeMonitoredItemSubscription(Handle, 100)

    OutputText = OutputText & "Processing monitored item changed events for 10 seconds..." & vbCrLf
    Pause 10000

    OutputText = OutputText & "Unsubscribing..." & vbCrLf
    Client5.UnsubscribeAllMonitoredItems

    OutputText = OutputText & "Waiting for 5 seconds..." & vbCrLf
    Pause 5000

    OutputText = OutputText & "Finished." & vbCrLf
    Set Client5 = Nothing
End Sub

Public Sub Client5_DataChangeNotification(ByVal sender As Variant, ByVal eventArgs As EasyUADataChangeNotificationEventArgs)
    ' Display the data
    If eventArgs.Exception Is Nothing Then
        OutputText = OutputText & eventArgs.AttributeData & vbCrLf
    Else
        OutputText = OutputText & eventArgs.ErrorMessageBrief & vbCrLf
    End If
End Sub
Rem This example shows how to change the sampling rate of an existing monitored item subscription.
Rem
Rem Find all latest examples here : https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .

Option Explicit

' Instantiate the client object and hook events
Dim Client: Set Client = CreateObject("OpcLabs.EasyOpc.UA.EasyUAClient")
WScript.ConnectObject Client, "Client_"

WScript.Echo "Subscribing..."
Dim handle: handle = Client.SubscribeDataChange( _
    "opc.tcp://opcua.demo-this.com:51210/UA/SampleServer", _
    "nsu=http://test.org/UA/Data/ ;i=10853", _
    1000)

WScript.Echo "Processing monitored item changed events for 10 seconds..."
WScript.Sleep 10 * 1000

WScript.Echo "Changing subscription..."
Client.ChangeMonitoredItemSubscription handle, 100

WScript.Echo "Processing monitored item changed events for 10 seconds..."
WScript.Sleep 10 * 1000

WScript.Echo "Unsubscribing..."
Client.UnsubscribeAllMonitoredItems

WScript.Echo "Waiting for 5 seconds..."
WScript.Sleep 5 * 1000



Sub Client_DataChangeNotification(Sender, e)
    Dim display: If e.Exception Is Nothing Then display = e.AttributeData Else display = e.ErrorMessageBrief
    WScript.Echo display
End Sub

Multiple subscriptions

For changing parameters of multiple subscriptions in an efficient manner, call the ChangeMultipleItemSubscriptions (OPC Classic), or ChangeMultipleDataChangeSubscriptions or ChangeMultipleMonitoredItemSubscriptions (OPC UA) method.

Examples for OPC Classic:

.NET

// This example shows how change the update rate of multiple existing subscriptions.
//
// Find all latest examples here: https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .

using System;
using System.Threading;
using OpcLabs.EasyOpc.DataAccess;
using OpcLabs.EasyOpc.DataAccess.OperationModel;

namespace DocExamples.DataAccess._EasyDAClient
{
    class ChangeMultipleItemSubscriptions
    {
        public static void Main1()
        {
            // Instantiate the client object.
            using (var client = new EasyDAClient())
            {
                client.ItemChanged += client_ItemChanged;

                Console.WriteLine("Subscribing...");
                int[] handleArray = client.SubscribeMultipleItems(new[]
                {
                    new DAItemGroupArguments("", "OPCLabs.KitServer.2", "Simulation.Random", 1000, null),
                    new DAItemGroupArguments("", "OPCLabs.KitServer.2", "Trends.Ramp (1 min)", 1000, null),
                    new DAItemGroupArguments("", "OPCLabs.KitServer.2", "Trends.Sine (1 min)", 1000, null),
                    new DAItemGroupArguments("", "OPCLabs.KitServer.2", "Simulation.Register_I4", 1000, null)
                });

                Console.WriteLine("Waiting for 10 seconds...");
                Thread.Sleep(10 * 1000);

                Console.WriteLine("Changing subscriptions...");
                client.ChangeMultipleItemSubscriptions(new[]
                {
                    new DAHandleGroupArguments(handleArray[0], 100),
                    new DAHandleGroupArguments(handleArray[1], 100)
                });

                Console.WriteLine("Waiting for 10 seconds...");
                Thread.Sleep(10 * 1000);

                Console.WriteLine("Unsubscribing...");
                client.UnsubscribeAllItems();

                Console.WriteLine("Waiting for 10 seconds...");
                Thread.Sleep(10 * 1000);
            }
        }

        // Item changed event handler
        static void client_ItemChanged(object sender, EasyDAItemChangedEventArgs e)
        {
            if (e.Succeeded)
                Console.WriteLine(e.Vtq);
            else
                Console.WriteLine($"*** Failure: {e.ErrorMessageBrief}");
        }
    }
}
# This example shows how change the update rate of multiple existing subscriptions.
#
# Find all latest examples here: https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .
# OPC client and subscriber examples in Python on GitHub: https://github.com/OPCLabs/Examples-QuickOPC-Python .
# The QuickOPC package is needed. Install it using "pip install opclabs_quickopc".
import opclabs_quickopc
import time

# Import .NET namespaces.
from OpcLabs.EasyOpc.DataAccess import *
from OpcLabs.EasyOpc.DataAccess.OperationModel import *


# Item changed event handler.
def itemChanged(sender, e):
    if e.Succeeded:
        print(e.Arguments.ItemDescriptor.ItemId, ': ', e.Vtq, sep='')
    else:
        print(e.Arguments.ItemDescriptor.ItemId, ' *** Failure: ', e.ErrorMessageBrief, sep='')


# Instantiate the client object.
client = EasyDAClient()

client.ItemChanged += itemChanged

print('Subscribing item changes...')
handleArray = client.SubscribeMultipleItems([
    EasyDAItemSubscriptionArguments('', 'OPCLabs.KitServer.2', 'Simulation.Random', 1000, None),
    EasyDAItemSubscriptionArguments('', 'OPCLabs.KitServer.2', 'Trends.Ramp (1 min)', 1000, None),
    EasyDAItemSubscriptionArguments('', 'OPCLabs.KitServer.2', 'Trends.Sine (1 min)', 1000, None),
    EasyDAItemSubscriptionArguments('', 'OPCLabs.KitServer.2', 'Simulation.Register_I4', 1000, None),
    ])

print('Processing item change notifications for 10 seconds...')
time.sleep(10)

print('Changing item subscriptions...')
client.ChangeMultipleItemSubscriptions([
    DAHandleGroupArguments(handleArray[0], 100),
    DAHandleGroupArguments(handleArray[1], 100),
    ])

print('Processing item change notifications for 10 seconds...')
time.sleep(10)

print('Unsubscribing all items...')
client.UnsubscribeAllItems()

print('Waiting for 10 seconds...')
time.sleep(10)

client.ItemChanged -= itemChanged

print('Finished.')
' This example shows how change the update rate of multiple existing subscriptions.
'
' Find all latest examples here: https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .

Imports System.Threading
Imports OpcLabs.EasyOpc.DataAccess
Imports OpcLabs.EasyOpc.DataAccess.OperationModel

Namespace DataAccess._EasyDAClient

    Partial Friend Class ChangeMultipleItemSubscriptions
        Public Shared Sub Main1()
            Using client = New EasyDAClient()
                AddHandler client.ItemChanged, AddressOf client_ItemChanged

                Console.WriteLine("Subscribing...")
                Dim handle As Integer = client.SubscribeItem("", "OPCLabs.KitServer.2", "Simulation.Random", 1000)
                Dim handleArray() As Integer = client.SubscribeMultipleItems(New DAItemGroupArguments() {
                    New DAItemGroupArguments("", "OPCLabs.KitServer.2", "Simulation.Random", 1000, Nothing),
                    New DAItemGroupArguments("", "OPCLabs.KitServer.2", "Trends.Ramp (1 min)", 1000, Nothing),
                    New DAItemGroupArguments("", "OPCLabs.KitServer.2", "Trends.Sine (1 min)", 1000, Nothing),
                    New DAItemGroupArguments("", "OPCLabs.KitServer.2", "Simulation.Register_I4", 1000, Nothing)
                })

                Console.WriteLine("Waiting for 10 seconds...")
                Thread.Sleep(10 * 1000)

                Console.WriteLine("Changing subscription...")
                client.ChangeMultipleItemSubscriptions(New DAHandleGroupArguments() {
                    New DAHandleGroupArguments(handleArray(0), 100),
                    New DAHandleGroupArguments(handleArray(1), 100)
                })

                Console.WriteLine("Waiting for 10 seconds...")
                Thread.Sleep(10 * 1000)

                Console.WriteLine("Unsubscribing...")
                client.UnsubscribeAllItems()

                Console.WriteLine("Waiting for 10 seconds...")
                Thread.Sleep(10 * 1000)
            End Using
        End Sub

        ' Item changed event handler
        Private Shared Sub client_ItemChanged(ByVal sender As Object, ByVal e As EasyDAItemChangedEventArgs)
            If e.Succeeded Then
                Console.WriteLine(e.Vtq)
            Else
                Console.WriteLine("*** Failure: {0}", e.ErrorMessageBrief)
            End If
        End Sub
    End Class
End Namespace

COM

Rem This example shows how change the update rate of multiple existing subscriptions.
Rem
Rem Find all latest examples here : https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .

Option Explicit

Dim ItemSubscriptionArguments1: Set ItemSubscriptionArguments1 = CreateObject("OpcLabs.EasyOpc.DataAccess.OperationModel.EasyDAItemSubscriptionArguments")
ItemSubscriptionArguments1.ServerDescriptor.ServerClass = "OPCLabs.KitServer.2"
ItemSubscriptionArguments1.ItemDescriptor.ItemID = "Simulation.Random"
ItemSubscriptionArguments1.GroupParameters.RequestedUpdateRate = 1000

Dim ItemSubscriptionArguments2: Set ItemSubscriptionArguments2 = CreateObject("OpcLabs.EasyOpc.DataAccess.OperationModel.EasyDAItemSubscriptionArguments")
ItemSubscriptionArguments2.ServerDescriptor.ServerClass = "OPCLabs.KitServer.2"
ItemSubscriptionArguments2.ItemDescriptor.ItemID = "Trends.Ramp (1 min)"
ItemSubscriptionArguments2.GroupParameters.RequestedUpdateRate = 1000

Dim ItemSubscriptionArguments3: Set ItemSubscriptionArguments3 = CreateObject("OpcLabs.EasyOpc.DataAccess.OperationModel.EasyDAItemSubscriptionArguments")
ItemSubscriptionArguments3.ServerDescriptor.ServerClass = "OPCLabs.KitServer.2"
ItemSubscriptionArguments3.ItemDescriptor.ItemID = "Trends.Sine (1 min)"
ItemSubscriptionArguments3.GroupParameters.RequestedUpdateRate = 1000

Dim ItemSubscriptionArguments4: Set ItemSubscriptionArguments4 = CreateObject("OpcLabs.EasyOpc.DataAccess.OperationModel.EasyDAItemSubscriptionArguments")
ItemSubscriptionArguments4.ServerDescriptor.ServerClass = "OPCLabs.KitServer.2"
ItemSubscriptionArguments4.ItemDescriptor.ItemID = "Simulation.Register_I4"
ItemSubscriptionArguments4.GroupParameters.RequestedUpdateRate = 1000

Dim arguments(3)
Set arguments(0) = ItemSubscriptionArguments1
Set arguments(1) = ItemSubscriptionArguments2
Set arguments(2) = ItemSubscriptionArguments3
Set arguments(3) = ItemSubscriptionArguments4

Dim Client: Set Client = CreateObject("OpcLabs.EasyOpc.DataAccess.EasyDAClient")
WScript.ConnectObject Client, "Client_"

WScript.Echo "Subscribing..."
Dim handleArray: handleArray = Client.SubscribeMultipleItems(arguments)

WScript.Echo "Waiting for 10 seconds..."
WScript.Sleep 10*1000

WScript.Echo "Changing subscriptions..."

Dim HandleGroupArguments1: Set HandleGroupArguments1 = CreateObject("OpcLabs.EasyOpc.DataAccess.OperationModel.DAHandleGroupArguments")
HandleGroupArguments1.Handle = handleArray(0)
HandleGroupArguments1.GroupParameters.RequestedUpdateRate = 100

Dim HandleGroupArguments2: Set HandleGroupArguments2 = CreateObject("OpcLabs.EasyOpc.DataAccess.OperationModel.DAHandleGroupArguments")
HandleGroupArguments2.Handle = handleArray(1)
HandleGroupArguments2.GroupParameters.RequestedUpdateRate = 100

Dim subscriptionChangeArguments(1)
Set subscriptionChangeArguments(0) = HandleGroupArguments1
Set subscriptionChangeArguments(1) = HandleGroupArguments2

Client.ChangeMultipleItemSubscriptions subscriptionChangeArguments

WScript.Echo "Waiting for 10 seconds..."
WScript.Sleep 10*1000

WScript.Echo "Unsubscribing..."
Client.UnsubscribeAllItems

WScript.Echo "Waiting for 10 seconds..."
WScript.Sleep 10*1000

WScript.DisconnectObject Client
Set Client = Nothing



Sub Client_ItemChanged(Sender, e)
    If Not (e.Succeeded) Then
        WScript.Echo "*** Failure: " & e.ErrorMessageBrief
        Exit Sub
    End If

    WScript.Echo e.Vtq
End Sub



Examples for OPC UA:

.NET

// This example shows how change the sampling rate of multiple existing monitored item subscriptions.
//
// Find all latest examples here: https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .

using System;
using OpcLabs.EasyOpc.UA;
using OpcLabs.EasyOpc.UA.OperationModel;

namespace UADocExamples._EasyUAClient
{
    class ChangeMultipleMonitoredItemSubscriptions
    {
        public static void Overload2()
        {
            UAEndpointDescriptor endpointDescriptor =
                "opc.tcp://opcua.demo-this.com:51210/UA/SampleServer";
            // or "http://opcua.demo-this.com:51211/UA/SampleServer" (currently not supported)
            // or "https://opcua.demo-this.com:51212/UA/SampleServer/"

            // Instantiate the client object and hook events.
            var client = new EasyUAClient();
            client.DataChangeNotification += client_DataChangeNotification;

            Console.WriteLine("Subscribing...");
            int[] handleArray = client.SubscribeMultipleMonitoredItems(new[]
                {
                    new EasyUAMonitoredItemArguments(null, endpointDescriptor,
                        "nsu=http://test.org/UA/Data/ ;i=10845", 1000),
                    new EasyUAMonitoredItemArguments(null, endpointDescriptor,
                        "nsu=http://test.org/UA/Data/ ;i=10853", 1000),
                    new EasyUAMonitoredItemArguments(null, endpointDescriptor,
                        "nsu=http://test.org/UA/Data/ ;i=10855", 1000)
                });

            Console.WriteLine("Processing data change events for 10 seconds...");
            System.Threading.Thread.Sleep(10 * 1000);

            Console.WriteLine("Changing subscriptions...");
            client.ChangeMultipleMonitoredItemSubscriptions(handleArray, 100);

            Console.WriteLine("Processing data change events for 10 seconds...");
            System.Threading.Thread.Sleep(10 * 1000);

            Console.WriteLine("Unsubscribing...");
            client.UnsubscribeAllMonitoredItems();

            Console.WriteLine("Waiting for 5 seconds...");
            System.Threading.Thread.Sleep(5 * 1000);

            Console.WriteLine("Finished.");
        }

        static void client_DataChangeNotification(object sender, EasyUADataChangeNotificationEventArgs e)
        {
            // Display value
            if (e.Succeeded)
                Console.WriteLine($"{e.Arguments.NodeDescriptor}: {e.AttributeData.Value}");
            else
                Console.WriteLine($"{e.Arguments.NodeDescriptor} *** Failure: {e.ErrorMessageBrief}");
        }
    }
}
# This example shows how change the sampling rate of multiple existing monitored item subscriptions.
#
# Find all latest examples here: https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .

#requires -Version 5.1
using namespace OpcLabs.EasyOpc.UA
using namespace OpcLabs.EasyOpc.UA.AddressSpace
using namespace OpcLabs.EasyOpc.UA.OperationModel

# The path below assumes that the current directory is [ProductDir]/Examples-NET/PowerShell/Windows .
Add-Type -Path "../../../Components/Opclabs.QuickOpc/net472/OpcLabs.EasyOpcUA.dll"
Add-Type -Path "../../../Components/Opclabs.QuickOpc/net472/OpcLabs.EasyOpcUAComponents.dll"

$endpointDescriptor =
    "opc.tcp://opcua.demo-this.com:51210/UA/SampleServer"
# or "http://opcua.demo-this.com:51211/UA/SampleServer" (currently not supported)
# or "https://opcua.demo-this.com:51212/UA/SampleServer/"

# Instantiate the client object.
$client = New-Object EasyUAClient

# Data change notification handler
Register-ObjectEvent -InputObject $client -EventName DataChangeNotification -Action {
    if ($EventArgs.Succeeded) {
        Write-Host "$($EventArgs.Arguments.NodeDescriptor): $($EventArgs.AttributeData.Value)"
    }
    else {
        Write-Host "$($EventArgs.Arguments.NodeDescriptor) *** Failure: $($EventArgs.ErrorMessageBrief)"
    }
}

Write-Host "Subscribing..."
$handleArray = $client.SubscribeMultipleMonitoredItems(@(
    (New-Object UAMonitoredItemArguments(
        (New-Object UAAttributeArguments($endpointDescriptor, [UANodeDescriptor]"nsu=http://test.org/UA/Data/ ;i=10845")),
        1000)),
    (New-Object UAMonitoredItemArguments(
        (New-Object UAAttributeArguments($endpointDescriptor, [UANodeDescriptor]"nsu=http://test.org/UA/Data/ ;i=10853")),
        1000)),
    (New-Object UAMonitoredItemArguments(
        (New-Object UAAttributeArguments($endpointDescriptor, [UANodeDescriptor]"nsu=http://test.org/UA/Data/ ;i=10855")),
        1000))
    ))

Write-Host "Processing data change events for 10 seconds..."
$stopwatch =  [System.Diagnostics.Stopwatch]::StartNew()
while ($stopwatch.Elapsed.TotalSeconds -lt 10) {
    Start-Sleep -Seconds 1
}

Write-Host "Changing subscriptions..."
[IEasyUAClientExtension]::ChangeMultipleMonitoredItemSubscriptions($client, $handleArray, 100)

Write-Host "Processing data change events for 10 seconds..."
$stopwatch =  [System.Diagnostics.Stopwatch]::StartNew()
while ($stopwatch.Elapsed.TotalSeconds -lt 10) {
    Start-Sleep -Seconds 1
}

Write-Host "Unsubscribing..."
$client.UnsubscribeAllMonitoredItems()

Write-Host "Waiting for 5 seconds..."
Start-Sleep -Seconds 5

Write-Host "Finished."
# This example shows how change the sampling rate of multiple existing monitored item subscriptions.
#
# Find all latest examples here: https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .
# OPC client and subscriber examples in Python on GitHub: https://github.com/OPCLabs/Examples-QuickOPC-Python .
# The QuickOPC package is needed. Install it using "pip install opclabs_quickopc".
import opclabs_quickopc
import time

# Import .NET namespaces.
from OpcLabs.EasyOpc.UA import *
from OpcLabs.EasyOpc.UA.OperationModel import *


def dataChangeNotification(sender, e):
    # Display value
    if e.Succeeded:
        print(e.Arguments.NodeDescriptor, ': ', e.AttributeData.Value, sep='')
    else:
        print(e.Arguments.NodeDescriptor, ' *** Failure: ', e.ErrorMessageBrief, sep='')


endpointDescriptor = UAEndpointDescriptor('opc.tcp://opcua.demo-this.com:51210/UA/SampleServer')
# or 'http://opcua.demo-this.com:51211/UA/SampleServer' (currently not supported)
# or 'https://opcua.demo-this.com:51212/UA/SampleServer/'

# Instantiate the client object and hook events.
client = EasyUAClient()
client.DataChangeNotification += dataChangeNotification

print('Subscribing...')
handleArray = client.SubscribeMultipleMonitoredItems([
    EasyUAMonitoredItemArguments(
        None,
        UAEndpointDescriptor('opc.tcp://opcua.demo-this.com:51210/UA/SampleServer'),
        UANodeDescriptor('nsu=http://test.org/UA/Data/ ;i=10845'),
        UAMonitoringParameters(1000)),
    EasyUAMonitoredItemArguments(
        None,
        UAEndpointDescriptor('opc.tcp://opcua.demo-this.com:51210/UA/SampleServer'),
        UANodeDescriptor('nsu=http://test.org/UA/Data/ ;i=10853'),
        UAMonitoringParameters(1000)),
    EasyUAMonitoredItemArguments(
        None,
        UAEndpointDescriptor('opc.tcp://opcua.demo-this.com:51210/UA/SampleServer'),
        UANodeDescriptor('nsu=http://test.org/UA/Data/ ;i=10855'),
        UAMonitoringParameters(1000)),
    ])

print('Processing data change events for 10 seconds...')
time.sleep(10)

print('Changing subscriptions...')
IEasyUAClientExtension.ChangeMultipleMonitoredItemSubscriptions(client, handleArray, 100)

print('Processing data change events for 10 seconds...')
time.sleep(10)

print('Unsubscribing...')
client.UnsubscribeAllMonitoredItems()

print('Waiting for 5 seconds...')
time.sleep(5)

print('Finished.')
' This example shows how change the sampling rate of multiple existing monitored item subscriptions.
'
' Find all latest examples here: https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .

Imports OpcLabs.EasyOpc.UA
Imports OpcLabs.EasyOpc.UA.OperationModel

Namespace _EasyUAClient
    Friend Class ChangeMultipleMonitoredItemSubscriptions
        Public Shared Sub Overload2()

            ' Define which server we will work with.
            Dim endpointDescriptor As UAEndpointDescriptor =
                    "opc.tcp://opcua.demo-this.com:51210/UA/SampleServer"
            ' or "http://opcua.demo-this.com:51211/UA/SampleServer" (currently not supported)
            ' or "https://opcua.demo-this.com:51212/UA/SampleServer/"

            ' Instantiate the client object and hook events
            Dim client = New EasyUAClient()
            AddHandler client.DataChangeNotification, AddressOf client_DataChangeNotification

            Console.WriteLine("Subscribing...")
            Dim handleArray() As Integer = client.SubscribeMultipleMonitoredItems(New EasyUAMonitoredItemArguments() _
               { _
                   New EasyUAMonitoredItemArguments(Nothing, endpointDescriptor, "nsu=http://test.org/UA/Data/ ;i=10845", 1000), _
                   New EasyUAMonitoredItemArguments(Nothing, endpointDescriptor, "nsu=http://test.org/UA/Data/ ;i=10853", 1000), _
                   New EasyUAMonitoredItemArguments(Nothing, endpointDescriptor, "nsu=http://test.org/UA/Data/ ;i=10855", 1000) _
               })

            Console.WriteLine("Processing monitored item changed events for 10 seconds...")
            Threading.Thread.Sleep(10 * 1000)

            Console.WriteLine("Changing subscriptions...")
            client.ChangeMultipleMonitoredItemSubscriptions(handleArray, 100)

            Console.WriteLine("Processing monitored item changed events for 10 seconds...")
            Threading.Thread.Sleep(10 * 1000)

            Console.WriteLine("Unsubscribing...")
            client.UnsubscribeAllMonitoredItems()

            Console.WriteLine("Waiting for 5 seconds...")
            Threading.Thread.Sleep(5 * 1000)
        End Sub

        Private Shared Sub client_DataChangeNotification(ByVal sender As Object, ByVal e As EasyUADataChangeNotificationEventArgs)
            ' Display value
            If e.Succeeded Then
                Console.WriteLine("{0}: {1}", e.Arguments.NodeDescriptor, e.AttributeData.Value)
            Else
                Console.WriteLine("{0} *** Failure: {1}", e.Arguments.NodeDescriptor, e.ErrorMessageBrief)
            End If
        End Sub
    End Class
End Namespace

COM

// This example shows how change the sampling rate of multiple existing monitored item subscriptions.
//
// Find all latest examples here : https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .


type
  TClientEventHandlers111 = class
    procedure OnDataChangeNotification(
      ASender: TObject;
      sender: OleVariant;
      const eventArgs: _EasyUADataChangeNotificationEventArgs);
  end;

procedure TClientEventHandlers111.OnDataChangeNotification(
  ASender: TObject;
  sender: OleVariant;
  const eventArgs: _EasyUADataChangeNotificationEventArgs);
begin
  // Display the data
  if eventArgs.Succeeded then
      WriteLn(eventArgs.Arguments.NodeDescriptor.ToString, ': ',
      eventArgs.AttributeData.ToString)
  else
      WriteLn(eventArgs.Arguments.NodeDescriptor.ToString, ' *** Failure: ',
      eventArgs.ErrorMessageBrief);
end;

class procedure ChangeMultipleMonitoredItemSubscriptions.Main;
var
  Arguments: OleVariant;
  Client: TEasyUAClient;
  ClientEventHandlers: TClientEventHandlers111;
  Handle: Cardinal;
  HandleArray: OleVariant;
  I: Cardinal;
  MonitoredItemArguments1, MonitoredItemArguments2, MonitoredItemArguments3:
    _EasyUAMonitoredItemArguments;
  OldMonitoringParameters, NewMonitoringParameters: _UAMonitoringParameters;
  SubscriptionChangeArguments: OleVariant;
  SubscriptionChangeArguments1, SubscriptionChangeArguments2, SubscriptionChangeArguments3:
    _EasyUASubscriptionChangeArguments;
begin
  // Instantiate the client object and hook events
  Client := TEasyUAClient.Create(nil);
  ClientEventHandlers := TClientEventHandlers111.Create;
  Client.OnDataChangeNotification := ClientEventHandlers.OnDataChangeNotification;

  WriteLn('Subscribing...');
  OldMonitoringParameters := CoUAMonitoringParameters.Create;
  OldMonitoringParameters.SamplingInterval := 1000;
  MonitoredItemArguments1 := CoEasyUAMonitoredItemArguments.Create;
  MonitoredItemArguments1.EndpointDescriptor.UrlString :=
    //'http://opcua.demo-this.com:51211/UA/SampleServer';
    //'https://opcua.demo-this.com:51212/UA/SampleServer/';
    'opc.tcp://opcua.demo-this.com:51210/UA/SampleServer';
  MonitoredItemArguments1.NodeDescriptor.NodeId.ExpandedText := 'nsu=http://test.org/UA/Data/ ;i=10845';
  MonitoredItemArguments1.MonitoringParameters := OldMonitoringParameters;
  MonitoredItemArguments2 := CoEasyUAMonitoredItemArguments.Create;
  MonitoredItemArguments2.EndpointDescriptor.UrlString :=
    //'http://opcua.demo-this.com:51211/UA/SampleServer';
    //'https://opcua.demo-this.com:51212/UA/SampleServer/';
    'opc.tcp://opcua.demo-this.com:51210/UA/SampleServer';
  MonitoredItemArguments2.NodeDescriptor.NodeId.ExpandedText := 'nsu=http://test.org/UA/Data/ ;i=10853';
  MonitoredItemArguments2.MonitoringParameters := OldMonitoringParameters;
  MonitoredItemArguments3 := CoEasyUAMonitoredItemArguments.Create;
  MonitoredItemArguments3.EndpointDescriptor.UrlString :=
    //'http://opcua.demo-this.com:51211/UA/SampleServer';
    //'https://opcua.demo-this.com:51212/UA/SampleServer/';
    'opc.tcp://opcua.demo-this.com:51210/UA/SampleServer';
  MonitoredItemArguments3.NodeDescriptor.NodeId.ExpandedText := 'nsu=http://test.org/UA/Data/ ;i=10855';
  MonitoredItemArguments3.MonitoringParameters := OldMonitoringParameters;
  Arguments := VarArrayCreate([0, 2], varVariant);
  Arguments[0] := MonitoredItemArguments1;
  Arguments[1] := MonitoredItemArguments2;
  Arguments[2] := MonitoredItemArguments3;

  TVarData(HandleArray).VType := varArray or varVariant;
  TVarData(HandleArray).VArray := PVarArray(
    Client.SubscribeMultipleMonitoredItems(Arguments));

  for I := VarArrayLowBound(HandleArray, 1) to VarArrayHighBound(HandleArray, 1) do
  begin
      Handle := Cardinal(HandleArray[I]);
      WriteLn('HandleArray[', I, ']: ', Handle);
  end;

  WriteLn('Processing monitored item changed events for 10 seconds...');
  PumpSleep(10*1000);

  WriteLn('Changing subscriptions...');
  NewMonitoringParameters := CoUAMonitoringParameters.Create;
  NewMonitoringParameters.SamplingInterval := 100;
  SubscriptionChangeArguments1 := CoEasyUASubscriptionChangeArguments.Create;
  SubscriptionChangeArguments1.Handle := Cardinal(HandleArray[0]);
  SubscriptionChangeArguments1.MonitoringParameters := NewMonitoringParameters;
  SubscriptionChangeArguments2 := CoEasyUASubscriptionChangeArguments.Create;
  SubscriptionChangeArguments2.Handle := Cardinal(HandleArray[1]);
  SubscriptionChangeArguments2.MonitoringParameters := NewMonitoringParameters;
  SubscriptionChangeArguments3 := CoEasyUASubscriptionChangeArguments.Create;
  SubscriptionChangeArguments3.Handle := Cardinal(HandleArray[2]);
  SubscriptionChangeArguments3.MonitoringParameters := NewMonitoringParameters;
  SubscriptionChangeArguments := VarArrayCreate([0, 2], varVariant);
  SubscriptionChangeArguments[0] := SubscriptionChangeArguments1;
  SubscriptionChangeArguments[1] := SubscriptionChangeArguments2;
  SubscriptionChangeArguments[2] := SubscriptionChangeArguments3;

  Client.ChangeMultipleMonitoredItemSubscriptions(SubscriptionChangeArguments);

  WriteLn('Processing monitored item changed events for 10 seconds...');
  PumpSleep(10*1000);

  WriteLn('Unsubscribing...');
  Client.UnsubscribeAllMonitoredItems;

  WriteLn('Waiting for 5 seconds...');
  Sleep(5*1000);

  WriteLn('Finished.');
  VarClear(HandleArray);
  VarClear(Arguments);
  FreeAndNil(Client);
  FreeAndNil(ClientEventHandlers);
end;
Rem This example shows how change the sampling rate of multiple existing monitored item subscriptions.
Rem
Rem Find all latest examples here : https://opclabs.doc-that.com/files/onlinedocs/OPCLabs-OpcStudio/Latest/examples.html .

' Instantiate the client object and hook events
Dim Client: Set Client = CreateObject("OpcLabs.EasyOpc.UA.EasyUAClient")
WScript.ConnectObject Client, "Client_"

WScript.Echo "Subscribing..."
Dim OldMonitoringParameters: Set OldMonitoringParameters = CreateObject("OpcLabs.EasyOpc.UA.UAMonitoringParameters")
OldMonitoringParameters.SamplingInterval = 1000
Dim MonitoredItemArguments1: Set MonitoredItemArguments1 = CreateObject("OpcLabs.EasyOpc.UA.OperationModel.EasyUAMonitoredItemArguments")
MonitoredItemArguments1.EndpointDescriptor.UrlString = "opc.tcp://opcua.demo-this.com:51210/UA/SampleServer"
MonitoredItemArguments1.NodeDescriptor.NodeId.ExpandedText = "nsu=http://test.org/UA/Data/ ;i=10845"
MonitoredItemArguments1.MonitoringParameters = OldMonitoringParameters
Dim MonitoredItemArguments2: Set MonitoredItemArguments2 = CreateObject("OpcLabs.EasyOpc.UA.OperationModel.EasyUAMonitoredItemArguments")
MonitoredItemArguments2.EndpointDescriptor.UrlString = "opc.tcp://opcua.demo-this.com:51210/UA/SampleServer"
MonitoredItemArguments2.NodeDescriptor.NodeId.ExpandedText = "nsu=http://test.org/UA/Data/ ;i=10853"
MonitoredItemArguments2.MonitoringParameters = OldMonitoringParameters
Dim MonitoredItemArguments3: Set MonitoredItemArguments3 = CreateObject("OpcLabs.EasyOpc.UA.OperationModel.EasyUAMonitoredItemArguments")
MonitoredItemArguments3.EndpointDescriptor.UrlString = "opc.tcp://opcua.demo-this.com:51210/UA/SampleServer"
MonitoredItemArguments3.NodeDescriptor.NodeId.ExpandedText = "nsu=http://test.org/UA/Data/ ;i=10855"
MonitoredItemArguments3.MonitoringParameters = OldMonitoringParameters
Dim arguments(2)
Set arguments(0) = MonitoredItemArguments1
Set arguments(1) = MonitoredItemArguments2
Set arguments(2) = MonitoredItemArguments3
Dim handleArray: handleArray = Client.SubscribeMultipleMonitoredItems(arguments)

Dim i: For i = LBound(handleArray) To UBound(handleArray)
    WScript.Echo "handleArray(" & i & "): " & handleArray(i)
Next

WScript.Echo "Processing monitored item changed events for 10 seconds..."
WScript.Sleep 10 * 1000

WScript.Echo "Changing subscriptions..."
Dim NewMonitoringParameters: Set NewMonitoringParameters = CreateObject("OpcLabs.EasyOpc.UA.UAMonitoringParameters")
NewMonitoringParameters.SamplingInterval = 100
Dim SubscriptionChangeArguments1: Set SubscriptionChangeArguments1 = CreateObject("OpcLabs.EasyOpc.UA.OperationModel.EasyUASubscriptionChangeArguments")
SubscriptionChangeArguments1.Handle = handleArray(0)
Set SubscriptionChangeArguments1.MonitoringParameters = NewMonitoringParameters
Dim SubscriptionChangeArguments2: Set SubscriptionChangeArguments2 = CreateObject("OpcLabs.EasyOpc.UA.OperationModel.EasyUASubscriptionChangeArguments")
SubscriptionChangeArguments2.Handle = handleArray(1)
Set SubscriptionChangeArguments2.MonitoringParameters = NewMonitoringParameters
Dim SubscriptionChangeArguments3: Set SubscriptionChangeArguments3 = CreateObject("OpcLabs.EasyOpc.UA.OperationModel.EasyUASubscriptionChangeArguments")
SubscriptionChangeArguments3.Handle = handleArray(2)
Set SubscriptionChangeArguments3.MonitoringParameters = NewMonitoringParameters
Dim subscriptionChangeArguments(2)
Set subscriptionChangeArguments(0) = SubscriptionChangeArguments1
Set subscriptionChangeArguments(1) = SubscriptionChangeArguments2
Set subscriptionChangeArguments(2) = SubscriptionChangeArguments3
Client.ChangeMultipleMonitoredItemSubscriptions subscriptionChangeArguments

WScript.Echo "Processing monitored item changed events for 10 seconds..."
WScript.Sleep 10 * 1000

WScript.Echo "Unsubscribing..."
Client.UnsubscribeAllMonitoredItems

WScript.Echo "Waiting for 5 seconds..."
WScript.Sleep 5 * 1000



Sub Client_DataChangeNotification(Sender, e)
    ' Display the data
    Dim display: If e.Exception Is Nothing Then display = e.AttributeData Else display = e.ErrorMessageBrief
    WScript.Echo e.Arguments.NodeDescriptor & ":" & display
End Sub



Events

It is not necessary to unsubscribe and then subscribe again if you want to change parameters of existing subscription, such as its sampling interval, or the event filter. Instead, change the parameters by calling the ChangeMonitoredItemSubscription method, passing it the subscription handle, and the new parameters.

For changing parameters of multiple subscriptions in an efficient manner, call the ChangeMultipleMonitoredItemSubscriptions method.



Inheritance Hierarchy

System.Object
   OpcLabs.BaseLib.Object2
      OpcLabs.BaseLib.Info
         OpcLabs.BaseLib.OperationModel.OperationArguments
            OpcLabs.BaseLib.OperationModel.HandleArguments
               OpcLabs.EasyOpc.UA.OperationModel.EasyUASubscriptionChangeArguments

Requirements

Target Platforms: .NET Framework: Windows 10 (selected versions), Windows 11 (selected versions), Windows Server 2016, Windows Server 2022; .NET: Linux, macOS, Microsoft Windows

See Also
